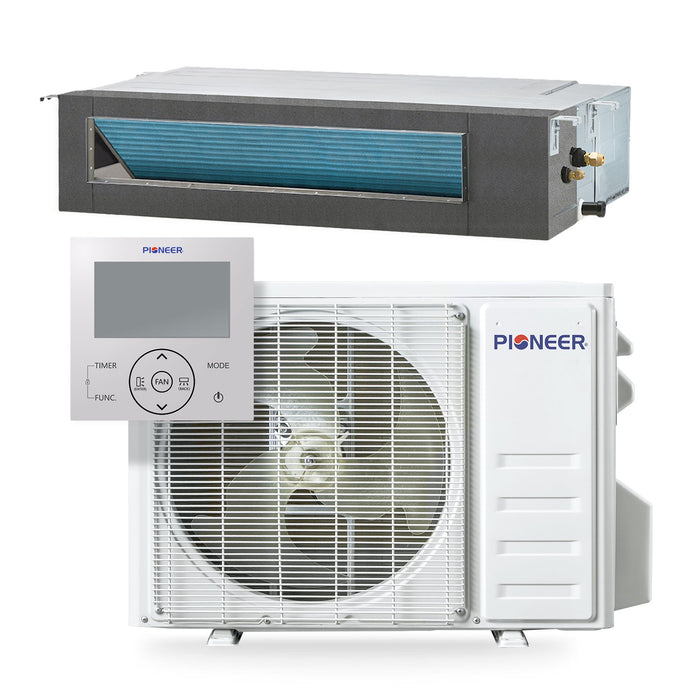

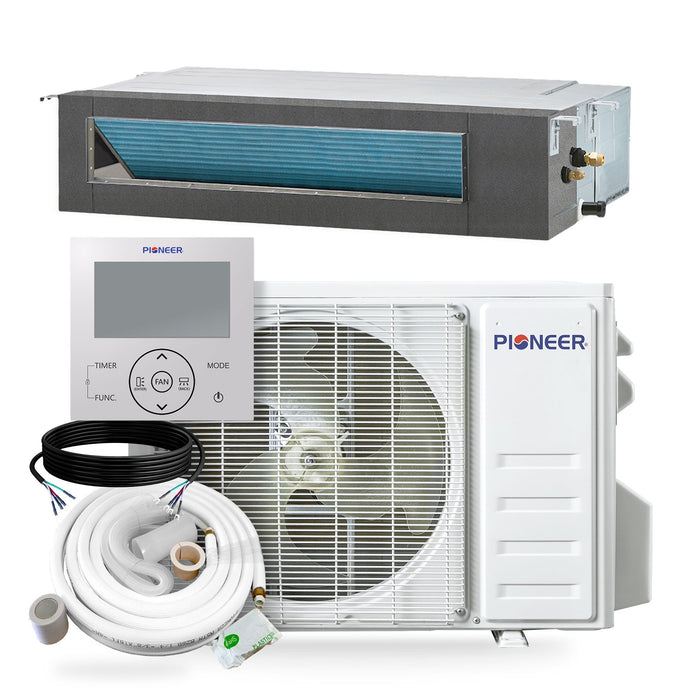

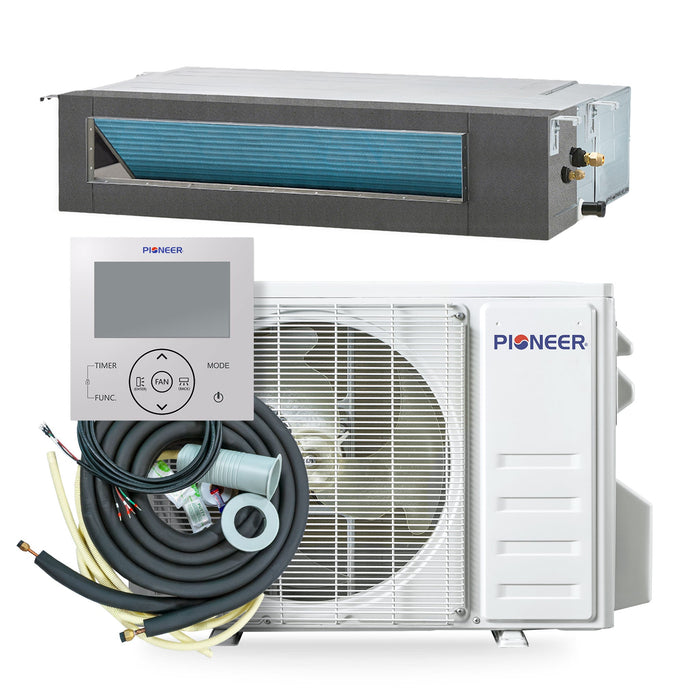

Pioneer® Quantum Ultra™ 18,000 BTU 21 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set

Pioneer® Quantum Ultra™ 18,000 BTU 21 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set
Save 30% Save 26%
$2,379.00
$2,379.00 - $2,379.00
$2,379.00
$1,749.00
$1,668.00 - $1,984.00
$1,749.00
✓ Authorized Pioneer Dealer
✓ Lowest Price Guaranteed
✓ Brand New: In Stock Ready To Ship
✓ Questions? Talk to a Pioneer Expert: 1-303-876-7654
✓ PRICE MATCH GUARANTEE


Renewable Outdoors LLC BBB Business Review

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

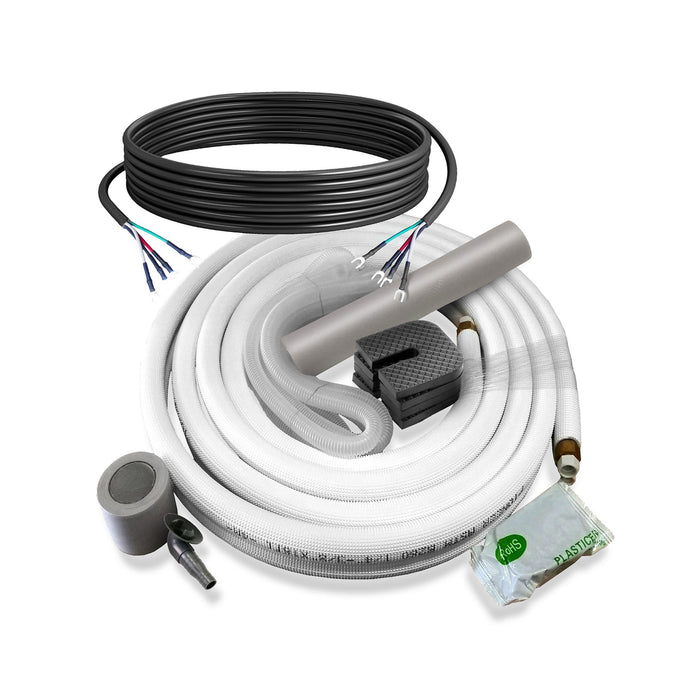

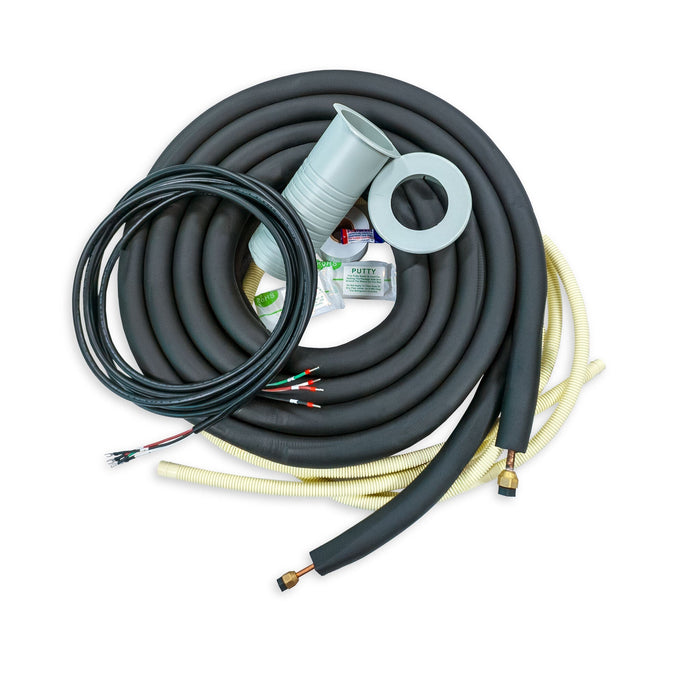

Include System Installation Kit: Add Standard Copper Lineset
Installation Kit Length: 10 Ft.

Summary

  • High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
  • Cooling capacity: 17,000 BTU/H with 21 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 18,000 BTU/H with 8.1 HSPF2 / 2.9 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 17,000 BTU/h
    • Cooling Capacity Range: 6,000~19,400 BTU/h
    • Cooling SEER2: 21.0 BTU/W.h
    • Cooling EER2: 11.7 BTU/W.h
    • Heating Rated Capacity: 18,000 BTU/h
    • Heating Capacity Range: 4,000~21,400 BTU/h
    • Heating HSPF2 (Region IV): 8.1 / 7.2 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 2.9 / 1.8 W/W
    • Refrigerant Type: R454b
    • Suitable Area: 500~750 Sq.F
    • AHRI Reference: 217048764
  • Indoor Unit
    • Part Number: RT018GLSILCFHG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 500/426/370/300/283 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 41/38/36 dB(A)
    • Product Dimensions (WDH): 35"-1/2 x 19"-1/4 x 7"-7/8 Inches
    • Carton Dimensions (WDH): 44"-1/8 x 21"-7/8 x 9"-7/8 Inches
    • Net / Gross Weight: 39.7 / 46.3 lbs.

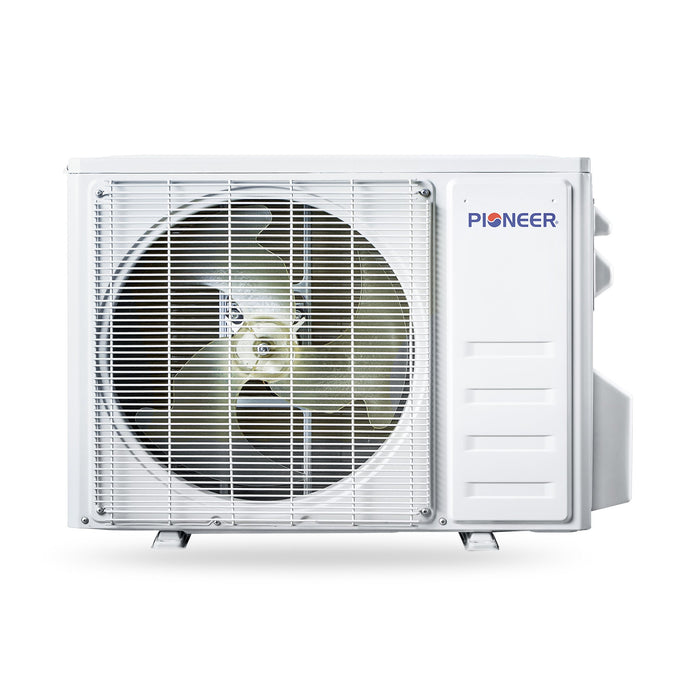

  • Outdoor Unit
    • Part Number: YN018GLSI24RPG
    • Breaker Needed: 20A (double-pole)
    • Sound Level: 53 dB(A)
    • Net Dimensions (WDH): 36"-1/2 x 15" x 27"-1/2 Inches
    • Carton Dimensions (WDH): 37"-3/8 x 16"-1/2 x 28"-7/8 Inches
    • Net / Gross Weight: 90.4 / 97.0 lbs.

Dimension Chart

35½ 19¼ 7⅞ 36½ 15 27½ 2¼ ¾ 8½
