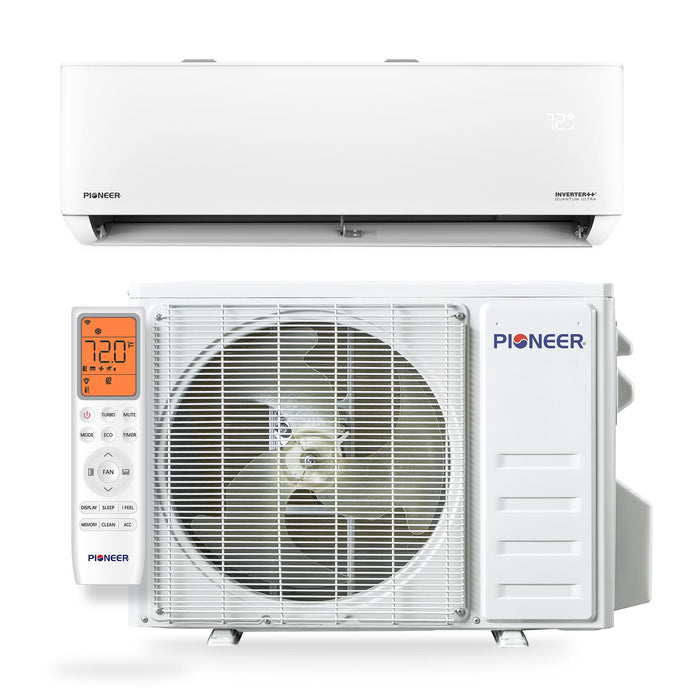

Pioneer® Quantum Ultra™ 9,000 BTU 24 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set

Pioneer® Quantum Ultra™ 9,000 BTU 24 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set
Save 30% Save 25%
$1,399.00
$1,399.00 - $1,399.00
$1,399.00
$1,053.00
$978.00 - $1,260.00
$1,053.00
✓ Authorized Pioneer Dealer
✓ Lowest Price Guaranteed
✓ Brand New: In Stock Ready To Ship
✓ Questions? Talk to a Pioneer Expert: 1-303-876-7654
✓ PRICE MATCH GUARANTEE


Renewable Outdoors LLC BBB Business Review

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

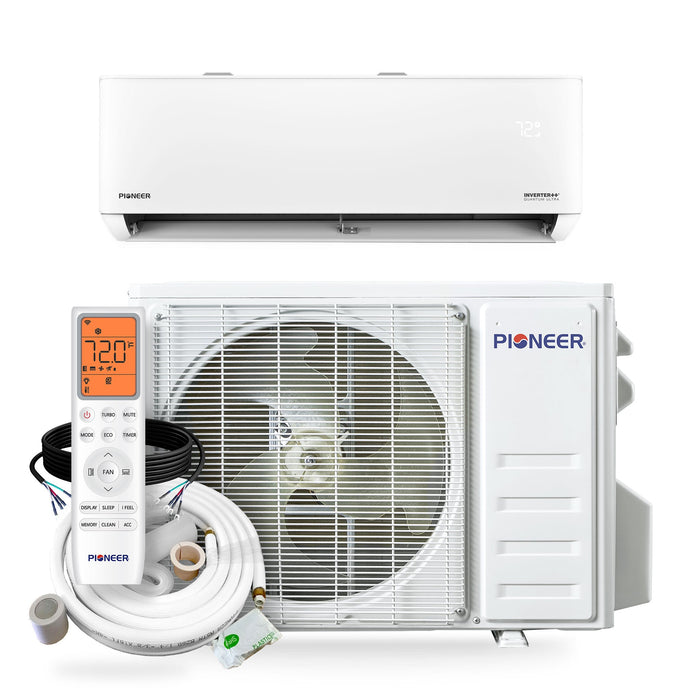

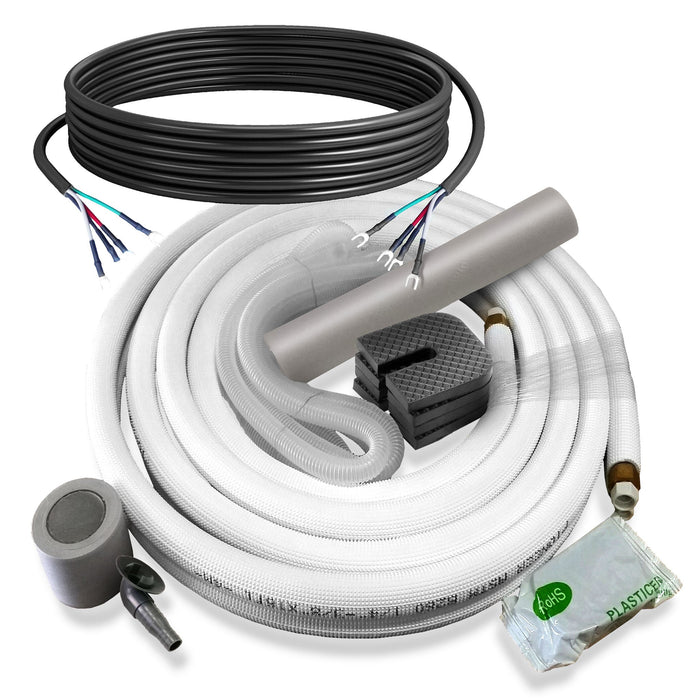

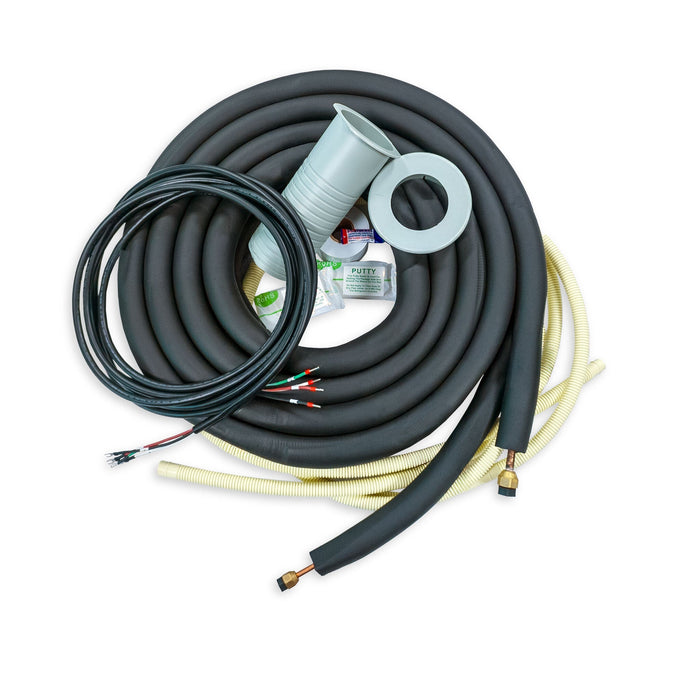

Include System Installation Kit: Add Standard Copper Lineset
Installation Kit Length: 10 Ft.

Summary

  • Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
  • Cooling capacity: 9,000 BTU/H with 24 SEER2 / 13 EER2 efficiency
  • Heating capacity: 10,000 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System

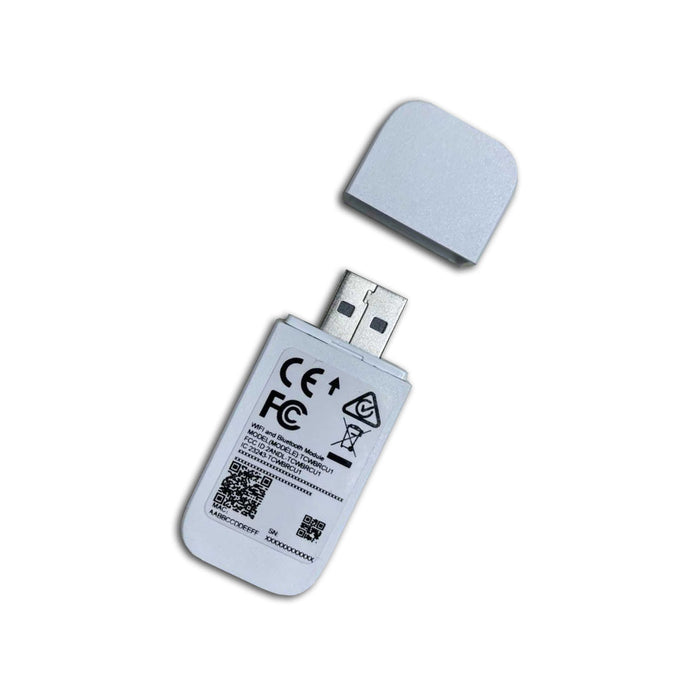

  • Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

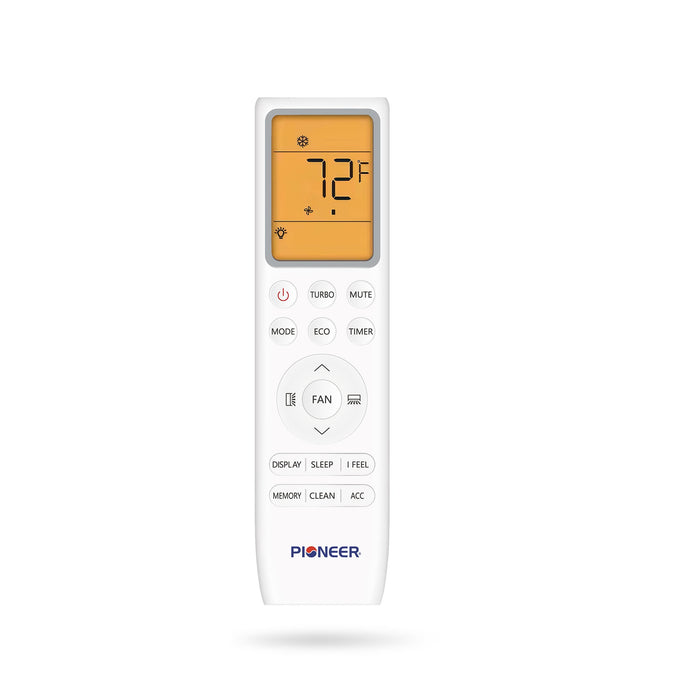

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

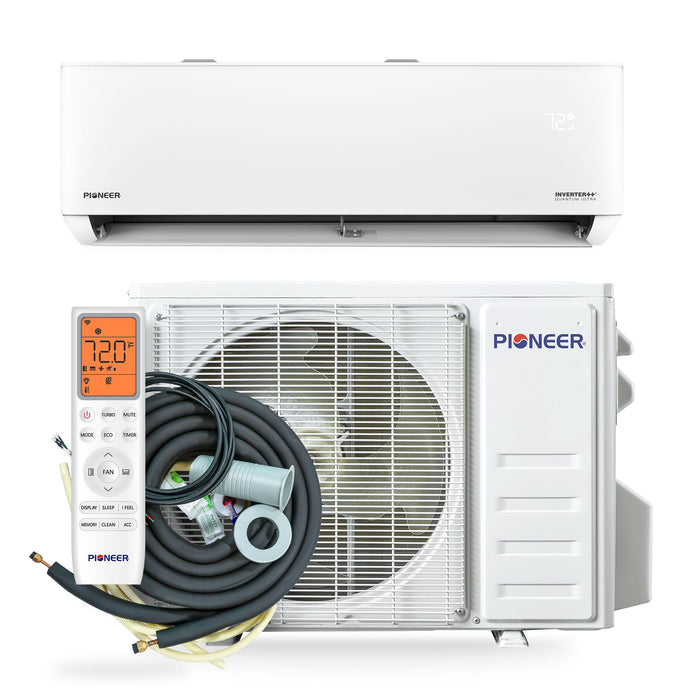

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 9,000 BTU/h
    • Cooling Capacity Range: 2,400~11,000 BTU/h
    • Cooling SEER2: 24.0 BTU/W.h
    • Cooling EER2: 13.0 BTU/W.h
    • Heating Rated Capacity: 10,000 BTU/h
    • Heating Capacity Range: 2,400~11,000 BTU/h
    • Heating HSPF2 (Region IV): 10.0 / 8.6 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
    • Refrigerant Type: R454b
    • Recommended Room Size: 150~350 Sq.F
    • Minimum Room Size: 28 sq ft
    • Minimum Installation Height: 6 ft
    • Piping Diameter: 1/4 x 3/8"
    • AHRI Reference: 217048749

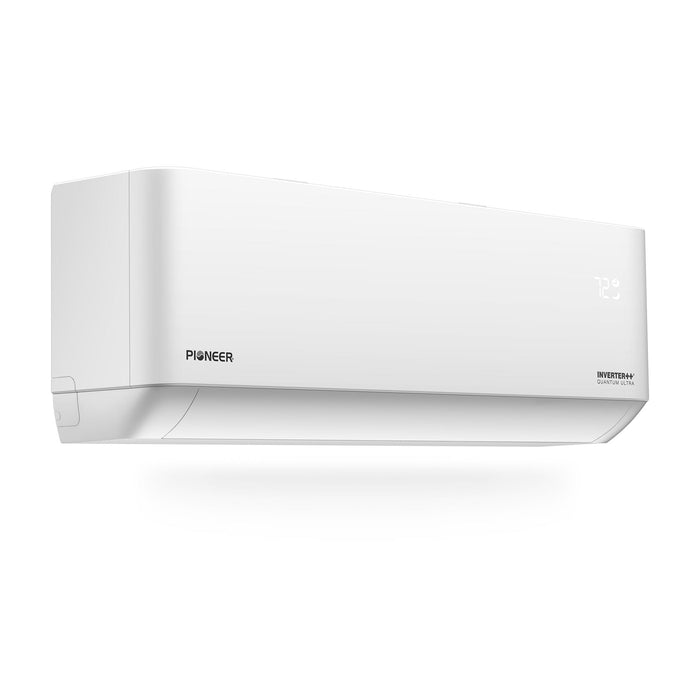

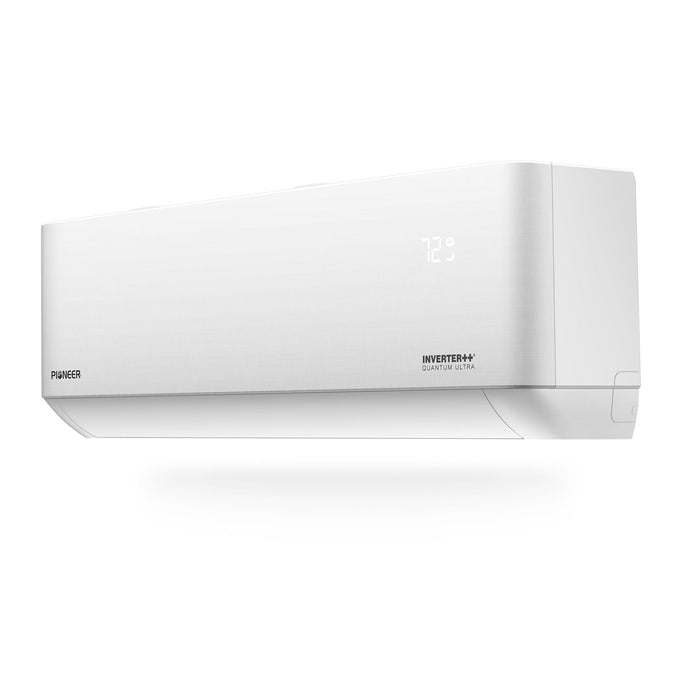

  • Indoor Unit
    • Part Number: WT009GLSI24HLG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282.5/235/188/153 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
    • Product Dimensions (WDH): 32"-1/4 x 7"-5/8 x 12" Inches
    • Carton Dimensions (WDH): 35" x 10"-1/2 x 15" Inches
    • Net / Gross Weight: 20.7 / 25.1 lbs.

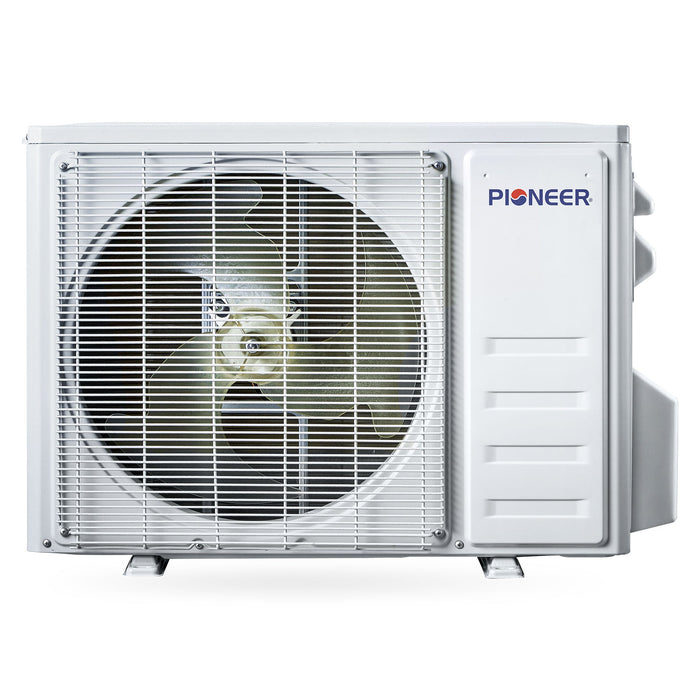

  • Outdoor Unit
    • Part Number: YN009GLSI24RPG
    • Breaker Needed: 15A (double-pole)
    • Sound Level: 50 dB(A)
    • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
    • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
    • Net / Gross Weight: 52.7 / 59.3 lbs.

Dimension Chart

32¼ 7⅝ 12 31⅞ 12 21⅝ 2¼ ¾ 8½
