Pioneer® 10,000 BTU 115V Under-Bench RV Inverter Heat Pump Air Conditioner

Pioneer® 10,000 BTU 115V Under-Bench RV Inverter Heat Pump Air Conditioner
Save 30% Save 30%
$1,997.00
$1,997.00 - $1,997.00
$1,997.00
$1,398.00
$1,398.00 - $1,398.00
$1,398.00
✓ Authorized Pioneer Dealer
✓ Lowest Price Guaranteed
✓ Brand New: In Stock Ready To Ship
✓ Questions? Talk to a Pioneer Expert: 1-303-876-7654
✓ PRICE MATCH GUARANTEE


Renewable Outdoors LLC BBB Business Review

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

Overview

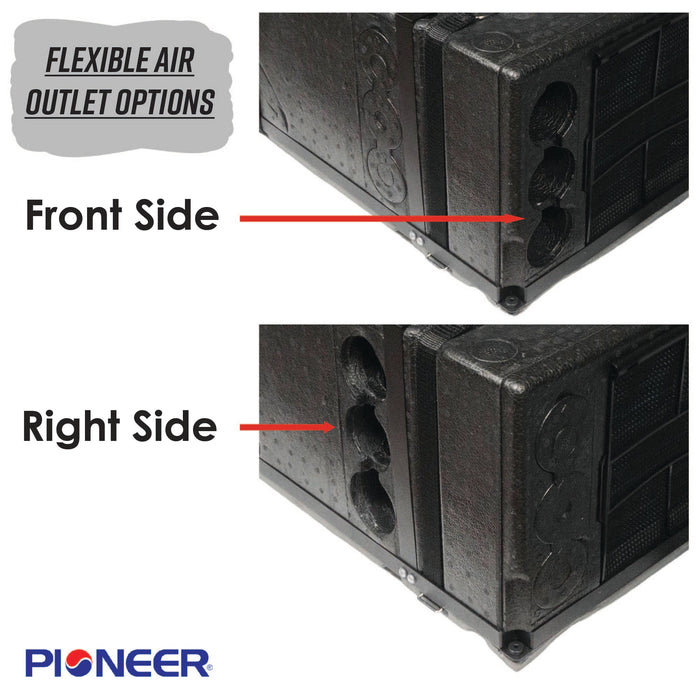

Explore the great open road with Pioneer's newest RV heat pump air conditioner package unit.  Intended for under-the-bench installations, this low-profile and highly durable package system will keep your motor vehicle at a cozy temperature all year round, and do so quietly. Easily attach three ducts to serve separate areas of the dwelling, with options to connect to the front or side of the system. Control the system using the wall-fixed thermostat, or from the comfort of your bed using the convenient handheld remote controller. With ultra-quiet performance, sleek design, and very low input power requirements, this rugged plug-in system will be one of your favorite companions on those long-haul journeys, day-in and day-out.

Summary

    • Cooling capacity: 10,000 BTU/H with 10.1 EER efficiency
    • Heating capacity: 9,500 BTU/H with 3.5 C.O.P.
    • Voltage: 110~120V, 60Hz, 1Ph
    • Operational Temperature Range: 19 - 104°F
    • Pre-charged with R32 refrigerant and ready to install
    • UL Listed
    • Perfect for RVs, Skoolies, Tiny Homes, Camper Vans, or any home on wheels

    What's Included

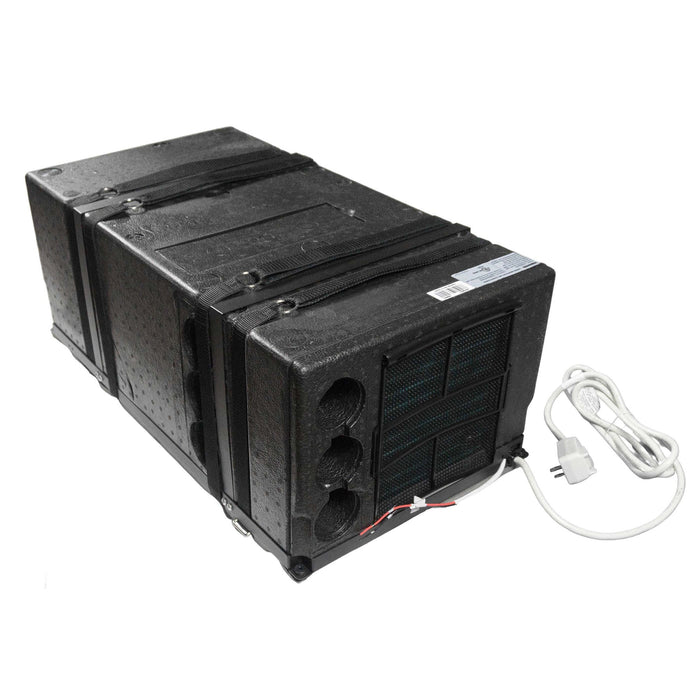

    • Pioneer RV Under-Bench Heat Pump AC System

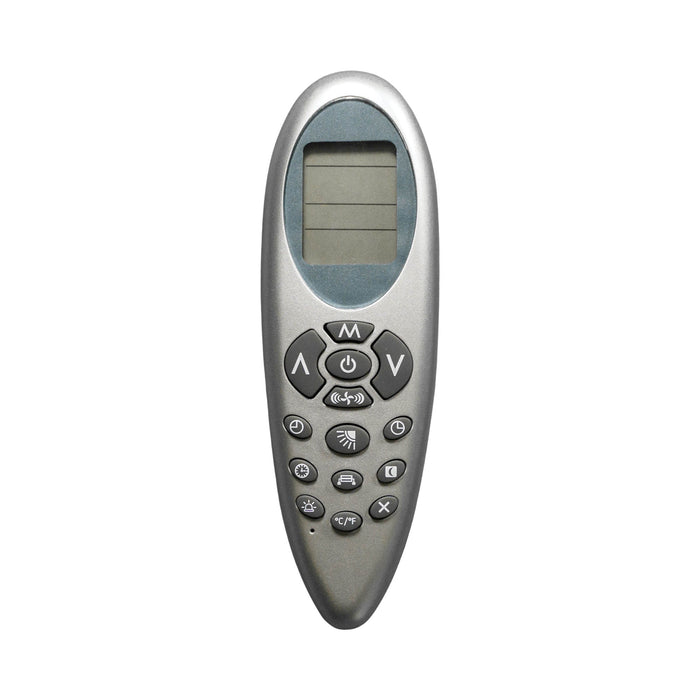

    • Handheld Remote Controller w/ batteries and cradle

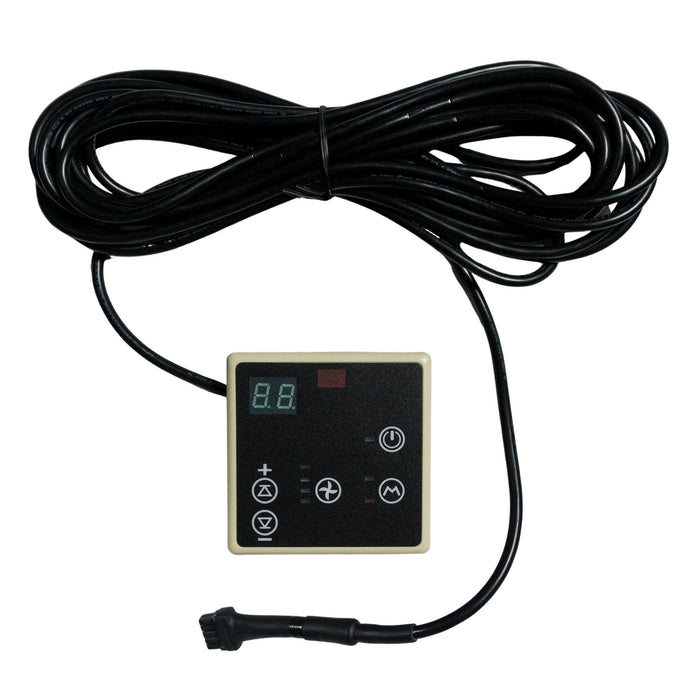

    • Wired Thermostat w/ cradle

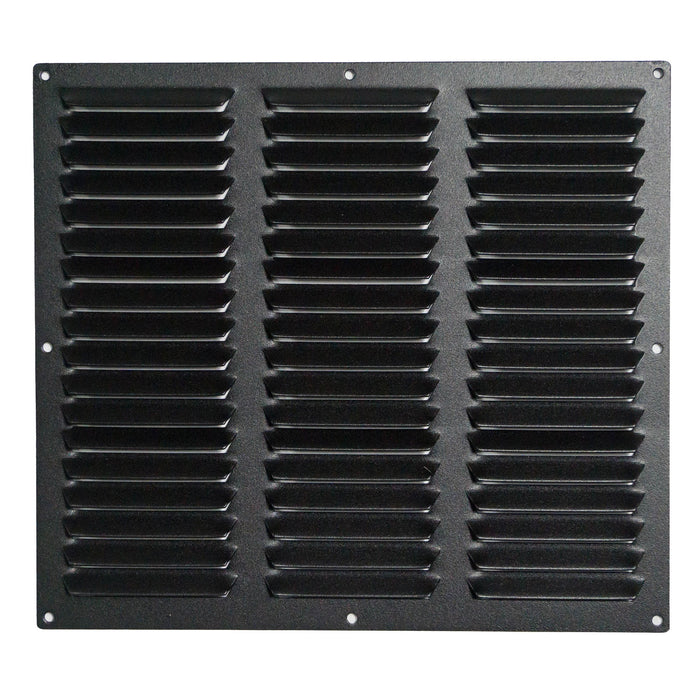

    • Highly Durable Metallic Return Air Grille
    • Drainage Tubing
    • Installation Hardware
    • Installation and User's Manual

    Our Guarantee

    • 3 year parts limited warranty
    • 5 year compressor limited warranty

    Technical Information

    Performance Data

    • Power Supply: 110~120V, 60Hz, 1Ph
    • Cooling Rated Capacity: 10,000 BTU/h
    • Cooling EER: 10.1 BTU/w.hr
    • Maximum Cooling Consumption: 8.6A / 989W
    • Heating Rated Capacity: 9,500 BTU/h
    • Heating C.O.P.:  3.51 W/W
    • Maximum Heating Consumption: 6.9A / 794W
    • Refrigerant Type: R32
    • Suitable Volume: 1,060 m3
    • Fan Speeds: 3 (Low/Med/High)

    Unit Physical Data

    • Treated Volume of Air (Max): 206 CFM
    • Water Protection Class: IPX-5
    • Noise Level: <40 dB(A)
    • Weight: 61 lbs
    • Dimensions (LDH): 28"-7/8 x 16" x 11"-5/8

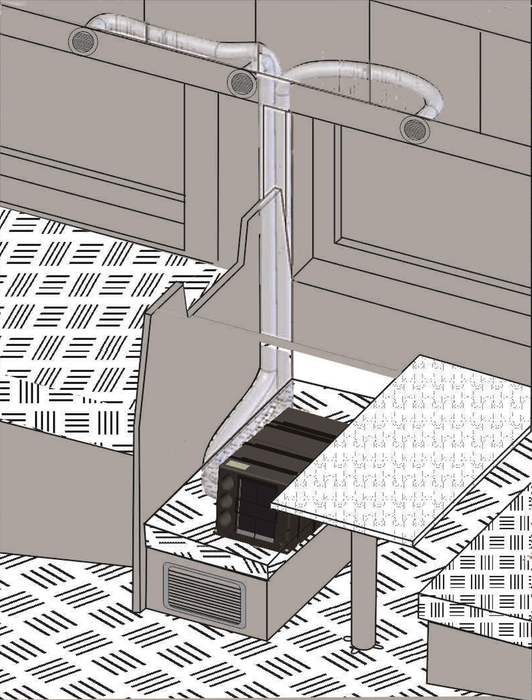

    Typical Installation

    Typical Installation Example of RV Heat Pump

    Product Documentation
