Stealth 12,000 BTU 22.5 SEER Single Zone Wall Mount Mini Split System

Stealth 12,000 BTU 22.5 SEER Single Zone Wall Mount Mini Split System
Save 61% Save 61%
$3,087.52
$3,087.52 - $3,087.52
$3,087.52
$1,189.99
$1,189.99 - $1,189.99
$1,189.99
✓ Authorized Stealth Dealer
✓ Lowest Price Guaranteed
✓ Brand New & FREE Shipping: In Stock Ready To Ship
✓ Questions? Talk to a Stealth Expert: 1-303-876-7654
✓ PRICE MATCH GUARANTEE


Renewable Outdoors LLC BBB Business Review

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

Stealth 12,000 BTU Solar-Ready Wall-Mount Mini-Split System (R32 – 115V)

The Stealth Solar-Ready Hybrid 12,000 BTU mini-split offers dependable heating and cooling all year while giving you more control over how you power it. Built to operate on standard AC electricity or direct DC solar input, it can automatically transition between grid power and solar as needed. It’s a smart choice for homeowners or small commercial spaces looking to reduce energy costs and integrate solar capability without sacrificing comfort or efficiency.

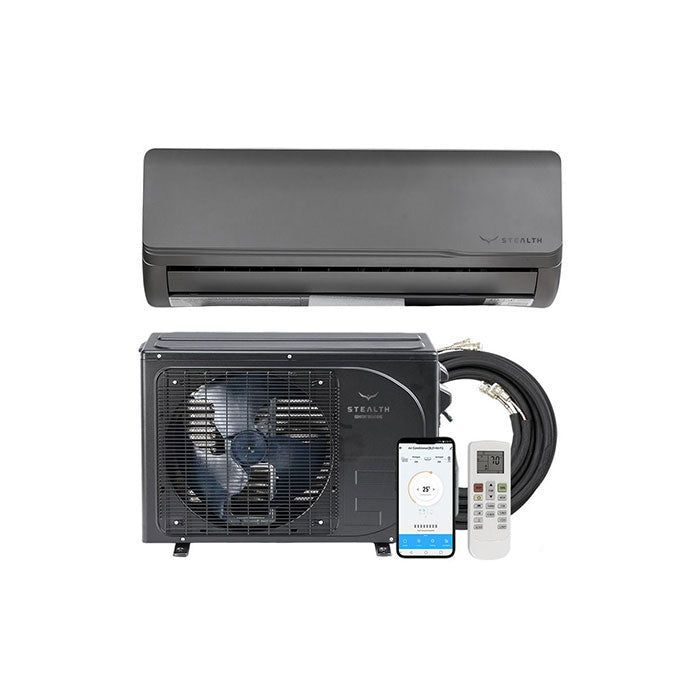

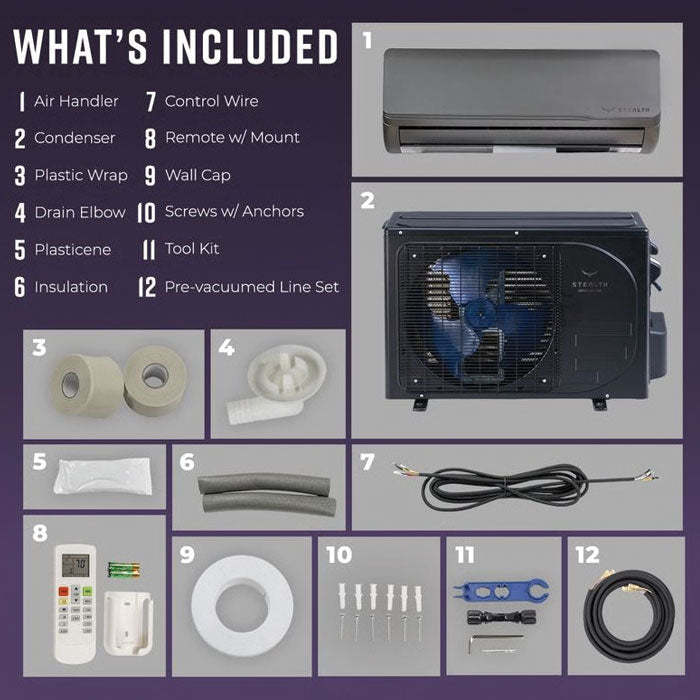

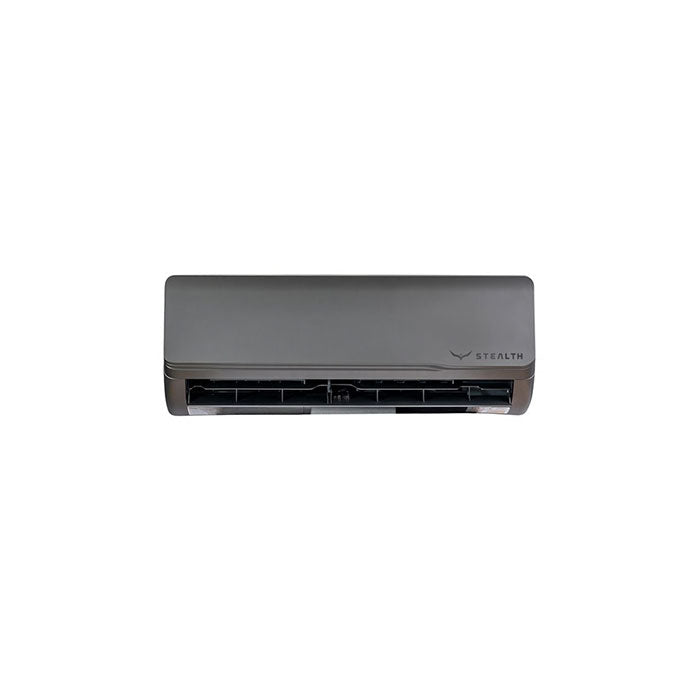

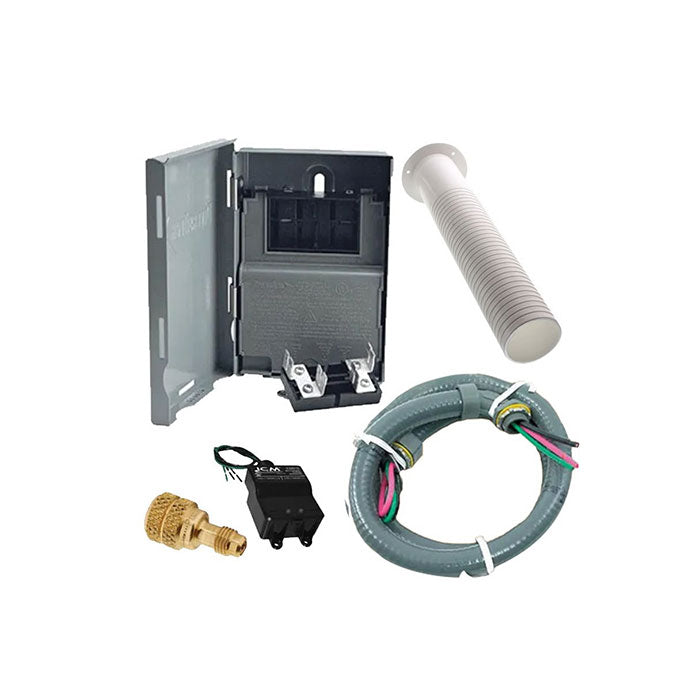

Includes: Indoor air handler, Outdoor condenser unit, 16.4 ft line set and interconnect wiring, Mounting bracket and accessory kit, LCD remote control

Solar Panels Not Included


Stealth 12,000 BTU Mini Split Specs

  • Weight: 81.57 lbs
  • Maximum Line Set Length: 98'
  • Minimum Line Set Length: 10'
  • Drain: 5/8"
  • HSPF: 9.7
  • Cooling BTU: 12,000
  • Heating BTU: 12,000
  • Maximum CFM: 1060 CFM
  • Decibel Level: 52 dB(A)
  • Refrigerant: R32
  • SEER: 18-20
  • EER: 12.6
  • Compressor Type: Rotary
  • Liquid Line: 1/4"
  • Suction Line: 3/8"
  • Electrical: 115V 1 Phase 60 Hz
  • Electric Phase Filter: Single Phase
  • Max Breaker Size: 20 Amps
  • Min. Breaker Size: 19.05 Amps
  • BTU/Tonnage: 12,000 BTU/1 Ton
  • Mini Split Type: Wall Mounted
  • Zone Compatibility: Single Zone

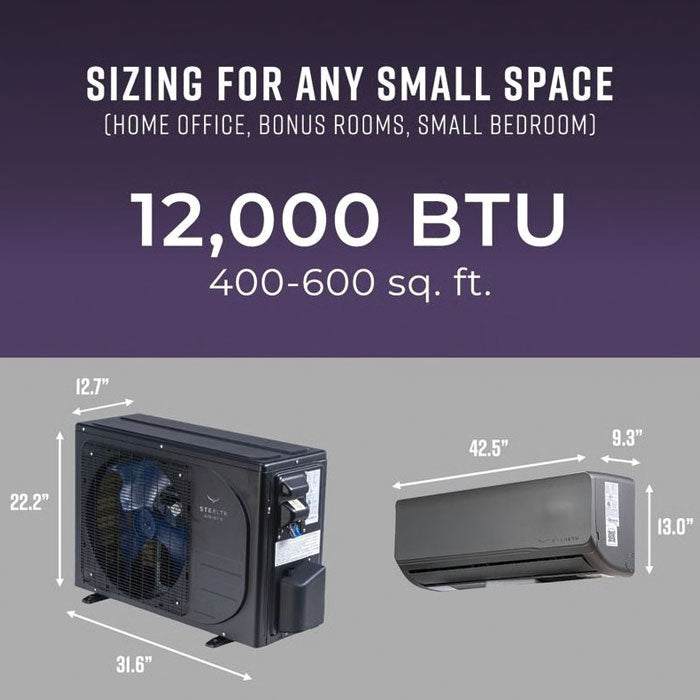

  • Dimensions (HxWxD): 22.20" x 31.57" x 12.72"

Stealth 12,000 BTU Mini Split Features

Designed for Solar Power with Optional Grid Use: Runs efficiently on solar or grid power—or both—with no batteries or inverters required.

  • Hybrid design accepts 115V AC and 90–380V DC input directly into the outdoor unit
  • Automatically prioritizes solar when available to reduce grid reliance
  • MC4-compatible solar inputs eliminate the need for additional solar equipment
  • Built-in AC power limiter (adjustable from 0 to 600W) for energy use control
  • Capable of operating off-grid during daylight with sufficient solar input

Efficient Year-Round Temperature Management: Delivers consistent climate control in a variety of environments.

  • 12,000 BTU cooling and heating capacity
  • SEER2 rating of 22.5 / HSPF2 rating of 10.5 for exceptional efficiency
  • Operates in outdoor temperatures from 5°F to 131°F
  • Uses eco-friendly R32 refrigerant for reduced environmental impact

Installer-Friendly Engineering: Engineered for quick, professional installation with minimal on-site prep.

  • Includes pre-vacuumed 16.4 ft refrigerant line set
  • Quick-connect solar terminals on outdoor unit

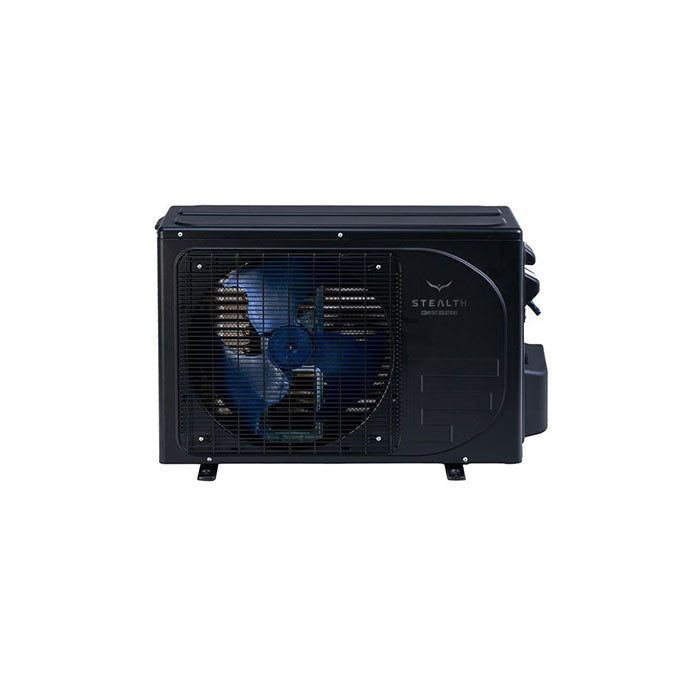

  • Compact outdoor condenser (approx. 110 lbs) for flexible placement
  • Indoor unit designed for quiet operation with modern aesthetics

Your Satisfaction with Stealth is Guaranteed:

  • 6-Year Compressor Warranty
  • 4-Year Parts Warranty with Registration
  • Free Shipping & Lowest Price Guarantee
