Sol-Ark 18K-2P + EG4 16kWh Battery Bundle | 18kW Backup

Sol-Ark 18K-2P + EG4 16kWh Battery Bundle | 18kW Backup
$11,299.00 - $11,299.00
$11,299.00
$11,299.00 - $11,299.00
$11,299.00
✓ Authorized Sol-Ark Dealer
✓ Lowest Price Guaranteed
✓ Brand New and Fast Shipping: In Stock Ready To Ship
✓ Questions? Talk to a Sol-Ark Expert: 1-303-876-7654
✓ PRICE MATCH GUARANTEE


Renewable Outdoors LLC BBB Business Review

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

18kW Inverter · 16kWh Battery · 28.8kW Solar Ready · 36kVA Surge · 10-Year Warranties

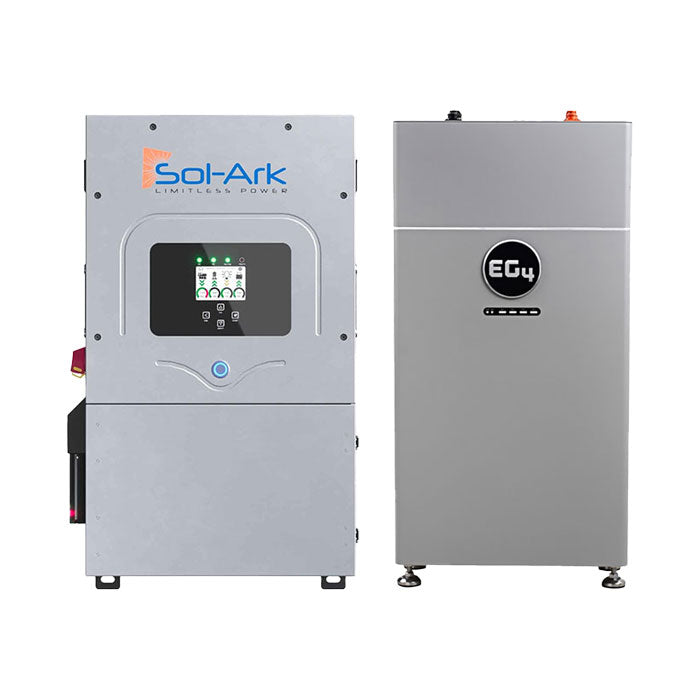

Sol-Ark 18K-2P Hybrid Inverter + EG4 48V 314Ah 16kWh Wall-Mount Battery Bundle

Sol-Ark's largest residential inverter paired with EG4's 16kWh wall-mount battery. The 18K-2P delivers 18,000W continuous directly from storage with 36kVA of ten-second surge — the headroom that actually starts a central air conditioner and a well pump during an outage rather than tripping trying.

Three MPPTs take 28.8kW of usable solar, with AC coupling pushing total PV support past 40kW, and a 350A charger refills the bank fast. The EG4 battery contributes 16kWh of LFP rated for 10,000 cycles, communicating with the inverter over CAN/RS485. Renewable Outdoors is an authorized dealer for both — call us at (303) 876-7654 and we'll size the bank against your loads.

Sol-Ark 18K-2P Hybrid Inverter with EG4 16kWh WallMount Battery
10-Year Warranty
Lowest Price Guarantee
Authorized Sol-Ark Dealer
Free Shipping
0% APR Financing
Expert Support: (303) 876-7654

Why This Bundle

18kW Continuous from Battery

Runs a large house off storage alone — HVAC, well pump, range and everything else together.

36kVA Surge for 10 Seconds

Motor startup is where backup systems fail. This has the headroom for compressors and pumps off-grid.

16kWh, 12.86kWh Usable

EG4 LFP rated for 10,000 cycles at 80% depth of discharge, with 200A continuous discharge.

28.8kW Solar, 40kW+ AC Coupled

Three MPPTs at 36A each across six DC ports — among the highest PV capacity of any residential inverter.

350A Charger, BMS Comms

Refills a large bank fast, with CAN/RS485 communication for accurate state of charge.

Room to Grow

Two 48V battery ports and support for up to 32 EG4 units in parallel as the system expands.

What's Included

Sol-Ark 18K-2P and EG4 battery bundle contents

In the Bundle

  • 1 × Sol-Ark 18K-2P hybrid inverter, pre-wired
  • 1 × EG4 48V 314Ah 16kWh indoor wall-mount battery
  • Current transformers for grid sensing
  • Mounting hardware for both units
  • Installation manuals and warranty documentation

Solar panels, racking, battery cables, disconnects, conduit and installation labour are separate. The battery is IP20 and mounts indoors on structure rated for 293 lbs. With 18kW of inverter capacity, most installations end up wanting more than one battery — call us at (303) 876-7654 and we'll size it honestly.

Sol-Ark 18K-2P Inverter Specifications

Continuous AC Output 18,000W at 240V; 15,600W at 120/208V
Peak Surge (10 seconds) 36,000W at 240V
Output Voltage 120/240V or 120/208V
Maximum Output Current 75A
Grid Passthrough Current 200A
Maximum Usable PV Power 28,800W
Maximum Rated PV Power (STC) 32,400W
AC Coupling Supported — over 40kW total PV in AC-coupled configuration
Maximum PV Input Voltage 500V
MPPT Trackers 3, with 2 strings each — 6 DC solar ports
Maximum Current per MPPT 36A
Battery Ports 2 × 48V
Maximum Charge / Discharge Current 350A / 350A
Transfer Time 5ms
Peak Efficiency 97.6%
Parallel Capability Up to 12 units
Dimensions 34" × 19.4" × 12"
Weight 137 lbs (62.14 kg)
Enclosure Rating IP65 / NEMA 3R
Certifications UL 1741 CRD-Multimode, UL 1741 3rd SB, UL 1741 CRD-PCS
Warranty 10 years

EG4 48V 314Ah 16kWh WallMount Battery Specifications

Nominal Voltage 51.2V DC
Capacity 314Ah
Total Energy 16kWh
Usable Energy 12.86kWh at the recommended 80% depth of discharge
Cell Chemistry Lithium Iron Phosphate (LFP)
Cycle Life 10,000 cycles at 0.5C, 25°C, 80% DoD
Maximum Continuous Charge 157A
Maximum Continuous Discharge 200A
Peak Power 12.8kW for 3 seconds
Communication RS485 and CAN
Maximum Parallel Units 32
Mounting Indoor wall mount
Ingress Protection IP20 — indoor only
Charging Temperature 32°F to 122°F (0°C to 50°C)
Discharging Temperature −4°F to 131°F (−20°C to 55°C)
Dimensions 34.1" × 18.1" × 9.6"
Weight 293.2 lbs (133 kg)
Certifications UL 1973, UL 9540A
Warranty 10 years or 10,000 cycles

Documentation & Downloads

Sol-Ark 18K-2P Datasheet (Sol-Ark) EG4 WallMount 314Ah Indoor Battery Spec Sheet (EG4)

10-Year Warranties

Sol-Ark covers the inverter for 10 years; EG4 covers the battery for 10 years or 10,000 cycles.

Lowest Price Guarantee

Found it cheaper elsewhere? Call us at (303) 876-7654 before you buy.

Authorized Sol-Ark and EG4 Dealer

Genuine hardware from both manufacturers, with full support behind it.

Sol-Ark 18K-2P Hybrid Inverter + EG4 48V 314Ah 16kWh Wall-Mount Battery Bundle: Frequently Asked Questions

What exactly is in this bundle?
A Sol-Ark 18K-2P hybrid inverter and one EG4 48V 314Ah 16kWh indoor wall-mount battery. Those are the two expensive decisions in a home energy system, bought together and known to work together. Solar panels, racking, disconnects, conduit and installation labour are separate.
How long will 16kWh run my house?
12.86kWh is the usable figure at EG4's recommended 80% depth of discharge. A house running a refrigerator, lighting, networking and electronics at roughly 500W averaged over a day will get somewhere around 24 hours. Add central air conditioning and it's a few hours. Call us at (303) 876-7654 with your list and we'll work it through properly.
Is one battery enough for this inverter?
It depends on what you're backing up. The battery discharges at up to 200A continuous, which is roughly 10kW — so a single battery cannot supply the inverter's full 18kW output. For essential loads that's fine. If you want to use the inverter's full capacity during an outage, you want at least two batteries. This bundle is a strong starting point that expands cleanly.
Can I add more batteries later?
Yes, and it's the normal path. The EG4 wall-mount supports up to 32 units in parallel, and the Sol-Ark has two 48V battery ports with a large charger. Adding a second battery later is straightforward and doesn't require changing the inverter.
Why buy them together rather than separately?
Compatibility and price. The Sol-Ark communicates with the EG4's battery management system over CAN/RS485, so state of charge, charge limits and protection are coordinated rather than approximated — that's not guaranteed with every inverter and battery pairing. Buying as a bundle also removes the risk of the two arriving weeks apart.
Where does the battery go?
Indoors, wall-mounted. It's IP20, so it cannot be installed outside or anywhere it might get wet. At 293 lbs it needs to be mounted into structure — studs or masonry, not drywall alone — and the wall needs to be able to carry it. Your installer will size the mounting accordingly.
Do I need an electrician?
Yes. The inverter ties into your main electrical service, which is permitted and inspected work in every US jurisdiction. Battery installation also has its own code requirements around location, clearances and, increasingly, system-level certification. This is not a DIY project.
How much solar can I add?
The 18K-2P accepts a substantial array — the figures are in the specification table above — and it also supports AC coupling if you already have grid-tied solar. In practice most homes run out of usable roof before the inverter runs out of capacity. We stock panels and can size an array against your roof.
What warranties apply?
Sol-Ark covers the inverter for 10 years. EG4 covers the battery for 10 years or 10,000 cycles, whichever comes first. Both go through the manufacturers' normal warranty processes, with our support behind them as an authorized dealer for each.
Do you offer financing or price matching?
Yes. We offer 0% APR financing options through Affirm at checkout, and our Lowest Price Guarantee applies — if you find this bundle cheaper at another authorized dealer, call us at (303) 876-7654 before you order and we'll take care of it.
