RUiXU Lithium Batteries Kits

RUiXU Lithium Battery Kits | 15-30kWh | CEC & SGIP
$3,776.00 - $6,953.00
$3,776.00
$3,776.00 - $6,953.00
$3,776.00
✓ Authorized RUIXU Dealer
✓ Lowest Price Guaranteed
✓ Brand New & FREE Shipping: In Stock Ready To Ship
✓ Questions? Talk to a RUIXU Expert: 1-303-876-7654
✓ PRICE MATCH GUARANTEE


USE 5% OFF CODE: RUIXU5 for Non-Members


Renewable Outdoors LLC BBB Business Review

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

Size: 15kWh
UL1973 & IEC62619 Certified · UL9540A Tested · CEC & SGIP

RUiXU Lithium Battery Kits — 15kWh, 20kWh, 25kWh & 30kWh

These kits build a rack-mounted LiFePO4 battery bank out of RUiXU's RX-LFP48100 modules — 51.2V, 100Ah, 5.12kWh each — so you can pick the capacity your system actually needs instead of over- or under-buying. Choose from 15kWh, 20kWh, 25kWh, or 30kWh, and every module arrives with its own patch cable, ground cable, and parallel 4AWG cable set.

Because the modules are the building block, the bank isn't capped at 30kWh: up to 32 units run in parallel for as much as 160kWh, with no external controller needed. Canbus and RS485 support covers most major inverter brands, and DIP address switches handle protocol selection on the module itself. Renewable Outdoors is an authorized RUiXU dealer, and every kit carries RUiXU's 10-year limited warranty.

RUiXU Lithium Battery Kits 15kWh 20kWh 25kWh 30kWh rack mounted LiFePO4
10-Year Warranty
Lowest Price Guarantee
Authorized RUiXU Dealer
Free Shipping
0% APR Financing
Expert Support: (303) 876-7654

Why These Kits Work

Modular by Design

Each kit is built from identical 5.12kWh RX-LFP48100 rack modules, so adding capacity later means adding modules — not replacing the bank.

Scales Past 30kWh to 160kWh

Up to 32 modules run in parallel without an external controller, so the same architecture covers a house or a light commercial site.

Rebate-Program Listed

UL1973 and IEC62619 certified with UL9540A testing completed, plus CEC and SGIP listing for eligible California incentive programs.

Wide Inverter Compatibility

Canbus covers Victron, SMA, Sol-Ark, Solis, Deye, Growatt, Goodwe, Sunsynk, Schneider, LuxPower and more; RS485 adds MPP, Voltronic, RCT and Alpha Outback.

DIP-Switch Setup

Set the RS485 baud rate and select your inverter protocol with onboard DIP address switches — no separate software or programming tool.

Cables Included Per Module

Every module ships with its own RJ45/CAT5e patch cable, ground cable, and parallel 4AWG cable set, so the bank can be wired on arrival.

Choose Your Kit Size

Kit Size Modules Actual Energy Rack Space Typically Suits

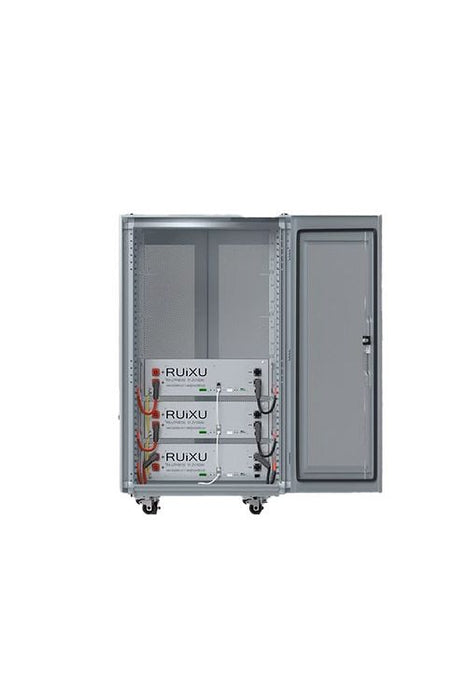

15kWh 3 × RX-LFP48100 15.36kWh 9U Essential-loads backup, or a small off-grid cabin

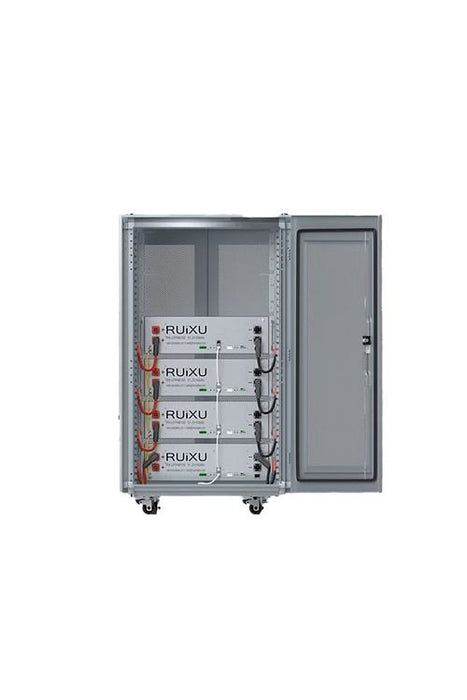

20kWh 4 × RX-LFP48100 20.48kWh 12U Whole-home backup for a smaller or efficient home

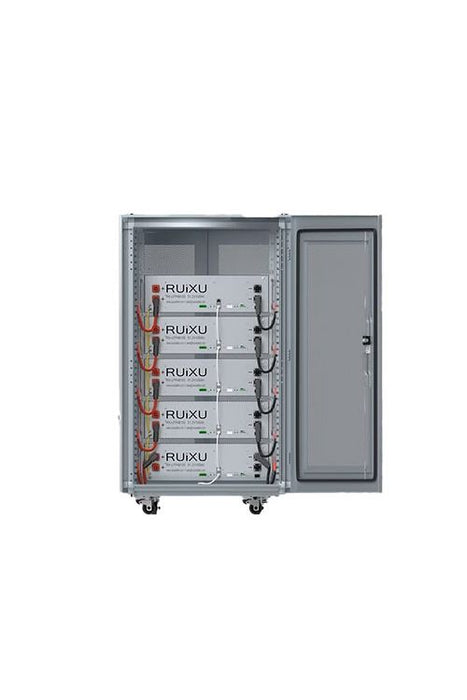

25kWh 5 × RX-LFP48100 25.60kWh 15U Whole-home backup with air conditioning or electric heat

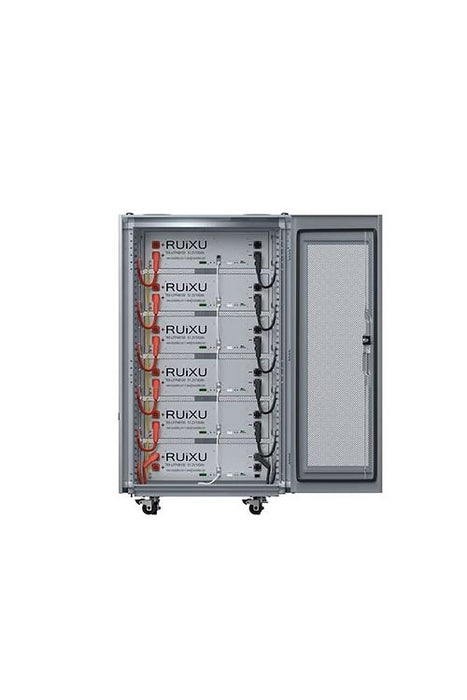

30kWh 6 × RX-LFP48100 30.72kWh 18U Large home, full off-grid, or light commercial use

Module counts and actual energy figures are calculated from the RX-LFP48100's 5.12kWh rating — RUiXU advertises these kits by rounded capacity (15kWh, 20kWh and so on) rather than stating a module count, so the real delivered energy is slightly higher than the name in every case. Rack space assumes each 3U module occupies three rack units. Call us at (303) 876-7654 if you need the exact configuration confirmed before ordering.

What's Included

RUiXU RX-LFP48100 rack battery modules

In the Box

  • RUiXU RX-LFP48100 48V server rack battery modules (3, 4, 5, or 6 depending on the kit size you select)
  • 1 × RJ45/CAT5e patch cable per battery
  • 1 × ground cable per battery
  • 1 × set of parallel 4AWG cables per battery

A rack or enclosure to mount the modules in is not part of the kit. We stock RUiXU's 6-slot and 10-slot battery cabinets and a bracket rack for the RX-LFP48100 separately — call us and we'll match one to your kit size.

Module Specifications (RX-LFP48100)

Nominal Voltage 51.2V
Nominal Capacity 100Ah @ 0.2C
Nominal Energy 5,120Wh per module
Cell Chemistry LiFePO4 (Lithium Iron Phosphate)
Form Factor 19" rack-mount, 3U ultra-thin
Dimensions (W×D×H) 19" × 18.1" × 5.23" (482.6 × 460 × 133mm)
Weight ~103.6 lbs (47 kg) per module
Canbus Compatibility Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, Goodwe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
RS485 Compatibility MPP, Voltronic, RCT, Alpha Outback
Expandability Up to 32 modules in parallel (5kWh–160kWh), no external controller required
Certifications UL1973 and IEC62619 (whole battery pack), UN38.3, MSDS; UL9540A testing completed; CEC & SGIP listed
Warranty 10-Year Limited Warranty

Cycle life, charge current, and operating temperature figures aren't published in text form on RUiXU's page for this module, and we weren't able to reach a direct manufacturer-hosted spec sheet or manual PDF for it — RUiXU's site serves those through script-based download buttons. Rather than guess or cite a reseller's copy, we've left those rows off and will add them once a direct manufacturer link is confirmed.

10-Year Warranty

Every module in every kit is backed by RUiXU's full 10-year limited manufacturer warranty.

Lowest Price Guarantee

Found the same kit cheaper elsewhere? Call us at (303) 876-7654 before you buy.

Authorized RUiXU Dealer

Genuine hardware, full manufacturer support, and expert sizing advice from our team.

RUiXU Lithium Battery Kits: Frequently Asked Questions

How many batteries come in each kit?
Each kit is built from 5.12kWh RX-LFP48100 modules: the 15kWh kit uses 3 modules (15.36kWh actual), the 20kWh kit uses 4 (20.48kWh), the 25kWh kit uses 5 (25.6kWh), and the 30kWh kit uses 6 (30.72kWh). RUiXU names the kits by rounded capacity, so you always get slightly more energy than the label suggests.
Does the kit include a rack or cabinet?
No — the kit covers the battery modules and their cables. We sell RUiXU's 6-slot and 10-slot battery cabinets and a bracket rack for the RX-LFP48100 as separate items, and any standard 19-inch server rack with enough clearance will also work. Call us at (303) 876-7654 and we'll match an enclosure to your kit size.
Which kit size should I choose?
As a rough guide: 15kWh suits essential-loads backup or a small off-grid cabin, 20kWh covers whole-home backup for an efficient home, 25kWh handles a home with air conditioning or electric heat, and 30kWh fits a large home, full off-grid living, or light commercial use. Your actual runtime depends on your loads, so call us and we'll work through your load list.
Can I add more capacity later?
Yes, and this is the main reason to buy a modular kit. Up to 32 RX-LFP48100 modules can run in parallel without an external controller, scaling all the way to about 160kWh — so adding capacity means adding modules rather than replacing what you already own.
What inverters do these kits work with?
Over Canbus the modules support Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, Goodwe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider. Over RS485 they support MPP, Voltronic, RCT, and Alpha Outback. Protocol selection is done with DIP switches on the module itself.
Do these qualify for CEC or SGIP incentives?
The modules are UL1973 and IEC62619 certified with UL9540A testing completed, and RUiXU lists them for California's CEC and SGIP programs. Program eligibility also depends on your installer, equipment pairing, and application details, so confirm with your installer or program administrator before counting on a rebate.
How much does a kit weigh, and will my wall or floor take it?
Each module weighs about 103.6 lbs, so a 15kWh kit is roughly 311 lbs of battery, a 20kWh kit about 414 lbs, a 25kWh kit about 518 lbs, and a 30kWh kit about 622 lbs — before the rack. That's a real structural consideration; have your installer confirm the floor or wall can carry it.
Do I need an electrician to install this?
Yes, we recommend it. Wiring a 48V bank of this size involves high-current DC connections, proper grounding, and correct inverter communication setup — work best done by a licensed electrician familiar with your local code and inspected before commissioning.
Where can I install the batteries?
These are rack-mount modules intended for a sheltered indoor location — a utility room, garage, basement, or equipment closet — rather than open outdoor exposure. RUiXU doesn't publish an ingress rating for this module, so if you're planning an outdoor or unconditioned space, call us at (303) 876-7654 first and we'll help you find a suitable option.
What's covered under warranty, and do you offer financing?
Every module carries RUiXU's 10-year limited warranty, and as your retailer we can help you navigate a claim. We also offer 0% APR financing through Affirm at checkout and back every kit with our Lowest Price Guarantee — if you find a better price elsewhere, call us at (303) 876-7654 before you order.
