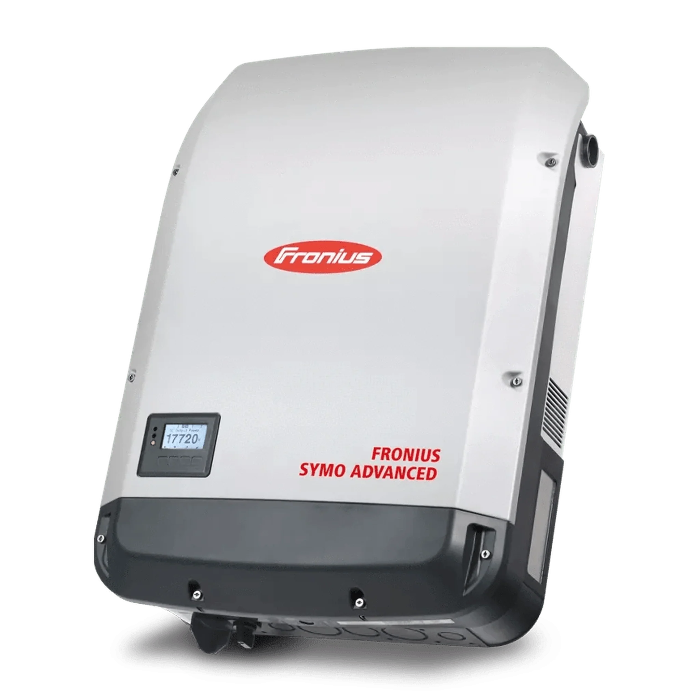

Fronius | 15.0kW Symo Advanced Inverter, 208 VAC, 3-Phase Lite, 325 - 850 VDC MPPT

Fronius | 15.0kW Symo Advanced Inverter, 208 VAC, 3-Phase Lite, 325 - 850 VDC MPPT
$2,819.75 - $2,819.75
$2,819.75
$2,819.75 - $2,819.75
$2,819.75

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

Say hello to the Fronius Symo Advanced inverter, your new best friend for commercial and industrial energy needs! This smart, three-phase inverter is designed to meet the energy demands of the future, with advanced shade management and built-in Power Line Communication for streamlined SunSpec Rapid Shutdown. Plus, its lightweight design and easy service access make it a breeze to install and maintain. With the Fronius Symo Advanced, you can expect high efficiency and reliable performance. Its cutting-edge technology ensures that you get the most out of your solar panels, while its flexible, flat-mount installation makes it easy to integrate into your existing system. Whether you're looking to reduce your energy costs or increase your sustainability, the Fronius Symo Advanced inverter is the perfect solution.

Number of MPP trackers 1
Recommended PV Power (kWp) 12.0 – 19.5 kWp
Max. usable input current 50 A
Nominal input voltage 325 V
DC input voltage range 325 – 1000 V
MPP Voltage Range 325 – 850 V
Max. output power 208 V 15 kVA
Output configuration 3~ NPE 208/220 V
Frequency range 45 – 65 Hz
Power factor range 0 – 1 ind./cap.
Max continuous output current 208 V 41.6 A
OCPD/AC breaker size 208 V 60 A
Max. efficiency 97.3%
CEC efficiency 208 V 96.5%
Dimensions (W x H x D) 1.68 ft × 2.38 ft × 8.9 in
Weight 78.31 lb
Degree of protection NEMA 4X
Night-time consumption < 1 W
Inverter design Transformerless
Cooling Variable speed fan
Ambient Temperature Range -40°C to +60°C
Maximum Relative Humidity 0 – 100%
Max. altitude 2000 m @ 1000 V, 3400 m @ 850 V
Compliance & Standards UL 1741, IEEE 1547, NEC 2014, CSA, FCC
DC connection 6x DC+ and 6x DC- screw terminals (Cu/Al)
AC connection Screw terminals 14–6 AWG
Interference emission class B
DC reverse polarity protection Yes
Anti-islanding Yes (per UL 1741, IEEE 1547, NEC)
