ACiQ 1 Ton 21 SEER2 High Efficiency Central Heat Pump System

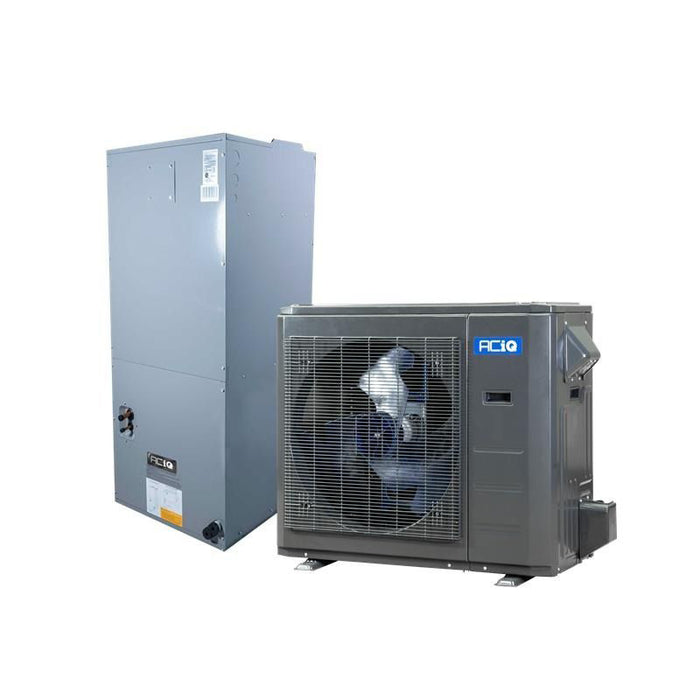

The ACiQ High-Efficiency 1 Ton Heat Pump System combines the advanced ACIQ-12-EHPD inverter condenser with the ACIQ-12-AHD variable-speed air handler to deliver intelligent comfort and energy-saving performance—perfectly designed to work with your existing ductwork.

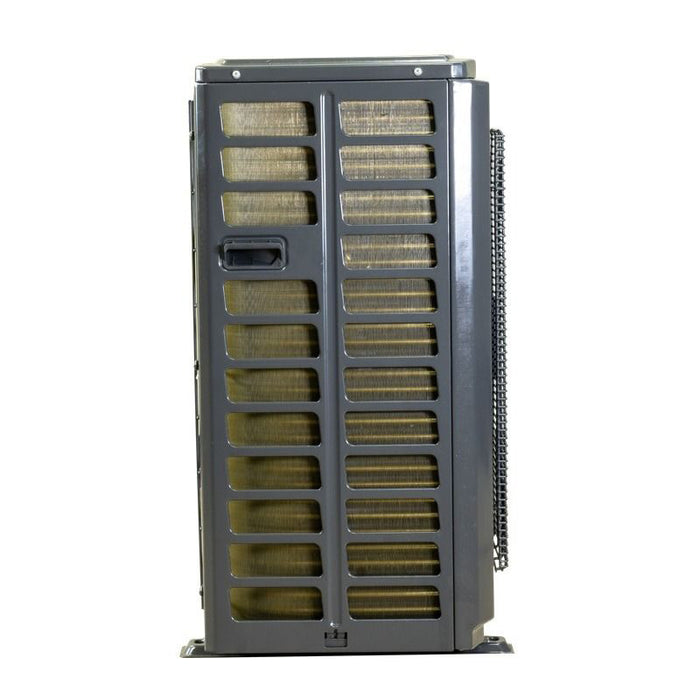

The ACIQ-12-EHPD utilizes cutting-edge inverter technology to convert AC power into DC, allowing the compressor to adjust its speed dynamically. This enables the system to precisely match its BTU output to real-time demand, ensuring efficient and consistent performance through varying temperatures.

Equipped with sophisticated sensors, the condenser actively monitors refrigerant temperature, duct pressure, and both indoor and outdoor air conditions. Upon initial startup, it enters a "learning mode" to collect data, optimizing its operation for long-term efficiency and responsiveness.

Unlike conventional heat pumps that can struggle in cooling mode when sized for heating, the ACIQ-12-EHPD’s inverter technology automatically scales output. This allows it to perform like a smaller unit during warmer months—preventing overcooling and reducing humidity—while delivering full heating power when needed.

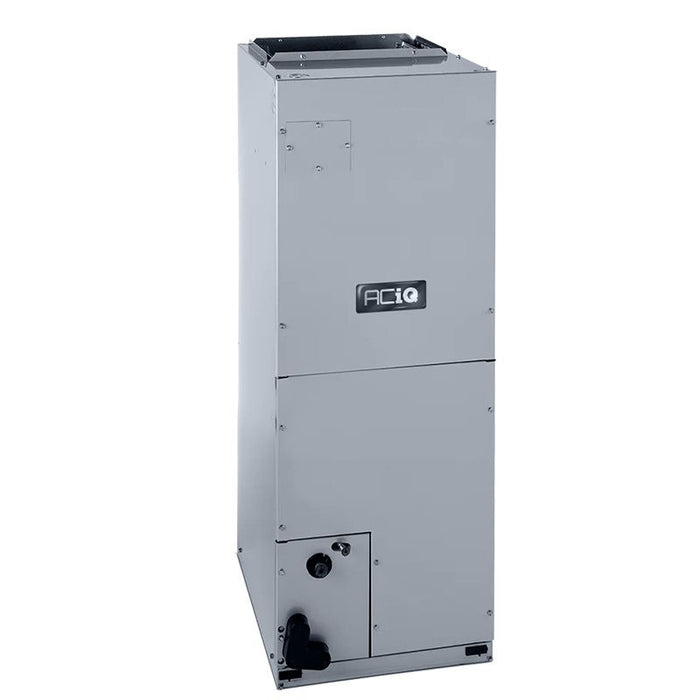

The ACIQ-12-AHD air handler features a high-efficiency variable speed DC blower and built-in communicating technology. It works in tandem with the outdoor condenser and your 24V thermostat, allowing the system to continuously adjust its BTU output for optimal comfort and energy use. Designed for seamless ducted integration, it ensures even distribution of heated and cooled air throughout your home.

Specs

System Features

Installing the ACiQ central ducted air handler is straightforward and similar to replacing a standard air handler. A licensed technician will complete all necessary electrical, refrigerant, thermostat, and communication line connections, along with integrating the unit into your existing return and supply ductwork.

Designed for flexibility, this multi-positional air handler supports upflow, downflow, and horizontal installations. It’s compatible with any 24V thermostat that supports two stages of heating, making it easy to pair with your preferred control system. For colder climates, optional electric heat kits can be added as a reliable backup heat source.

An onboard intelligent control board helps simplify diagnostics by displaying fault codes if any issues arise, streamlining maintenance and service.

Important: This air handler must be installed with a compatible condenser and additional installation components, which may be sold separately unless included in a bundled system. To enable electric-only heating, an electric heat kit is required and available at an additional cost.

Your Satisfaction with ACiQ is Guaranteed:

• Warranty- 12 Years Compressor and 7 Years Parts with Online Registration
• Lowest Price Guarantee
