ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump System

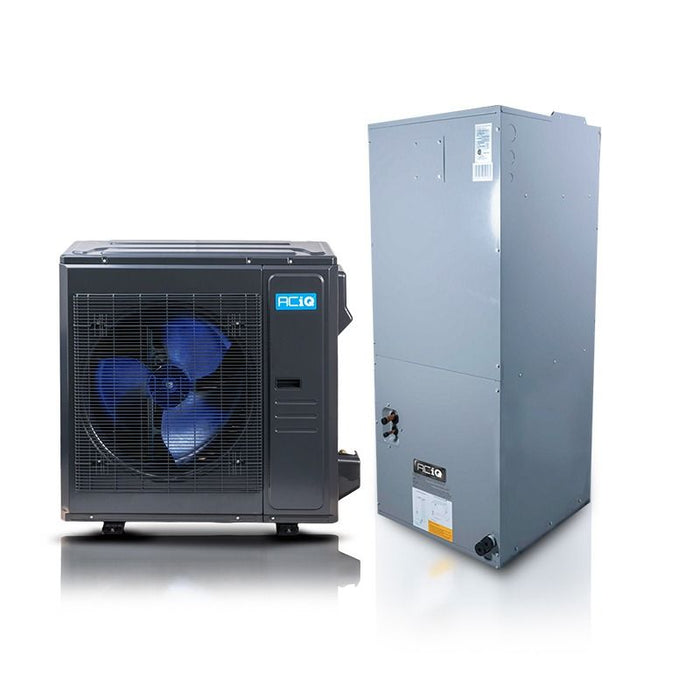

The ACiQ 3 Ton High-Efficiency Heat Pump System—featuring the ACIQ-36-EHPD inverter condenser and ACIQ-36-AHD variable-speed air handler—is engineered to deliver powerful performance, intelligent energy use, and seamless integration with your existing ductwork.

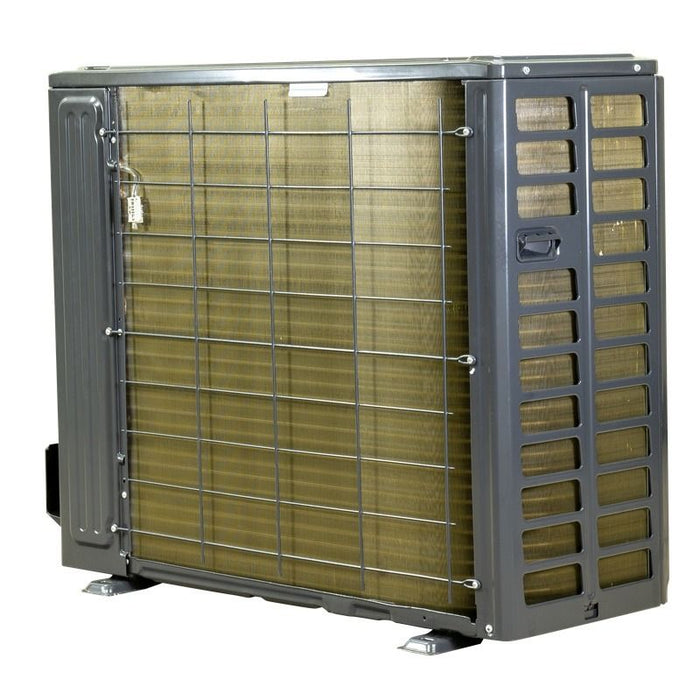

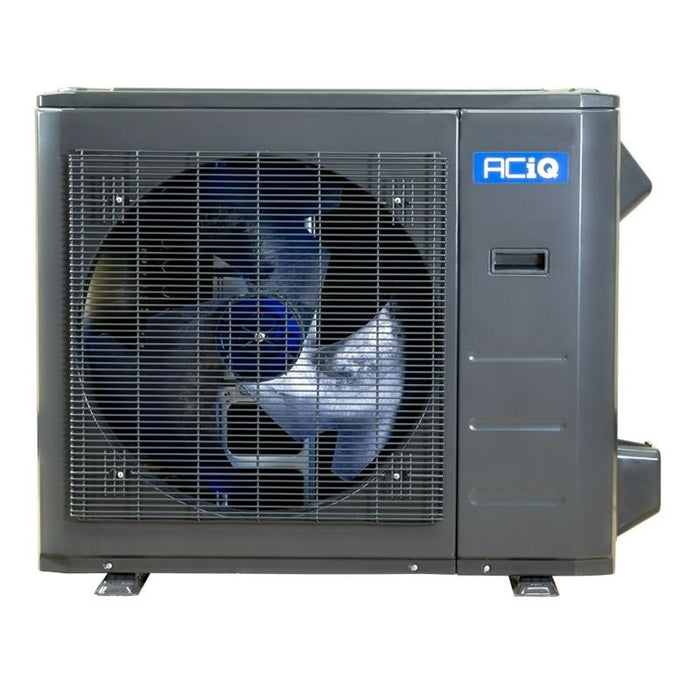

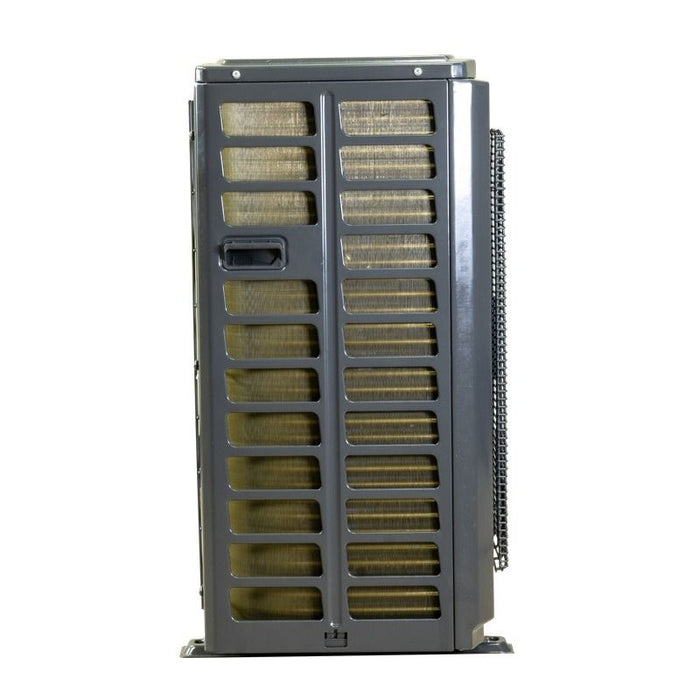

The ACIQ-36-EHPD utilizes advanced inverter technology to convert AC power into DC, enabling the compressor to adjust its speed automatically. This allows the system to scale its BTU output based on real-time demand, optimizing energy use and maintaining consistent indoor temperatures through all seasons.

Built with precision sensors, the condenser actively monitors indoor and outdoor temperature, duct pressure, and refrigerant levels. Upon installation, it enters a learning mode—gathering data to fine-tune its performance for long-term efficiency and adaptability.

Traditional heat pumps often struggle to balance heating and cooling when sized primarily for winter use. The ACIQ-36-EHPD overcomes this with adaptive sizing, adjusting its output to function like a smaller system during cooling season—delivering ideal comfort without overcooling or excess humidity.

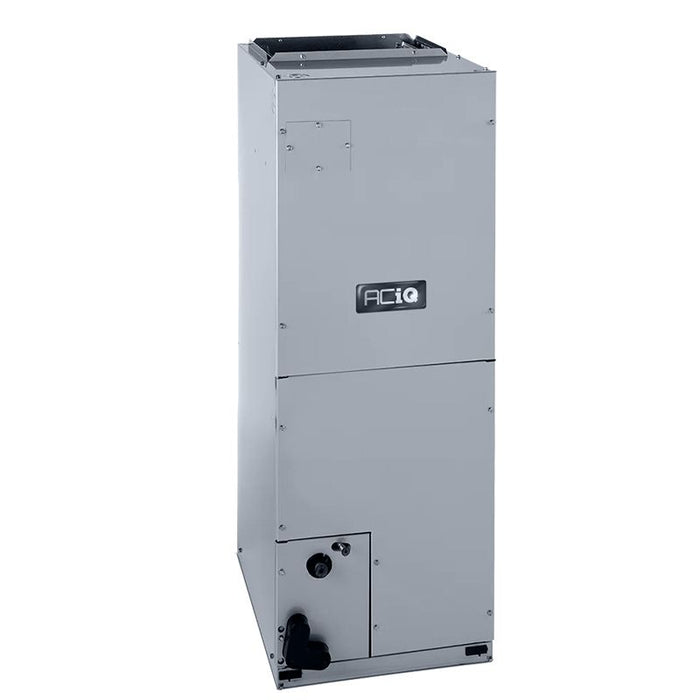

The ACIQ-36-AHD air handler is designed to work in perfect harmony with the inverter condenser and your thermostat. Its variable-speed DC blower motor and built-in communication capabilities ensure continuous adjustment of BTU output, maintaining peak efficiency and personalized comfort.

With multi-positional configuration and straightforward ductwork integration, this air handler distributes heated and cooled air evenly throughout your home—making it a flexible, high-performance solution for any space.

Specs

System Features

Installing the ACiQ central ducted air handler is straightforward and similar to replacing a standard air handler. A licensed technician will complete all necessary electrical, refrigerant, thermostat, and communication line connections, along with integrating the unit into your existing return and supply ductwork.

Designed for flexibility, this multi-positional air handler supports upflow, downflow, and horizontal installations. It’s compatible with any 24V thermostat that supports two stages of heating, making it easy to pair with your preferred control system. For colder climates, optional electric heat kits can be added as a reliable backup heat source.

An onboard intelligent control board helps simplify diagnostics by displaying fault codes if any issues arise, streamlining maintenance and service.

Important: This air handler must be installed with a compatible condenser and additional installation components, which may be sold separately unless included in a bundled system. To enable electric-only heating, an electric heat kit is required and available at an additional cost.

Your Satisfaction with ACiQ is Guaranteed:

• Warranty- 12 Years Compressor and 7 Years Parts with Online Registration
• Lowest Price Guarantee
