5 Ton 17.5 SEER2 High Efficiency Central Heat Pump System Extreme+ Series | Inverter

The 5 Ton Extreme Series Central Inverter Heat Pump features advanced inverter technology that converts AC power into DC. This allows the compressor to automatically speed up or slow down based on current heating or cooling needs. As outdoor conditions change, the system adapts in real time, delivering just the right amount of BTUs to maintain comfort and efficiency.

Built with intelligent sensors, the condenser continuously monitors indoor and outdoor temperatures, duct pressure, refrigerant levels, and overall system performance. Upon startup, it enters a learning mode, gathering data to optimize performance and improve efficiency over time.

Thanks to its self-adjusting inverter system, the ACiQ-60-HPD can be effectively sized to meet your heating requirements without compromising summer comfort. Unlike traditional heat pumps that may overcool and leave excess humidity when sized for winter use, this unit automatically scales back, performing like a smaller system for ideal cooling without the clammy feel.

Designed for extreme cold, this system provides reliable heating even when outdoor temperatures drop to -22°F. While standard heat pumps rely heavily on expensive electric backup heat below 30°F, the ACiQ-60-HPD uses inverter-driven refrigerant flow to maximize heat extraction. It delivers 100% heating capacity at 0°F and maintains 80% output at -22°F—cutting cold-weather heating costs by up to 75%. Electric backup heat only kicks in below -22°F, ensuring efficiency in even the harshest conditions.

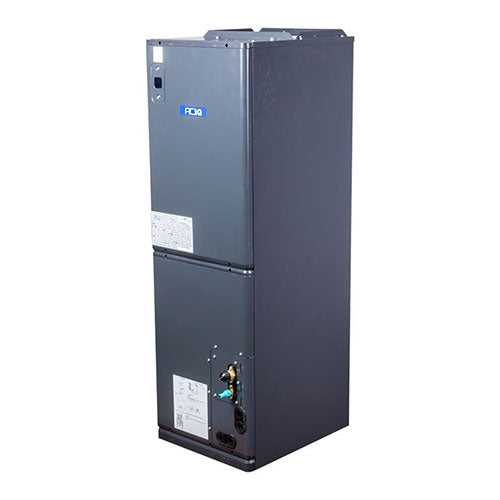

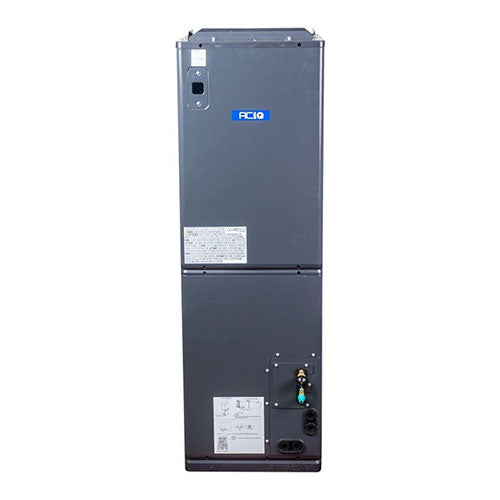

The ACiQ-60-PAH Extreme+ is one of the most advanced multi-positional ducted air handlers available today. Equipped with a variable-speed DC blower and smart communicating technology, it’s built to deliver top-tier performance and comfort in any climate. Unlike standard systems, this air handler works seamlessly with your inverter condenser and thermostat, allowing the system to automatically adjust BTU output in real time—ensuring maximum efficiency and consistent comfort throughout your home.

5 Ton 17.5 SEER2 Extreme Heat Pump System Specs

5 Ton 17.5 SEER2 Extreme Heat Pump System Features

Installing the ACiQ Extreme+ central ducted air handler is straightforward and similar to replacing a standard air handler. Your technician will handle electrical, refrigerant, thermostat, and communication connections, along with tying the unit into your existing return and supply ductwork. Designed with a slim cabinet and multi-position capability (upflow, downflow, or horizontal), this air handler is both space-efficient and highly versatile. It works with any 24V thermostat that supports two stages of heating.

Optional electric heat kits are available for additional heating support on the coldest days. For added convenience, the built-in intelligent control board displays fault codes to help diagnose any system issues quickly during maintenance.

This air handler must be installed alongside a compatible condenser and other system components, which are sold separately if not already included in your product bundle. If you plan to use straight electric heating, a compatible electric heat kit is required and available at an additional cost.

Your Satisfaction with ACiQ is Guaranteed:

• Warranty- 12 Years Compressor and 7 Years Parts with Online Registration
• Lowest Price Guarantee
