Anker SOLIX F3800 Plus w/ Home Power Panel and Sub Panel
Save 46%
Save 45%
Original price
$6,398.00
Original price
$6,398.00
-Original price
$11,197.00
Original price
$6,398.00
Current price
$3,499.99
$3,499.99-$6,099.99
Current price
$3,499.99
| /
✓ Authorized Anker Dealer ✓ Lowest Price Match Guarantee ✓ FAST & FREE Shipping: In Stock Ready To Ship ✓ Questions? Talk to a Anker Expert: 1-303-876-7654
Login for Exclusive Member Pricing.
Not a member? Create a Free Account.
Whole-Home Backup | Storm Guard | Single or Double Unit

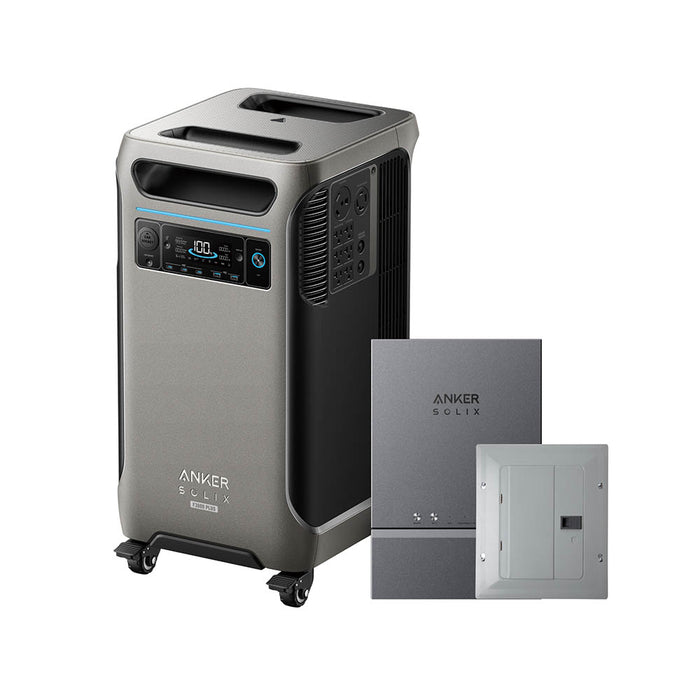

Anker SOLIX F3800 Plus with Home Power Panel and Sub Panel: Whole-Home Backup Without a Full Electrical Rebuild
This is the configuration that connects an F3800 Plus to your house rather than to extension cords. The Home Power Panel handles the switchover and the sub panel carries the circuits you want backed up, so an outage means the lights stay on rather than you walking around plugging things in.
Two features only exist in this configuration. Storm Guard watches severe weather alerts and charges the pack automatically before the storm arrives, which solves the most common backup failure of a half-full battery. And the Local Energy Saver runs off-peak charging and peak-time discharging against your utility rates, which Anker illustrates with Texas savings figures. Both require the Home Power Panel.
5-Year Anker Warranty
Lowest Price Guarantee
Authorized Anker SOLIX Dealer
Free Shipping
0% APR Financing via Affirm
Talk to a Human: (303) 876-7654
Why the F3800 Plus
Circuits, Not Extension Cords
The sub panel carries the loads you nominate, so backup means your house works rather than a few appliances you remembered to plug in.
Storm Guard Charges Before the Storm
Severe weather alerts trigger automatic charging so the pack is full when the outage starts. This requires the Home Power Panel, which is why it only appears in this configuration.
Local Energy Saver Between Outages
Off-peak charging and peak-time discharging against your utility's rate structure. Anker cites Texas savings above 5,000 dollars a year; your figure depends entirely on your own rate spread and needs an expansion battery.
6,000 W With Both Voltages From One Box
A built-in NEMA L14-30 delivers 120 V and 240 V from a single unit, so a well pump or a dryer works without pairing two power stations. Two units in parallel reach 12,000 W.
3,200 W of Solar on a 165 V Window
Dual MPPTs accepting 11 to 165 V at 17 A each. The wide voltage range is what lets you series rigid panels instead of running many parallel strings.
3.84 kWh to 53.8 kWh
Six BP3800 expansion batteries take a single unit to 26.9 kWh. Two units with twelve batteries reach 53.8 kWh, which is weeks rather than days.
What's Included
In the Box
Anker SOLIX F3800 Plus Portable Power Station, one or two units per your selection
Anker SOLIX Home Power Panel
Sub Panel
AC Charging Cable
Connection cabling and Quick Start Guides
Expansion batteries are sold separately. This configuration ties into your electrical service and must be installed by a licensed electrician; a permit is generally required from your local authority having jurisdiction. Storm Guard and the Local Energy Saver features both require the Home Power Panel, and the Local Energy Saver also needs an expansion battery to be worth running.
Anker SOLIX F3800 Plus Power Station
Figures below are from Anker's published tech specs for the F3800 Plus.
Capacity
3,840 Wh
Battery Chemistry
LFP, 3,000+ cycles
Expandable Capacity
Up to 6 × BP3800 Expansion Batteries (3,840 Wh each)
Maximum System Capacity
Up to 26.9 kWh single unit, 53.8 kWh with two units
AC Output Power (Total)
6,000 W max
AC Output (NEMA 5-20R)
120 V, 20 A max, 60 Hz, 2,400 W max
AC Output (NEMA L14-30R)
120 V / 240 V, 25 A max, 60 Hz, 6,000 W max
AC Output (NEMA TT-30R)
120 V, 3,000 W max
Car Charger Output
12 V, 10 A
USB-A Output
5 V, 2.4 A, 12 W max per port
USB-C Output
Up to 20 V / 5 A, 100 W max per port
Dimensions (L × W × H)
27.6 × 15.3 × 15.6 in, including wheels
Net Weight
136.7 lb
Warranty
5 Years
Input and Charging
Solar Panel Input
11 to 165 V, 17 A max, 1,600 W max per input
Maximum Total Solar Input
3,200 W across 2 MPPT inputs
AC Input
120 V, 15 A max (under 3 hr) / 12 A max continuous, 60 Hz
AC Input Power, Charging
1,800 W max
AC Input Power, Bypass Mode
1,440 W max
Home Power Panel and Generator Adapter Port
6,000 W max AC in and out, 120 V / 240 V
Anker SOLIX Generator Port
60 V max, 120 A max
Generator Bypass
3,300 W single unit, 6,000 W with one or more expansion batteries
Anker notes that product specifications are subject to change without notice. Call us at (303) 876-7654 if a figure here is decisive for your installation and we will confirm it against the current datasheet.
Registered through Anker and honored by us as an authorized dealer. Register the serial number at purchase so a claim is never held up by paperwork.
Lowest Price Guarantee
Find it cheaper at another authorized Anker SOLIX dealer? Call us before you order and we will take care of you.
Help From People Who Sell These Every Day
Call (303) 876-7654. We would rather spend ten minutes sizing your system correctly than process a return later.
Anker SOLIX F3800 Plus with Home Power Panel and Sub Panel: Whole-Home Backup Without a Full Electrical Rebuild: Frequently Asked Questions

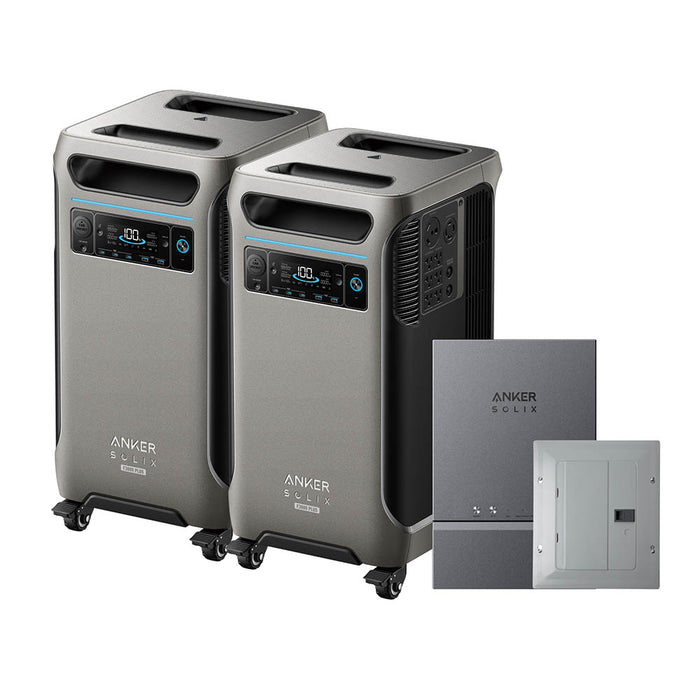

Should I get the single or double unit?
A single F3800 Plus gives 6,000 W, which covers essential circuits including a well pump or a furnace blower. Two units give 12,000 W, which is where central air conditioning and an electric range become realistic. The honest test is your must-run list rather than your house size. Call us at (303) 876-7654 and we will work through it with you.
What does installation involve?
A licensed electrician mounts the Home Power Panel and sub panel, moves your chosen circuits onto the sub panel and wires the connection to your main service. A permit is generally required, and in many areas the utility must pull the meter seal before service conductors are touched. Budget for the electrician separately from the equipment.
How is the F3800 Plus different from the original F3800?
Three things. Solar input goes from 2,400 W to 3,200 W, on a much wider 11 to 165 V dual MPPT window instead of 11 to 60 V, which is what allows series-wired rigid arrays. It adds true generator bypass, which the F3800 does not have, at up to 6,000 W on 240 V. And the special AC sockets differ: the Plus has a TT-30 rated 3,000 W plus an L14-30 rated 6,000 W, where the F3800 has a NEMA 14-50 and an L14-30. Capacity is the same 3,840 Wh on both.
How far can I expand it?
Up to six BP3800 expansion batteries on a single F3800 Plus for 26.9 kWh. Pair two units with twelve batteries and you reach 53.8 kWh. Anker confirms that an F3800 and an F3800 Plus can be used together on a Double Power Hub or a Home Power Panel, so an existing F3800 owner can add a Plus rather than starting over.
Can I run my whole house on it?
Depends on the house and how it is connected. 6,000 W with 120 V and 240 V from a single unit covers most essential circuits including a well pump or a furnace. Two units in parallel give 12,000 W, which reaches most homes outside of central air conditioning on a hot day. The connection method matters as much as the wattage, which is where the Home Power Panel, a transfer switch or an inlet box comes in.
What does the generator bypass actually do?
It lets a 240 V generator pass power straight through to your loads while also charging the battery, at up to 6,000 W. Anker rates a full recharge from a generator at about 1.5 hours and claims up to 50 percent better fuel efficiency than running a generator continuously. Note that the Anker SOLIX Generator Adapter is required and bypass supports a single F3800 Plus unit only.
Which output ports work in which situation?
This catches people out, so it is worth reading Anker's port conditions before you buy. With no AC input connected, all ports work. Plugged into a 120 V wall outlet, only the TT-30R and the three leftmost UPS-backed NEMA 5-20R ports are usable, with a 1,440 W bypass limit, and the L14-30R is not available. With a 240 V generator connected, the TT-30R gives 3,000 W and the L14-30R gives 6,000 W, but the NEMA 5-20R ports are not available. Call us at (303) 876-7654 if that decides your setup and we will walk through your specific case.
Can I charge my EV with it?
Yes. Double-press the AC outlet button to enable EV mode and set the vehicle charging rate below 25 A. No adapter is needed; you plug the EV's own cable in. It is a range top-up rather than a full charge, since 3,840 Wh is a small fraction of a car battery.
Can rooftop solar recharge it during an outage through the Home Power Panel?
No, and this surprises people. During an outage you connect panels directly to the F3800 Plus solar inputs at 11 to 165 V. Exceeding 165 V will damage those ports, so calculate string voltage at your coldest expected temperature before connecting.
What is Storm Guard?
The system watches for severe weather alerts and charges automatically ahead of the storm, so the pack is full rather than half full when the outage arrives. Note that Storm Guard requires the Anker SOLIX Home Power Panel.
