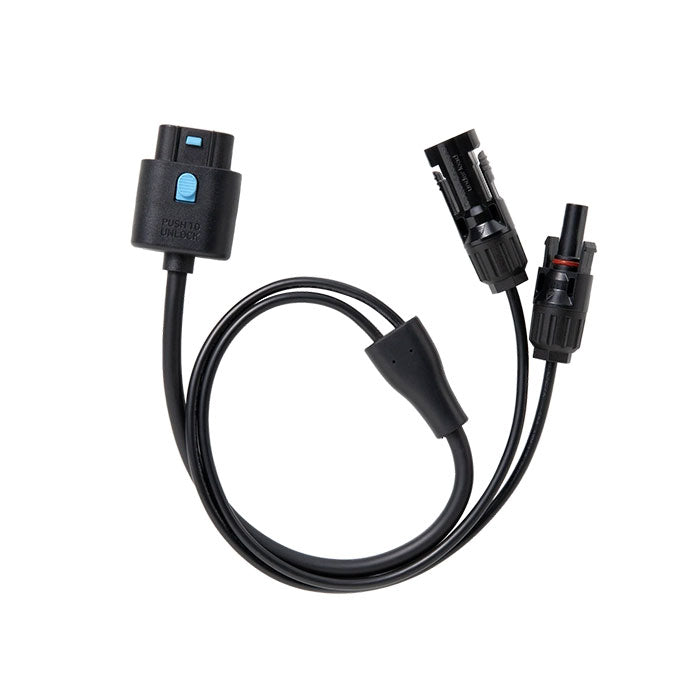

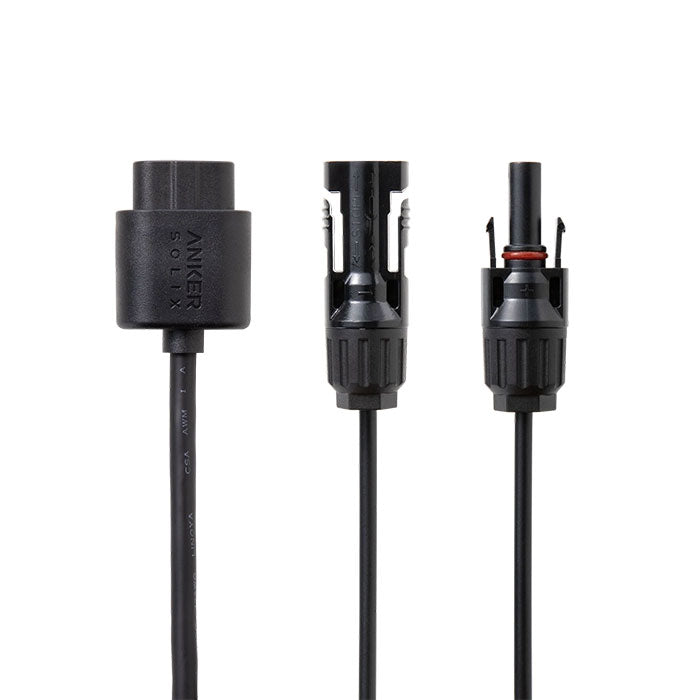

Anker SOLIX High-Voltage Solar Charging Cable (for F3800 Plus)

Anker SOLIX High-Voltage Solar Charging Cable for F3800 Plus

The F3800 Plus accepts solar at 11 to 165 V through its two MPPT inputs, which is what lets it take up to 3,200 W of panels. That higher voltage window is the main upgrade over the original F3800, and it needs a cable rated for it. This is that cable, part number AS210011.

Use it to connect rigid or portable panels wired in series to the F3800 Plus solar input ports. Anker is explicit that exceeding 165 V will damage those ports, so string voltage at cold open-circuit conditions is the number to check before you connect anything, not the nameplate operating voltage.

• Rated for the 165 V input window: Built for the F3800 Plus dual MPPT range of 11 to 165 V, where the original F3800 topped out at 60 V.
• Supports the full 3,200 W input: The higher voltage window is how the F3800 Plus takes 3,200 W of solar against the F3800's 2,400 W.
• For series-wired arrays: Higher voltage means fewer parallel runs and less current, which is what makes larger rigid panel arrays practical.
• Check your string voltage first: Anker warns that exceeding 165 V may damage the solar input ports. Calculate open circuit voltage at your coldest expected temperature, not at standard test conditions.

Renewable Outdoors is an authorized Anker SOLIX dealer. Our Lowest Price Guarantee applies to every order — call us at (303) 876-7654 if you're unsure which part fits your system and we'll check it for you.
