BigBattery ETHOS 3x Expansion Kit

BigBattery ETHOS 3x Expansion Kit
$3,768.00 - $3,768.00
$3,768.00
$3,768.00 - $3,768.00
$3,768.00
✓ Authorized Big Battery Dealer
✓ Lowest Price Match Guaranteed
✓ Brand New & FREE Shipping: In Stock Ready To Ship
✓ Questions? Talk to a Big Battery Expert: 1-303-876-7654

Welcome to the forefront of energy storage innovation with the BigBattery 48V ETHOS systems. These battery modules form the backbone of adaptable power solutions suitable for a wide range of applications, including grid-tied residences, solar installations, remote off-grid locations, and commercial establishments across the country. Featuring Tier 1 LiFePO4 cells, renowned for their safety and durability, and offering scalability up to 80kWh per Control Box, the ETHOS system sets a new standard for dependable energy storage solutions.

  • Scalable Power: 5.12kWh modules - single stack, expandable up to 80kWh per ETHOS Control Box.
  • Safety First: Tier 1 LiFePO4 cells and built-in fire-extinguishing modules ensure maximum safety.
  • Smart Monitoring: Advanced BMS technology provides real-time monitoring of voltage, current, and temperature.
  • Reliable Connectivity: UL-certified connectors ensure secure and reliable power connections.
  • Durable Design: IP65-rated casing protects against the elements for long-lasting reliability.
  • Versatile Applications: Ideal for emergency backup or as part of a solar energy system.

Designed For:

  • 48V Applications
  • Residential Power Systems
  • Home Solar Systems
  • UL-Certified ESS
  • Cabins & Tiny Homes
  • Family Homes & Mansions
  • Off-Grid Homesteads
  • Emergency Power
  • Whole Home Backup
  • Lead Acid Replacement

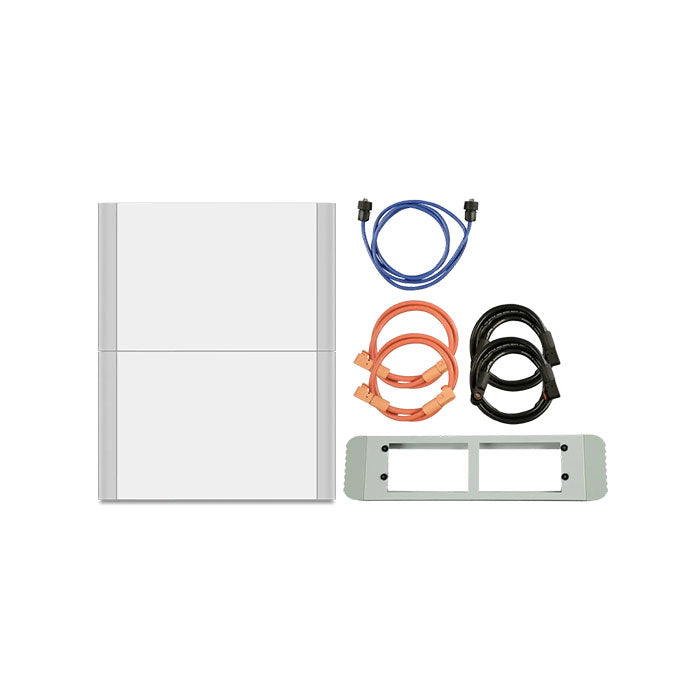

BigBattery ETHOS 2x Expansion Kit Includes:

  • 2 × 48V ETHOS 5.12kWh Stackable Battery Module

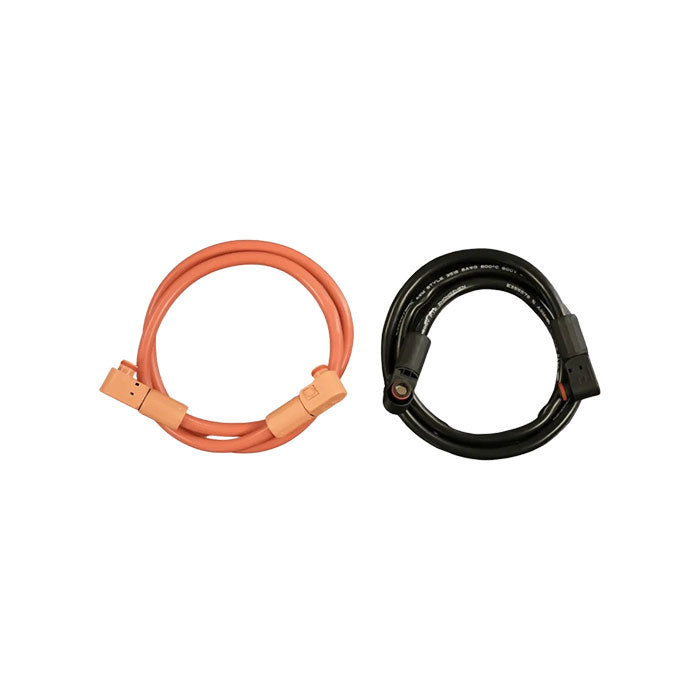

  • 2 × Ethos Parallel Power Cable 4.9 ft (1500mm)
  • 1 × ETHOS Rack Base

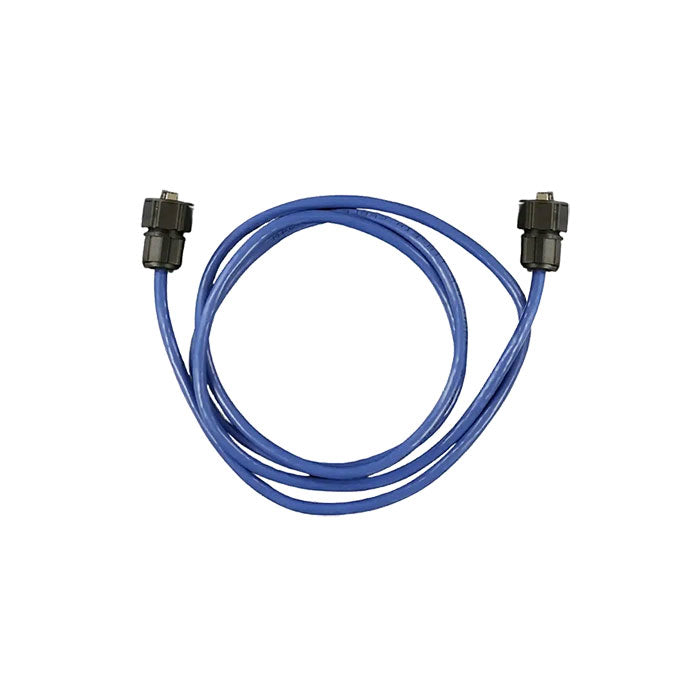

  • 1 × Ethos Parallel Comm Cable 4.9 ft (1500mm)

2 Stack Specs:

SKU: BNDL-B0011
System Voltage: 48V
Nominal Voltage: 51.2V
Chemistry: LiFePO4
kWh Capacity: 10.24kWh
Ah Capacity: 200Ah
Charging Voltage Range: 55.6 - 57V
Max Charge Voltage: 57V
Operating Voltage Range: 48 – 57V
Suggested Low Voltage Cutoff: 48 – 50.8V
Cell Configuration: 16S 2P
Max Continuous Discharge Current: 200A
Max Continuous Power: 10240W
Max Discharge Peak Current: 300A (Max 5 seconds)
Max Charge Current: 200A
Charge Temperature Range: 32°F - 113°F (0°C - 45°C)
Discharge Temperature Range: -4°F - 140°F (-20°C - 60°C)
Optimal Discharge Temperature Range: 59°F - 95°F (15°C - 35°C)
Storage Temperature Range (SoC >50%): -4°F - 113°F (-20°C - 45°C) (Max 6 months)
Depth: 6.7 in (170 mm)
Width: 26.5 in (674 mm)
Height: 43.3 in (1100 mm)
Max Connections: Up to (16) parallel connections per control box
Protection Rating: IP65
Communications: CANBus / RS485
Certifications: UL9540, UL9540a, UL1973, & UN38.3
