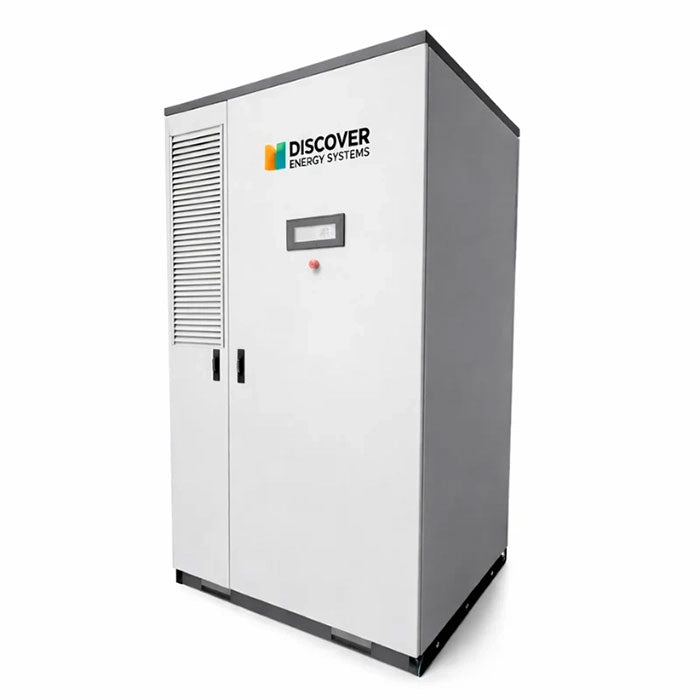

Discover Energy HV Energy Storage System | 209kWh | NEMA 3R | LiFePO4

The Discover Energy AES 210HV is a high-voltage, liquid-cooled commercial energy storage system built for community, commercial, and industrial applications where reliability and scalability aren't optional. Delivering 209 kWh of usable LiFePO4 energy in a NEMA 3R outdoor-rated enclosure, it ships pre-assembled as a complete, ready-to-deploy solution — dramatically cutting installation time and on-site labor costs compared to traditional BESS builds.

At the core of the AES 210HV is a 665.6V nominal high-voltage architecture paired with integrated liquid cooling and heating, keeping the battery operating efficiently across a wide range of environmental conditions. The system pairs directly with leading C&I hybrid inverters — including Sol-Ark, Solis, and others — removing the need for separate microgrid controllers, EMS controllers, or additional transformers. LYNK II Gateway integration enables closed-loop charging communication with compatible inverters, along with remote configuration and real-time monitoring via LYNK Cloud.

Safety is built in at every layer: aerosol-based thermal fire suppression, passive deflagration venting, continuous temperature and smoke monitoring, and UL 9540 Listed / UL 9540A Large Scale Fire Tested compliance. The AES 210HV is designed for a 20-year service life and is scalable from a single 209 kWh cabinet up to 4 MWh, making it a practical choice for projects that need room to grow — from grocery stores and EV charging stations to microgrids and industrial facilities.


AES 210HV Specs

Battery Chemistry:
Lithium Iron Phosphate (LiFePO₄)
Nominal Energy Capacity:
212 kWh (209 kWh Usable)
System Nominal Voltage:
665.6V
Operating Voltage Range:
603.2V – 738.4V
Cell Capacity:
320 Ah (314 Ah Usable)
Max. Continuous Current:
157A (C/2)
Continuous Power:
104.5 kW (25°C, 665.6VDC, C/2)
DC Connections:
Four (+) | Four (−) Terminals (Each Fused)
Inverter Compatibility:
Hybrid Inverter Technology (CANbus)
Communications:
LYNK II Gateway (Inverter Closed-Loop | Cloud Monitoring)
Dimensions (W x D x H):
1300 x 1300 x 2374 mm (51.2 x 51.2 x 93.4 in)
Net Weight:
2,490 kg (5,490 lb)
Material & Finish:
Corrosion Resistant Painted Steel
Thermal Management:
Integrated Liquid Cooling/Heating System
Auxiliary AC Input:
240VAC
Operating Conditions:
-30°C to 55°C (-22°F to 130°F)
Ingress Rating:
IP55 / NEMA 3R (Outdoor Cabinet)
Noise Level:
75 dBA @ 1m (30°C)
Scalability:
200 kWh to 4 MWh
Certifications:
UL 9540 Listed, UL 9540A Large Scale Fire Tested

AES 210HV Features

  • 209 kWh Usable LiFePO₄ Storage: High-density lithium iron phosphate chemistry delivers 209 kWh of usable energy with exceptional cycle life, thermal stability, and long-term reliability for demanding commercial and industrial applications.
  • High-Voltage Architecture: 665.6V nominal system voltage reduces current losses and improves overall efficiency, enabling seamless integration with high-voltage hybrid C&I inverters without additional transformers or controllers.
  • Integrated Liquid Cooling & Heating: Active thermal management maintains optimal battery performance across a wide operating range of -30°C to 55°C (-22°F to 130°F), making it suitable for harsh outdoor environments year-round.
  • Pre-Assembled Outdoor Cabinet: Ships as a complete, ready-to-deploy NEMA 3R / IP55-rated outdoor enclosure built from corrosion-resistant painted steel, dramatically reducing installation time and on-site labor costs.
  • LYNK II Gateway with Cloud Monitoring: Enables closed-loop CANbus communication with compatible hybrid inverters for optimized charging performance, plus remote configuration and real-time monitoring via LYNK Cloud.
  • Multi-Layer Safety System: Integrated aerosol-based fire suppression, passive deflagration venting, and continuous temperature and smoke monitoring provide comprehensive protection, backed by UL 9540 Listed and UL 9540A Large Scale Fire Tested certification.
  • Scalable from 200 kWh to 4 MWh: Modular platform supports project growth without extensive redesigns, making the AES 210HV a practical long-term investment for sites with expanding energy storage needs.
  • Simplified C&I Installation: By combining critical components into a single integrated system, the AES 210HV eliminates the need for separate microgrid controllers, EMS controllers, and additional transformers — bringing residential-style installation simplicity to commercial-scale projects.

Your Satisfaction with DES is Guaranteed:

  • 10-Year Limited Warranty
  • Lowest Price Guarantee
