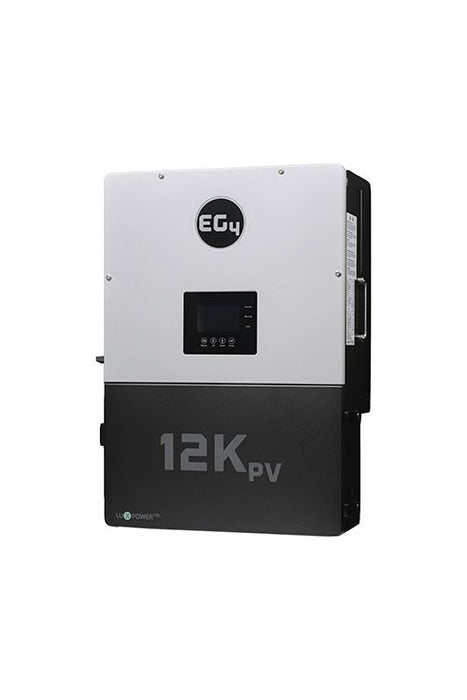

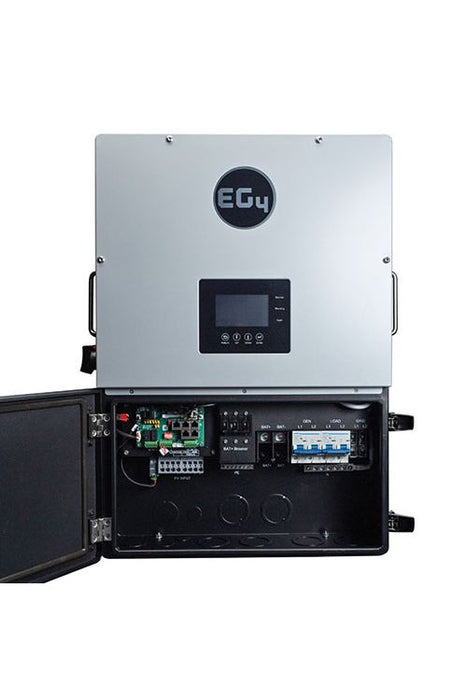

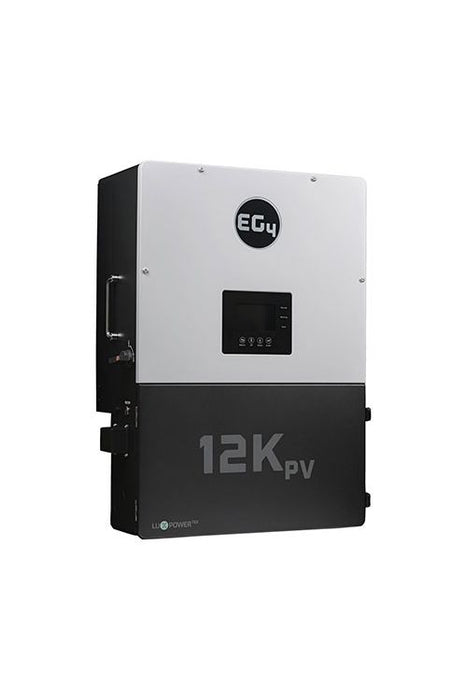

EG4 12kPV All-In-One Hybrid Inverter

EG4 12kPV All-In-One Hybrid Inverter
$4,049.00 - $4,049.00
$4,049.00
$4,049.00 - $4,049.00
$4,049.00
✓ Authorized Dealer
✓ FREE Shipping On Orders Over $5000
✓ Questions? Talk to a EG4 Expert: 1-303-876-7654
✓ PRICE MATCH GUARANTEE

In Stock Ready To Ship


Renewable Outdoors LLC BBB Business Review

Get 5% OFF at Checkout for Non-Members

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

12kPV Hybrid Inverter Manual & Spec Sheet

View Quick Start HERE
View Spec Sheet HERE

EG4 12kPV Hybrid Inverter | 48V | 12000W Input | 8000W Output | 120/240V Split Phase | RSD

Effortlessly integrate solar power into your existing energy system or launch a new one with the EG4 12kPV, our latest 48V split-phase hybrid inverter/charger. Capable of handling up to 12kW of solar input, it provides up to 8kW to power your loads while using the remaining energy to charge your batteries. Ideal for residential and light commercial applications, you can connect up to 10 units for a total output of 80kW.

The EG4 12kPV shares the same design and software as the flagship EG4 18kPV hybrid inverter, but in a more compact and cost-effective form. Its modular design allows for easy scalability, and users can remotely monitor and update the system via the EG4 monitoring website/app, offering enhanced control and flexibility.


EG4 12kPV Hybrid Inverter

EG4 12kPV Hybrid Inverter Specs

  • AC Output: 8kW continuous
  • PV Input: 12kW PV, recommended maximum 15kW array
  • Number of MPPTs: 2 (25A each)
  • Parallel: up to 10 units for 80kW
  • Dimensions: 29.5×20.5×11.2 in
  • Weight: 110 lbs

EG4 12kPV Hybrid Inverter Features

  • 8kW Continuous AC Output: Delivering consistent and reliable power for a wide range of applications, from powering your home to supporting small businesses.
  • 134A Surge Capacity: Supports high surge loads for demanding applications, such as backup power solutions.
  • Dual High Voltage (120-500 VDC) and High Amperage (25A) MPPTs: Accommodates high-output solar panels with ease, ensuring efficient energy conversion.
  • MPPTs Rated to 12kW, Accepts Maximum 15kW Array: Maximizing solar power input for optimal energy harnessing, perfect for both residential solar power systems and light commercial setups.
  • Split Phase Hybrid Design: Ensures efficient power management and distribution, suitable for off-grid living and grid-tied systems with battery backup.
  • Fast 10ms Transfer Time: Protects sensitive equipment with rapid power switching, crucial during power outages.
  • Export-Limiting Applications: Optimized for scenarios where power export needs to be controlled, enhancing energy storage systems.
  • Parallel Up to 10 Units for 80kW of Power Output: Expand your system effortlessly to meet growing energy demands, ideal for scalable energy solutions.
  • Handles Up to a 4,000W Imbalance for 30 Minutes: Provides flexibility in managing power loads, essential for emergency power supply and renewable energy projects.
  • Compatible with Generator Input: Ensures continuous power supply during outages, providing reliable backup power.
  • Harness Multiple Power Sources (AC/DC) Efficiently: Versatile design for maximum energy utilization, supporting hybrid solar systems.
  • RSD/ESS Shutdown: Meets safety standards for rapid shutdown capabilities.
  • Advanced Monitoring and Control: Utilize the EG4 monitoring app/website to monitor system performance, perform updates, and track EG4 battery performance.

Your Satisfaction with EG4 is Guaranteed:

  • 10-Year Limited Warranty
  • Lowest Price Guarantee
