EG4 24K Hybrid Multizone Mini-Split

EG4 24K Hybrid Multizone Mini-Split
Save 13% Save 13%
$1,839.99
$1,839.99 - $1,839.99
$1,839.99
$1,599.99
$1,599.99 - $1,599.99
$1,599.99
✓ Authorized EG4 Dealer
✓ Lowest Price Match Guarantee
✓ FREE Shipping on Most Orders Over $5000: In Stock Ready To Ship
✓ Questions? Talk to a EG4 Expert: 1-303-876-7654

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

EG4 24k Hybrid Mini Split V1 Spec Sheet

View Spec Sheet HERE
View User Manual HERE

24K Outdoor Unit, Up to 3 Zones

EG4 24K Hybrid Multizone Mini-Split

This is the outdoor condenser unit for EG4's multizone mini-split system — it pairs with 1 to 3 separately-sold indoor units (12K, 18K, or 24K) to cover your layout. If your indoor total exceeds the 24K compressor rating, EG4's own sizing guide simply caps combined output at 24K rather than causing a mismatch.

A built-in MPPT controller takes solar power directly — up to 5 panels rated at 550W each — alongside standard grid power, with SEER2 up to 22.5 and heating rated down to 5°F outdoor temperature.

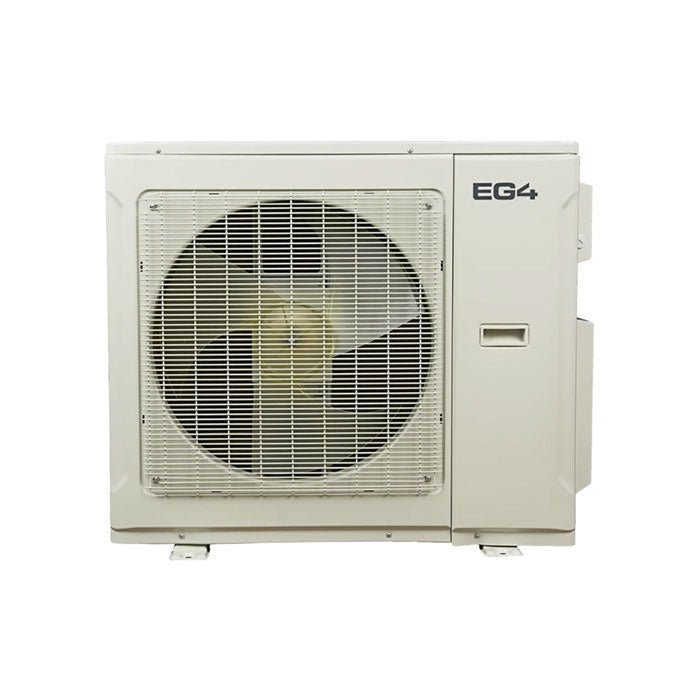

EG4 24K Hybrid Multizone Mini-Split outdoor unit
Solar-Direct Input
Up to 3 Indoor Zones
SEER2 Up to 22.5
AHRI & ENERGY STAR
Free Shipping
Expert Support: (303) 876-7654

Why This System

Runs Up to 3 Indoor Zones

Pair this outdoor unit with 1-3 indoor air handlers (12K, 18K, or 24K) to match your layout.

Direct Solar Input

Built-in MPPT accepts 150-410VDC directly from up to 5 panels (rated for 550W panels), alongside standard 208-230VAC grid power.

SEER2 Up to 22.5

High-efficiency rating with HSPF2 up to 10 for cold-climate heating.

R32 Refrigerant

A lower-GWP refrigerant than older mini-split systems.

Wide Operating Range

Rated for cooling down to 5°F and heating in temperatures as low as 5°F.

AHRI & ENERGY STAR Certified

Independently verified performance ratings.

What's Included

EG4 24K Hybrid Multizone Mini-Split, outdoor unit

What You Get

  • 1 × EG4 24K Hybrid Multizone outdoor condenser unit
  • Manufacturer documentation

Indoor air handler units (12K, 18K, 24K) are sold separately and required to complete the system. Professional installation is recommended.

Full Specifications

Capacity 24,000 BTU, up to 3 indoor zones
Efficiency SEER2 up to 22.5, HSPF2 up to 10
Solar/DC Input 150–410VDC (built-in MPPT), rated for 5 x 550W panels; AC grid-draw limiter configurable to 25/50/75%
AC Input 208–230VAC
Refrigerant R32, 57.85 oz (1.71L)
Operating Range Cooling 5°F–125°F, heating 5°F–75°F
Rated Current 8.4–9.2A
Dimensions 34.96" x 12.5" x 27.55" (888 x 318 x 700mm)
Weight ~118 lb (126.75 lb shipping)
Sound Level 58–60 dB(A)
Certifications AHRI certified, ENERGY STAR certified
Warranty 5-year limited

AHRI & ENERGY STAR Certified

Independently verified performance.

Fast, Free Shipping

Ships direct from authorized distribution with tracking provided as soon as it leaves the warehouse.

Real Solar Expertise

Call (303) 876-7654 before you order if you want help matching this to the rest of your system.

EG4 24K Hybrid Multizone Mini-Split: Frequently Asked Questions

Do the indoor units need to add up to exactly 24K?
No. EG4's own sizing guide allows the indoor total to exceed the outdoor unit's 24K compressor capacity — in that case, total output across all zones is simply capped at what the compressor can deliver (24K). Valid combinations include 12K+12K, 12K+18K, 18K+18K, and 12K+12K+12K, among others.
How many indoor units can I run?
Up to 3 zones, in any combination of 12K, 18K, and 24K indoor units.
Does this run on solar directly?
Yes. It has a built-in MPPT controller and accepts 150-410VDC directly from solar panels — EG4 rates it for an array of 5 panels at 550W each — alongside standard 208-230VAC grid power.
How efficient is it?
SEER2 up to 22.5 for cooling and HSPF2 up to 10 for heating, with AHRI and ENERGY STAR certification.
How cold can it get and still heat my space?
EG4 rates heating operation down to 5°F outdoor temperature.
How loud is it?
58-60 dB(A) — comparable to normal conversation.
What's covered under warranty?
A 5-year limited warranty. EG4 doesn't publish a separate compressor-vs-parts breakdown for this term.
Do you offer financing or price matching?
Yes. We offer 0% APR financing through Affirm at checkout, and our Lowest Price Guarantee applies. If you find this EG4 gear cheaper at another authorized dealer, call us at (303) 876-7654 before you order and we'll take care of it.
Are you an authorized EG4 dealer?
Yes. Renewable Outdoors is an authorized EG4 dealer, and every unit we sell ships new, in factory packaging, with EG4's full warranty intact.
