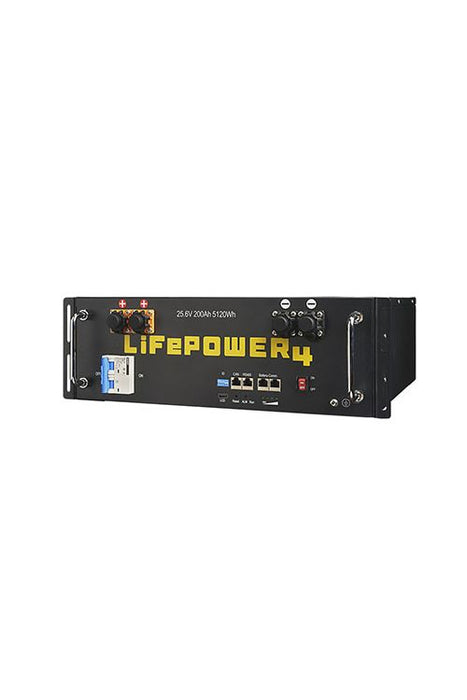

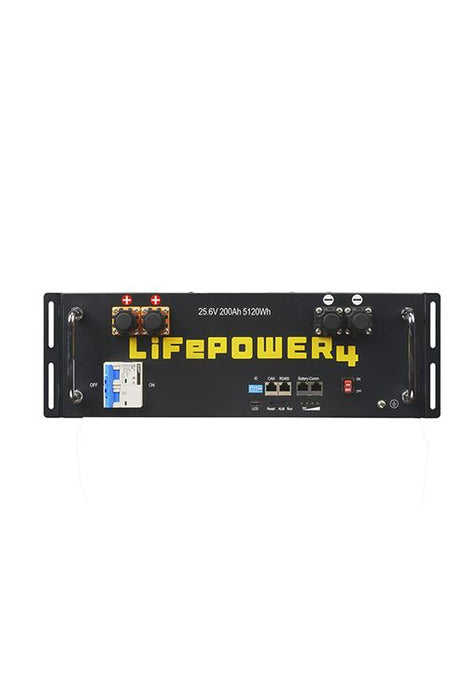

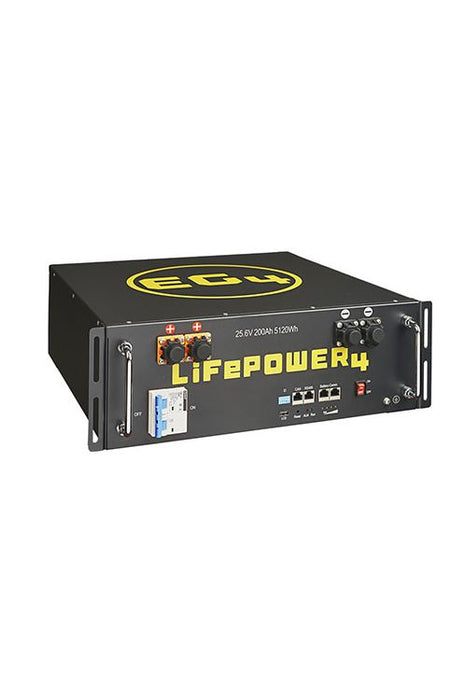

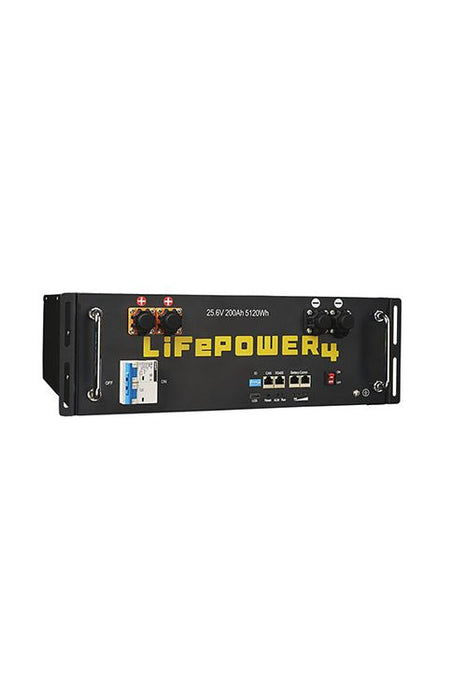

EG4 LiFePOWER4 24V V2 Battery
The EG4 LiFePOWER4 24V V2 battery is the ultimate energy storage solution, designed to offer superior performance, reliability, and safety. With significant upgrades over the original model, the V2 delivers more power, scalability, and user-friendly features, making it perfect for off-grid living, renewable energy systems, and other high-demand applications.
Key Features & Benefits
-
Superior Performance & Durability
Built with 16 UL-recognized prismatic 3.2V cells, offering over 6,000 cycles at 80% Depth of Discharge (DoD). Designed for long-lasting energy storage and optimized efficiency. -
High Capacity Energy Storage
With a nominal voltage of 25.6V and a capacity of 200Ah, this battery provides 5.12kWh of energy, ensuring sufficient power for demanding applications. -
Powerful Battery Management System (BMS)
The upgraded 200A BMS delivers continuous power of 5,120W, and peak power of 7,680W for 5 seconds. Includes a convenient on/off switch for safe operation. -
Scalable Storage
Supports closed-loop communication with up to 64 batteries in parallel, reaching a maximum storage capacity of 327.7kWh, making it an excellent choice for large-scale energy storage systems. -
Enhanced Connectivity
Features dual positive and negative terminals that accept 2 AWG battery to busbar power cables, making installation easier. Includes CAN bus communication port for compatibility with Victron inverters, plus RS485 port for firmware updates. -
Safety First
Dual on-board fire arrestors add extra layers of protection during operation, enhancing peace of mind during high-performance use. -
Extended Warranty
Enjoy long-term confidence with a new 10-year limited warranty.
Technical Specifications
- Voltage: 25.6V
- Capacity: 200Ah
- Energy Capacity: 5.12kWh
- Charging Current (Max Continuous): 100A
- Discharging Current (Max Continuous): 200A
- Short Circuit Protection: >250A for <0.1s
- Cell Over-Voltage Protection: 3.65V
- Cell Under-Voltage Protection: 2.5V
- Total Over-Voltage Protection: 29.2V
- Total Under-Voltage Protection: 20.0V
Advanced Features
-
Efficient Communication:
CAN bus port for closed-loop communication with Victron inverters and RS485 port for firmware updates. -
Improved Safety:
Equipped with dual fire arrestors for maximum safety during operation. -
User-Friendly Design:
BMS on/off switch allows safe monitoring without voltage at the terminals.
Comparison: EG4 LiFePOWER4 V2 vs. V1
Feature | LifePOWER4 24V V2 | LifePOWER4 24V V1 |
---|---|---|
Fire Suppression | Yes | Yes |
CAN Bus Communication | Yes | No |
RS485 Communication | Yes | Yes |
Supported Batteries in Closed-Loop | 64 | 16 |
Terminal Conductor Size | 2-AWG | 6-AWG |
Charging Current (Max Continuous) | 200A | 100A |
Discharging Current (Max Continuous) | 200A | 100A |
Charging Over-Current Protection 1 | >220A for 10s | >100A for 20s |
Charging Over-Current Protection 2 | >250A for 3s | >120A for 2s |
Discharge Over-Current Protection 1 | >220A for 30s | >100A for 10s |
Discharge Over-Current Protection 2 | >300A for 5s | >150A for 3s |
Short Circuit Protection | >250A for <0.1s | >250A for 1s |
Cell Over-Voltage Protection | 3.8V | 3.65V |
Cell Under-Voltage Protection | 2.3V | 2.5V |
Total Over-Voltage Protection | 30V | 29.2V |
Total Under-Voltage Protection | 22.4V | 20.0V |
Upgrade your energy storage solution with the EG4 LiFePOWER4 24V V2 battery. Featuring enhanced performance, scalability, and safety features, it’s the perfect choice for powering your off-grid or renewable energy needs with confidence.
Shop Now and enjoy the benefits of a superior battery solution with a 10-year warranty!
SKU:1511027
Voltage:25.6V
Capacity:200Ah
Kilowatt-hour(s):5.12kWh
Dimensions:6.1 × 19 × 17.4 in.
Warranty:10 Years
Communications:RS485/CAN
Design Life:*15 years at 80%
DoDTroubleshooting & Maintenance Guide (PDF):
Device Monitoring & Setup Guide (PDF):
