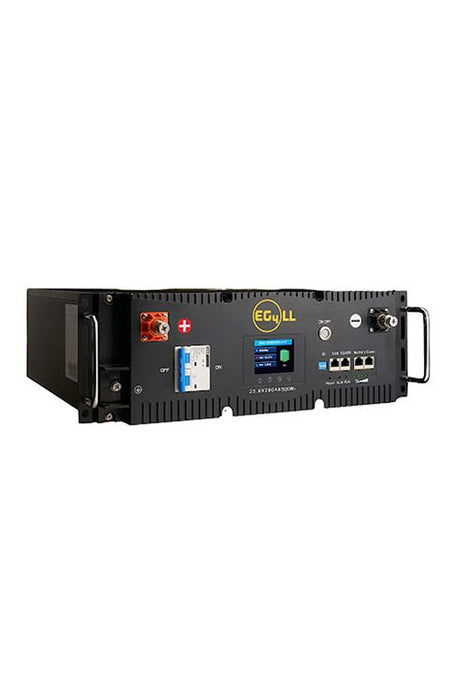

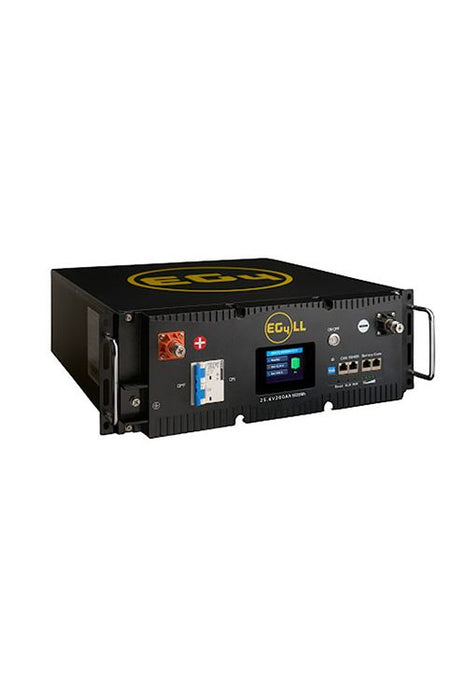

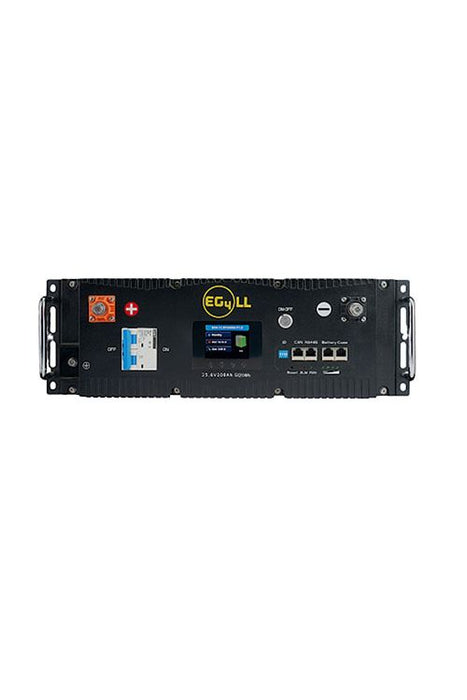

EG4 LL Lithium Battery (V2) 24V 200AH Server Rack Battery

EG4 LL Lithium Battery (V2) 24V 200AH Server Rack Battery
Sold out
$1,429.99 - $1,429.99
$1,429.99
$1,429.99 - $1,429.99
$1,429.99
✓ Authorized EG4 Dealer
✓ Lowest Price Match Guarantee
✓ FREE Shipping on Most Orders Over $5000: In Stock Ready To Ship
✓ Questions? Talk to a EG4 Expert: 1-303-876-7654

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

EG4 LL 24V 200Ah Manual & Specs

View Spec Sheet HERE
View User Manual HERE



EG4 LL Lithium Battery (V2) | 24V 200AH | Server Rack Battery

Discover unmatched performance and durability with the upgraded EG4 LL 24V 200AH Battery. Designed to withstand over 7,000 deep charge and discharge cycles at 80% Depth of Discharge (DoD), it offers a lifespan of more than 15 years. Equipped with a robust 200A built-in BMS, this battery supports high-power charge and discharge capabilities and is backed by a 10-year warranty. With a 5.12kWh storage capacity, it includes dual onboard fire arrestors for enhanced safety in high-risk environments.

Stay informed with real-time battery statistics via Bluetooth connectivity, accessible through a dedicated app and PC monitoring software. Additionally, an integrated LCD touchscreen provides at-a-glance monitoring. The battery supports closed-loop communications with multiple inverter brands and allows for parallel connections of up to 16 units, delivering a maximum system capacity of 81.9kWh while maintaining seamless BMS communication.

Includes: (1) 1 foot RS485 Communication Cable and (1) Set of Parallel Cables per battery. (1) RS485 USB Battery Comm Cable PER (6) BATTERIES


EG4 LL Lithium Battery (V2) | 24V 200AH

EG4 LL Lithium Battery 24V 200Ah Specs & Features

  • Voltage: 25.6V
  • Capacity: 200Ah
  • Dimensions: 6.1 in.×19 in.×20.2 in
  • Weight: 99.2 lbs
  • Design Life: +15 Years at 80% DoD
  • Communications: RS485/CAN: Schneider, Sol-Ark, Victron, Growatt, EG4

EG4 LL Lithium Battery Features

  • Rated for 7000 deep charge & discharge cycles
  • 15-year life with 80% depth of discharge daily, designed for up to 20-year life
  • Tier One, A+ Cell Composition, 99% Efficiency LiFePo4 16-Cell Pack
  • Dual Onboard automatic fire arrestors
  • Failsafe operation in high-risk environments and to protect against rare hardware failure on high voltage solar charge controllers
  • Enable expanded communication for existing V1 EG4-LL Battery Banks by using a new V2 EG4-LL Battery as your master battery
  • Parallel up to 16 batteries
  • On-board LCD Screen
  • PC Monitoring Software
  • Lifetime firmware updates
  • Dual On-board Fire Arrestors
  • Environmentally Friendly & Lead-Free

Your Satisfaction with EG4 is Guaranteed:

  • 10-Year Limited Warranty
  • Lowest Price Guarantee
