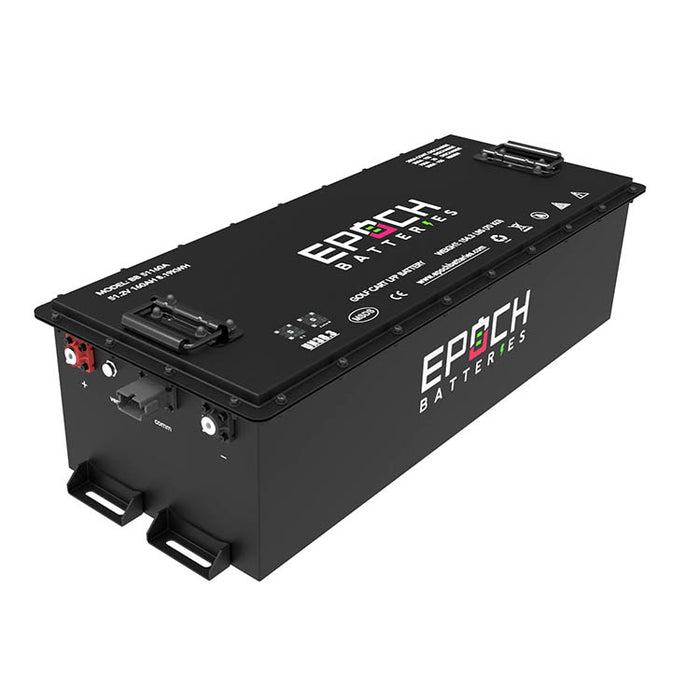

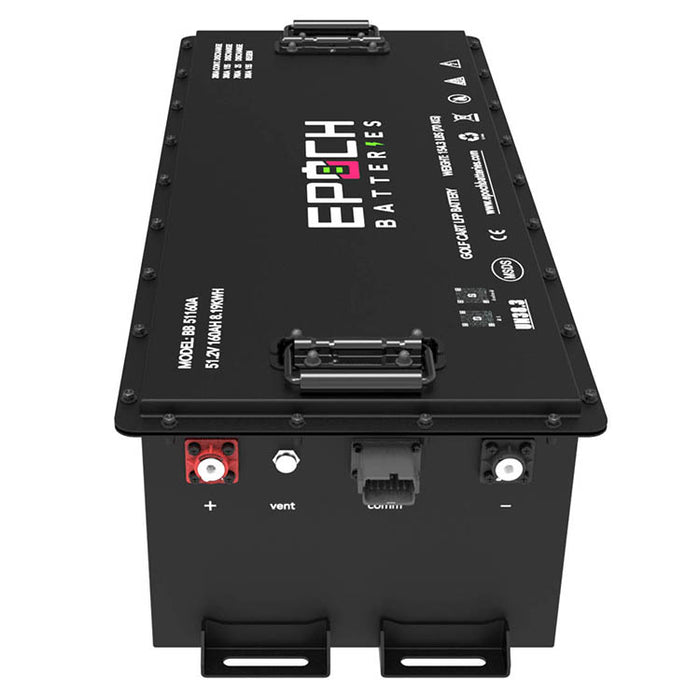

48V 160Ah Lithium (LiFePO4) Golf Cart Battery - Complete Kit
Upgrade your golf cart with the Complete Lithium Conversion Kit — a powerful, all-in-one solution designed for maximum
performance and reliability. This kit includes a 48V 15A lithium charger, a battery gauge, and a 12V converter, along
with cart-specific mounting brackets for a seamless and secure installation. With Bluetooth connectivity for both iOS
and Android devices, you can monitor battery performance in real-time and receive over-the-air firmware updates to
keep your system optimized. Built to handle demanding applications, it delivers an impressive 200A max continuous
discharge and peak capabilities of 300A at 15 seconds and 700A at 2 seconds.
Engineered for durability and long-term performance, the system supports a 100A max continuous charge and a 300A peak
charge/regen at 15 seconds, allowing for rapid recovery and efficient energy use. With a 3,500-cycle lifespan and an
industry-leading 11-year warranty, this kit offers dependable power for years to come. Whether you're looking to boost
acceleration, extend run times, or improve the overall efficiency of your cart, the Complete Lithium Conversion Kit
delivers cutting-edge technology and proven reliability in one comprehensive package.
Features

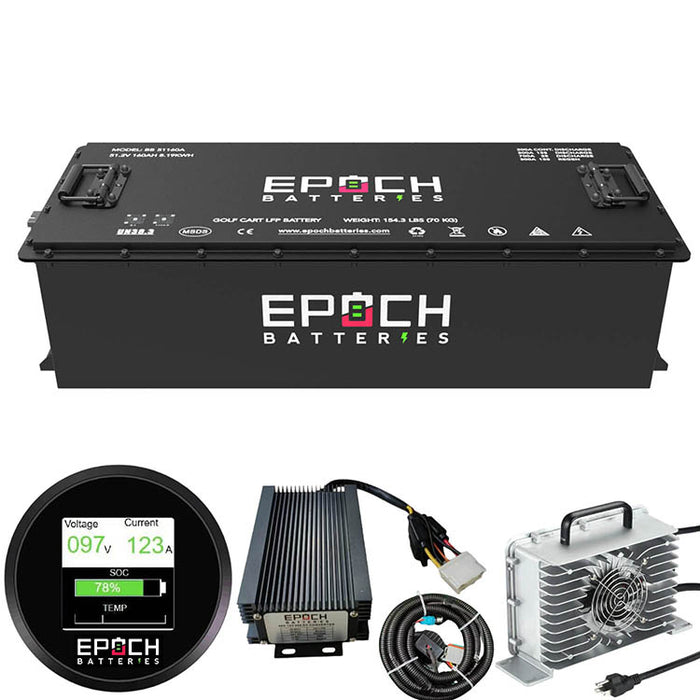

- Complete Lithium Conversion Kit

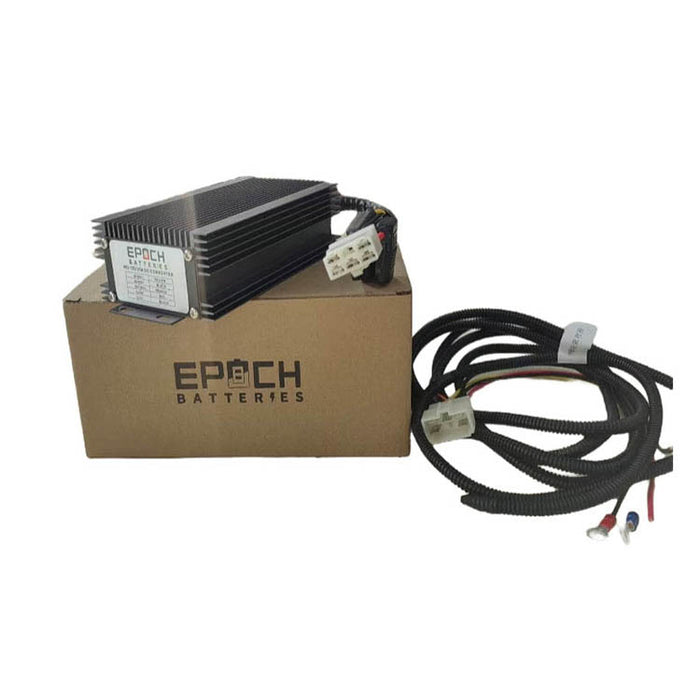

- 48V 15A Lithium Charger, Battery Gauge, 12V Converter INCLUDED
- Cart Specific Mounting Brackets INCLUDED
- Bluetooth App (iOS & Android)
- Over the air firmware updates available
- 200A Max Continuous Discharge
- 300A @ 15s, 700A @ 2s Peak Discharge
- 100A Max Continuous Charge
- 300A @ 15s Peak Charge/Regen
- 3,500 Cycle Life
- 11 Year Warranty
Weight & Dimensions
- Weight: 155lbs
- Length: 31.5 (inches)
- Width: 13.4 (inches)
- Height: 9.3 (inches)
Specs
- Configuration
- Cell Configuration: 1P16S
- Chemistry: LiFePO4
- Current
- Ah Capacity: 160Ah
- Max Continuous Discharge Amps: 200A
- Max Charge Current Amps: 100A Continuous, 300A @ 15s
- Max Discharge Peak Current Amps: 300A @ 15s, 700A @ 2s
- Series | Parallel: Max (2) in Parallel
- Voltage
- Voltage: 51.2V
- Max Charge Voltage: 58.4V
- Operating Voltage Range: 40 - 58.4V
- Temperature
- Charge Temp Range: 0°C (32°F) / 55°C (131°F)
- Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
- Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Recommended Charging Settings
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable
of being programmed for the following specifications. Charging components can include, but are not limited to
converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
-
Bulk/Absorption: 14.2V – 14.6V
-
Absorption Time: Two batteries in parallel connections require 30 minutes (200Ah)
-
Float: 13.4V – 13.8V
-
Equalization: 14.4V / Disabled
-
Temperature Compensation: 0 / Disabled
-
Charge Rate: 50% of the battery or battery bank capacity
-
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
-
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
-
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify
it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable.
Consult your charger's manual or the manufacturer.
