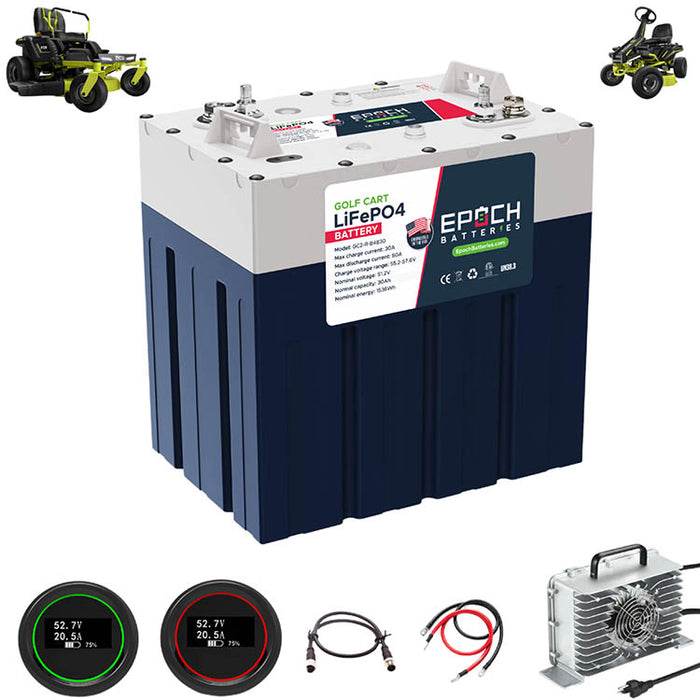

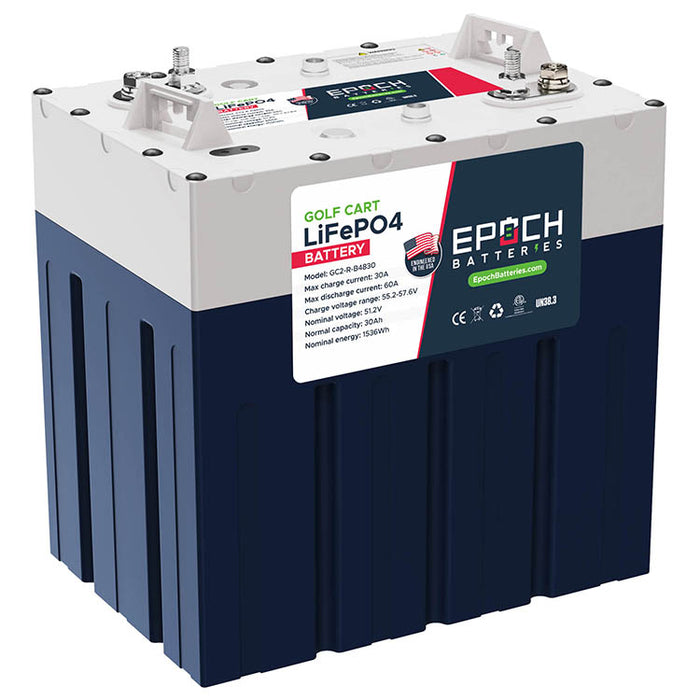

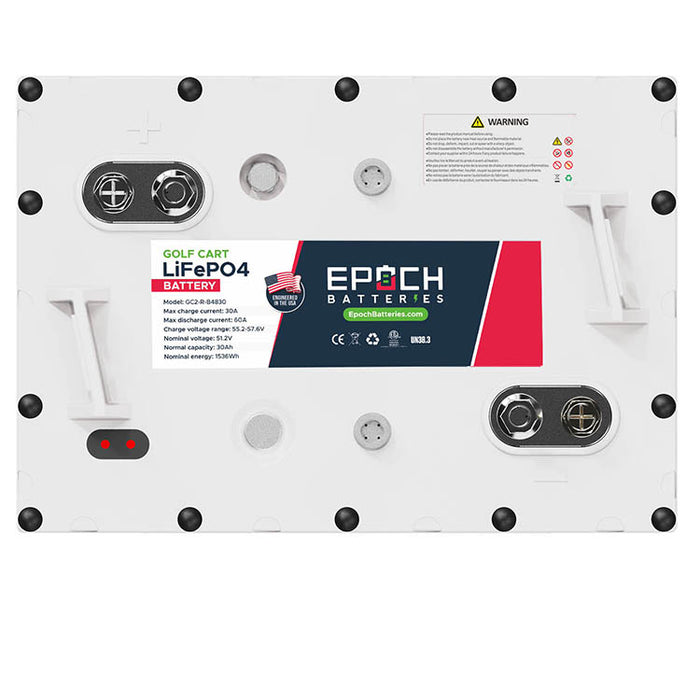

48V 30Ah Ryobi Electric Lawn Motor - Replacement Lithium Battery Kit
Upgrade your lawn care equipment with the power and reliability of the 48V 30Ah Ryobi Electric Lawn Mower Lithium
Battery Kit. Designed specifically for 48V Ryobi electric lawn mowers (not compatible with golf carts), this advanced
LiFePO4 battery offers double the usable capacity compared to traditional lead-acid batteries, delivering 30Ah at 100%
depth of discharge. It features a 60A max continuous discharge rate and a 100A peak discharge at 10 seconds, ensuring
consistent, high-performance output. With the included 48V 15A charger, you can achieve a full charge from 0% to 100%
in just two hours, getting you back to work faster. Built tough with an IP67 dustproof and waterproof rating, this
battery is ready for use in all environments.
Packed with intelligent technology, the battery features CAN Bus communication for synchronized operation across
modules and a built-in Smart Battery Management System (BMS) that protects against overcharging, over-discharging,
overcurrent, short circuits, and extreme temperatures. With 4,000+ maintenance-free cycles and an 11-year manufacturer
warranty, it’s a long-lasting, low-maintenance upgrade you can count on. Whether you’re replacing a worn-out system or
upgrading for better performance and efficiency, this lithium battery kit offers superior reliability, faster
charging, and longer run times for all your lawn care needs.
Features
- Compatible with 48V RYOBI Electric lawn mowers (NOT FOR GOLF CARTS)
- LiFePO4 Chemistry
- 30Ah Capacity (100% depth of discharge, 2X that of lead acid they are replacing)
- 60A Max Continuous Discharge (100A 10S Discharge)
- 0 to 100% Charge in 2 hours with included 48V 15A Charger
- IP67 Rated, Dust and WATERPROOF
- CAN Bus Communication allows battery modules to work in sync
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- 4000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
Weight & Dimensions
- Weight: 33 (LBS)
- Length: 10.25 (inches)
- Width: 7 (inches)
- Height: 11 (inches)
Specs
- Configuration
- Cell Configuration: 16S
- Chemistry: LiFePO4
- Current
- Ah Capacity: 30Ah
- Max Continuous Discharge Amps: 60A
- Max Charge Current Amps: 30A
- Max Discharge Peak Current Amps: 100A (10 Seconds)
- Series | Parallel: Max (10) in Parallel = 300 Amp Hours
- Voltage
- Voltage: 51.2V
- Max Charge Voltage: 57.6V
- Operating Voltage Range: 40 - 57.6V
- Temperature
- Charge Temp Range: 0°C (32°F) / 55°C (131°F)
- Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)
- Storage Temp: 0°C (32°F) / 30°C (86°F) (<6 Months)
Recommended Charging Settings
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable
of being programmed for the following specifications. Charging components can include, but are not limited to
converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
-
Bulk/Absorption: 14.2V – 14.6V
-
Absorption Time: Two batteries in parallel connections require 30 minutes (200Ah)
-
Float: 13.4V – 13.8V
-
Equalization: 14.4V / Disabled
-
Temperature Compensation: 0 / Disabled
-
Charge Rate: 50% of the battery or battery bank capacity
-
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
-
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
-
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify
it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable.
Consult your charger's manual or the manufacturer.
