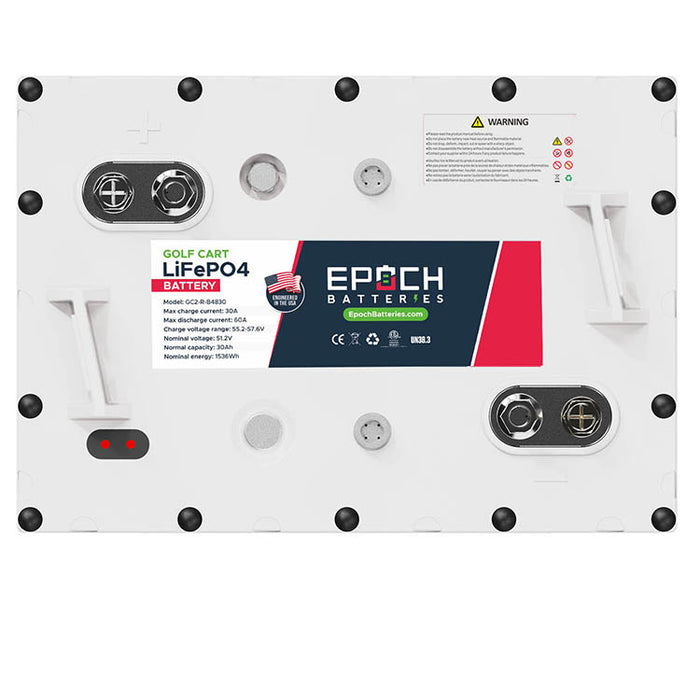

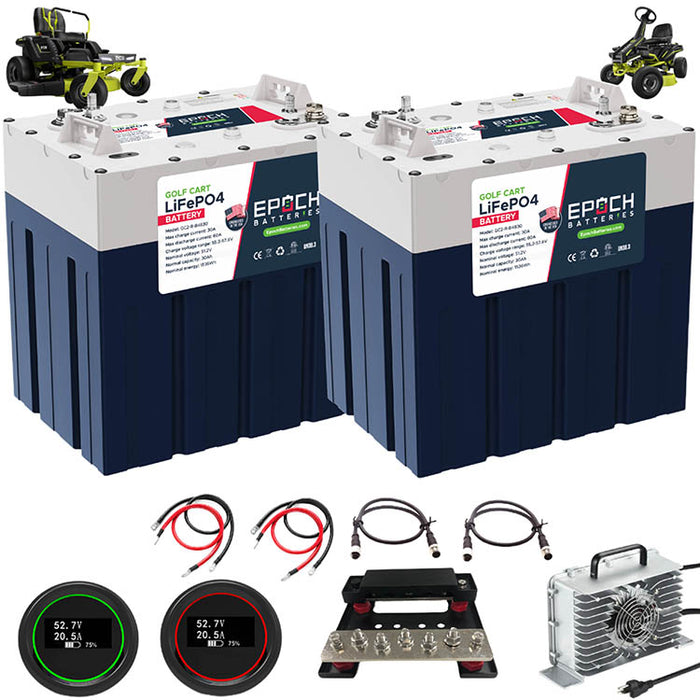

48V 60Ah Ryobi Electric Lawn Motor - Replacement Lithium Battery Kit
Power your equipment with confidence using the 48V 60Ah Ryobi Electric Lawn Mower – Replacement Lithium Battery Kit.
Specially designed for 48V Ryobi electric lawn mowers, this advanced LiFePO4 battery delivers double the usable
capacity compared to traditional lead-acid batteries, offering 60Ah at 100% depth of discharge. With a 120A max
continuous discharge rate and a 200A peak at 10 seconds, it provides the high-output performance needed for demanding
lawn care tasks. The included 48V 15A charger enables a full charge from 0% to 100% in just four hours, minimizing
downtime. Built to withstand tough environments, the battery is IP67-rated for dust and waterproof protection and
utilizes CAN Bus communication for synchronized operation between modules.
Engineered with a smart Battery Management System (BMS), the kit offers comprehensive protection against overcharge,
over-discharge, overcurrent, short circuits, and extreme temperatures. Designed for durability and efficiency, it
boasts a maintenance-free 4,000+ cycle life and is backed by an industry-leading 11-year manufacturer warranty.
Whether you're replacing a worn-out lead-acid system or upgrading to a more powerful, efficient solution, this lithium
battery kit delivers the reliability and performance to keep your mower running at its best season after season.
Features
- Compatible with 48V RYOBI Electric lawn mowers
- LiFePO4 Chemistry
- 60Ah Capacity (100% depth of discharge, 2X that of lead acid they are replacing)
- 120A Max Continuous Discharge (200A 10S Discharge)
- 0 to 100% Charge in 4 hours with included 48V 15A Charger
- IP67 Rated, Dust and WATERPROOF
- CAN Bus Communication allows battery modules to work in sync
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- 4000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
Additional Information
- M8 Terminals - Torque Tension Recommendation is 8-12N·M
- Pack Certifications: UN38.3, CE
- Cell Certifications: UL1642, UL2580, UN38.3
Recommended Charging Settings
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is
capable of being programmed for the following specifications. Charging components can include, but are not limited
to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
-
Bulk/Absorption: 14.2V – 14.6V
-
Absorption Time: Two batteries in parallel connections require 30 minutes (200Ah)
-
Float: 13.4V – 13.8V
-
Equalization: 14.4V / Disabled
-
Temperature Compensation: 0 / Disabled
-
Charge Rate: 50% of the battery or battery bank capacity
-
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
-
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
-
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify
it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable.
Consult your charger's manual or the manufacturer.
