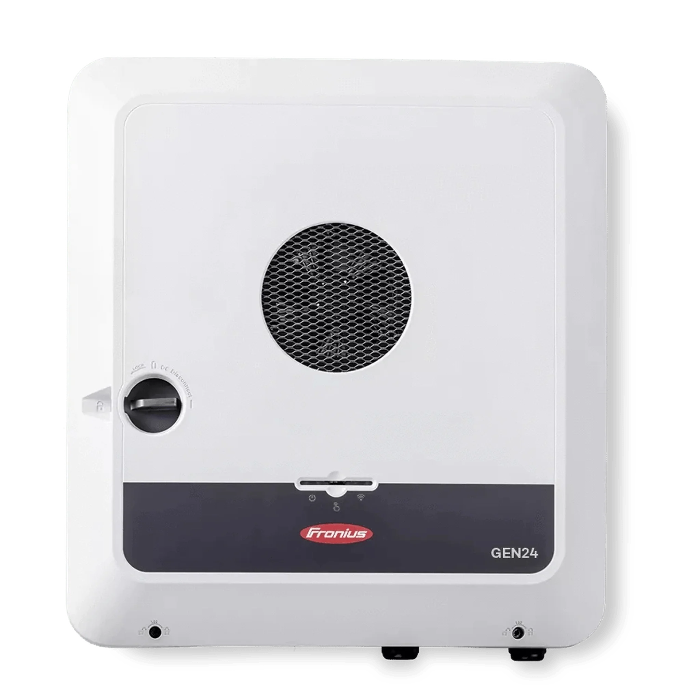

Fronius | 5.0kW Primo Gen24 Inverter, 208/240 VAC, 1-Phase, 200 - 480 VDC MPPT

Meet the Fronius GEN24, a game-changing single-phase inverter for residential solar systems. With integrated backup capabilities, this genius device keeps your essential appliances powered even when the sun isn't shining. Its intelligent software and flexible system design make it a breeze to achieve long-term energy independence and optimized solar yields. Plus, it's designed with both installers and homeowners in mind, balancing efficiency and convenience while promoting sustainability. The Fronius GEN24 is built to last, with active cooling technology and a robust design that can withstand the elements.

Number of MPP trackers	2
PV input power	5150 W
Feed-in start voltage (Udc start)	80 V
Min. MPP voltage (U mpp min)	230 V
Max. MPP voltage (U mpp max)	480 V
Max. switchover time PV-Point	17 s
Max. switchover time Full Backup	17 s
Mains Frequency	60 1/s, 50 1/s
Width	18.7 in
Height	20.4 in
Depth	6.5 in
Weight	33.3 lb
Weight incl. packaging	41.2 lb
Protection class	1
Overvoltage category (DC / AC)	2 / 4
Inverter design	Transformerless
Cooling	Active Cooling Technology
Installation	Indoor and outdoor installation
Min. permissible ambient temperature	-40 °C
Max. permissible ambient temperature	60 °C
DC PV connection technology	2x DC+1, 2x DC+2 and 4x DC- spring-type terminals (AWG14-8)
DC battery connection technology	1x DC+ and 1x DC- spring-type terminals (AWG 12-8)
AC connection technology	Spring-type terminals (AWG 14-8); Backup: AWG 16-8
Back-up power functions	PV Point
Sound emissions	42 dB(A)
Interference emission class	B
