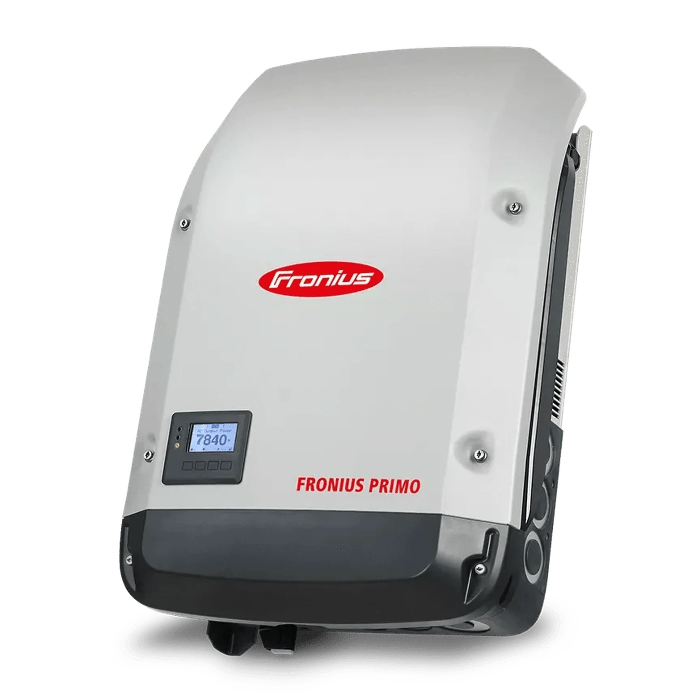

Fronius | 7.6kW Primo Lite Inverter, 240 VAC, 1-Phase, 250 - 480 VDC MPPT

Fronius | 7.6kW Primo Lite Inverter, 240 VAC, 1-Phase, 250 - 480 VDC MPPT
$2,073.32 - $2,073.32
$2,073.32
$2,073.32 - $2,073.32
$2,073.32
✓ Authorized Fronius Dealer
✓ Lowest Price Guaranteed
✓ Brand New: In Stock Ready To Ship
✓ Questions? Talk to a Fronius Expert: 1-303-876-7654
✓ PRICE MATCH GUARANTEE

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

The Fronius Primo Lite inverter is perfect for home solar installations, offering a sleek and versatile design. With its transformerless technology and intuitive mounting system, setup is fast and hassle-free. This inverter features dual MPPTs, high system voltage support, and a broad DC input range, making it ideal for maximizing solar production. Additionally, it supports a streamlined rapid shutdown solution, ensuring safe and future-ready installations.

Number of MPP trackers 2
Max. usable input current 18.0 / 18.0 A
Max. usable input current total 36 A
Max. array short circuit current 27 / 27 A
DC input voltage range 80 – 1000 V
MPP Voltage Range 250 – 800 V
Max. input voltage 1000 V
Max. output power 240 V 7600 VA
Max. output power 208 V 7600 VA
Output configuration 1~NPE 208 / 204 V
Frequency range 45 – 66 Hz
Frequency 60 Hz
Total harmonic distortion < 5%
Power factor range 0.85 – 1 ind./cap.
Max. continuous output current 240 V 31.7 A
Max. continuous output current 208 V 36.5 A
OCPD / AC breaker size 208 V 50 A
Max. efficiency 96.9%
CEC efficiency 240 V 96%
CEC efficiency 208 V 96%
UL Safety Standards UL 1741-2010, UL 1998, UL 1699B Issue 2-2013
Dimensions (W x H x D) 17.00 x 25.30 x 8.07 in
Weight (net) 47.4 lbs
Weight incl. packaging 56.9 lbs
Degree of protection NEMA 4X
Night-time consumption < 1 W
Inverter design Transformerless
Cooling Variable speed fan
Max. altitude 13120 ft @ 1000 V
Compliance & Standards UL 1741, IEEE 1547, NEC 2017, CSA, FCC
DC connection 4x DC+ and 4x DC- screw terminals (Cu/Al)
AC connection Screw terminals 12–6 AWG
Revenue Grade Metering Optional (ANSI C12.1 accuracy)
Interference emission class B
DC reverse polarity protection Yes
Anti-islanding Yes (UL 1741-2016-09, IEEE 1547, NEC 2017)
Over temperature protection Output power derating / Active cooling
AFCI Yes
Rapid shutdown compliant Yes (NEC 2014)
Ground fault protection Yes, with isolation monitor interrupter
DC disconnector Yes
Wi-Fi / Ethernet LAN 802.11 b/g/n / Solar.web, Modbus TCP, JSON
USB (Type A) Datalogging and updates
2x RS422 (RJ45) Fronius Solar Net
Datalogger & web server Included
RS485 SunSpec Modbus RTU
