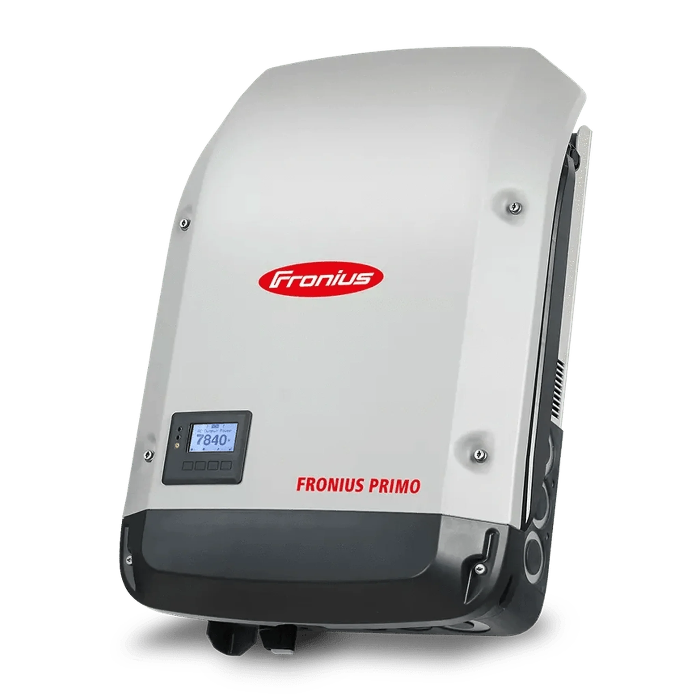

Fronius | 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT

Fronius | 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT
$2,198.06 - $2,198.06
$2,198.06
$2,198.06 - $2,198.06
$2,198.06
✓ Authorized Fronius Dealer
✓ Price Match Guarantee
✓ Ships in 1-2 Weeks
✓ Questions? Talk to a Fronius Expert: 1-303-876-7654

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

Fronius

Fronius | 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT

The Fronius | 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT is part of the Fronius lineup at Renewable Outdoors. Every detail on this page, including the downloadable spec sheet, comes straight from this product's own listing information.

Fronius | 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT
Price Match Guarantee
Authorized Fronius Dealer
Genuine Fronius Equipment
Free Shipping
0% APR Financing via Affirm
Talk to a Human: (303) 876-7654

Why the Fronius | 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT

Number of MPP trackers

2

Max. usable input current

18.0 / 18.0 A

Max. usable input current total

36 A

Max. array short circuit current

27 / 27 A

DC input voltage range

80 - 600 V

MPP voltage range

270 - 480 V

Fronius | 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT Specifications

Number of MPP trackers 2
Max. usable input current 18.0 / 18.0 A
Max. usable input current total 36 A
Max. array short circuit current 27 / 27 A
DC input voltage range 80 - 600 V
MPP voltage range 270 - 480 V
Max. input voltage 600 V (1000 V optional)
Max. output power 240 V 8200 VA
Max. output power 208 V 7900 VA
Output configuration 1~ NPE 208 / 240 V
Frequency range 45 - 66 Hz
Frequency 60 Hz
Total harmonic distortion < 5 %
Power factor range 0.85 - 1 ind./cap.
Max. continuous output current 240 V 34.2 A
Max. continuous output current 208 V 38 A
OCPD/AC breaker size 208 V 50 A
Max. efficiency 97 %
CEC efficiency 240 V 96.5 %
CEC efficiency 208 V 96.5 %
UL safety standards & network regulations UL 1741-2010, UL 1998, UL 1699B Issue 2-2013
Dimensions (W x H x D) 1.42 ft x 2.11 ft x 8.05 in
Weight 47.4 lb
Weight incl. packaging 56.88 lb

Documentation & Downloads

Fronius | 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT Spec Sheet (PDF)

Price Match Guarantee

Find it cheaper at another authorized Fronius dealer? Call us before you order and we will take care of you.

Authorized Fronius Dealer

This is genuine Fronius equipment, sold and supported by Renewable Outdoors as an authorized dealer.

Help From People Who Sell These Every Day

Call (303) 876-7654. We would rather spend ten minutes sizing your system correctly than process a return later.

Fronius | 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT: Frequently Asked Questions

What is the power output of the 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT?
The 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT is rated at 8200 VA (Max. output power 240 V). Check the spec table above for the full electrical ratings before pairing it with other equipment.
What voltage does the 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT run on?
The 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT operates at 80 - 600 V (DC input voltage range). Make sure the rest of your system is built for the same voltage before ordering.
How big and heavy is the 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT?
The 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT has dimensions of 1.42 ft x 2.11 ft x 8.05 in and a weight of 47.4 lb. Plan your mounting and placement around those figures.
Is this genuine Fronius equipment?
Yes. Renewable Outdoors is an authorized Fronius dealer, and this product is genuine Fronius equipment.
Does Renewable Outdoors offer financing or price matching?
Yes. We offer 0% APR financing options through Affirm at checkout, and the 8.2kW Primo Inverter, 240 VAC, 1-Phase, 270 - 480 VDC MPPT is backed by our Price Match Guarantee — if you find it cheaper at another authorized Fronius dealer, call us at (303) 876-7654 before you order and we will take care of you.
