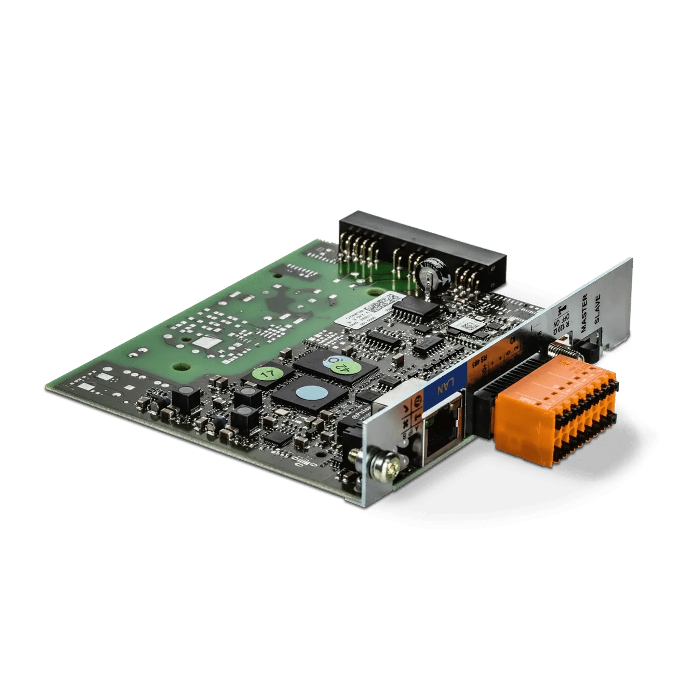

Fronius | Data Manager, 2.0 WLAN Gal/Sym/Prim

The Fronius Datamanager is the ultimate communications center for Fronius inverters, providing real-time system data and seamless integration with third-party systems. With its sleek design and user-friendly interface, this device makes it easy to monitor and manage your PV system. Plus, it's compatible with a range of Fronius inverters and can be retrofitted to existing systems. The Datamanager also features a range of interfaces, including Ethernet, RS422, and WLAN, making it easy to connect to your network. Whether you're a homeowner or a commercial installer, the Fronius Datamanager is the perfect solution for your solar monitoring needs.

Dimension / length	0.87 in
Weight incl. packaging	1.21 lb
Storage capacity	max. 4096 days
Supply voltage	12 V DC – power supplied by inverter
Energy consumption	< 2.0 W
Operating temperature range	-20°C - +65°C
Ethernet (RJ45 socket)	LAN, 10/100 MBit / Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
RS422 (RJ45 socket)	Fronius Solar.Net IN
WLAN	Wireless standard 802.11 b/g/n / Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
6 digital inputs	Interface to ripple control receiver
4 digital inputs/outputs	Interface to ripple control receiver, load management
RS485	Modbus RTU SunSpec or meter connection
