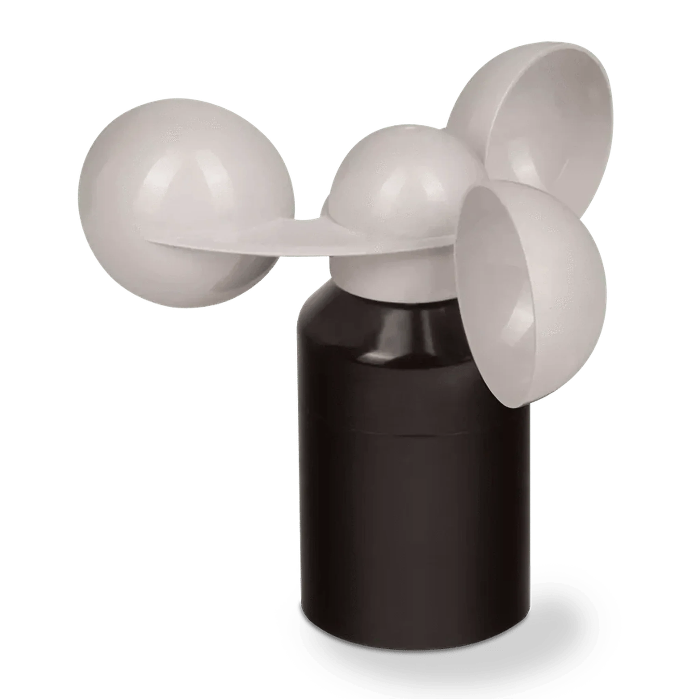

Fronius | Sensor, Wind Speed

This wind speed sensor is a game-changer for your PV system, allowing you to track additional measured values like irradiation and ambient temperature. With its cup anemometer and reed contact, it's designed to provide accurate readings. The sensor has a dimension of 3.35 inches and operates within a temperature range of -20°C to +60°C. It's also IP 54 protected, making it durable and reliable.

Dimension	3.35 in
Sensor	Cup anemometer with reed contact
Output signal	Rectangle: Low ≤ 0.5V / High ≥ 4.5 V
Calibration factor	5.22 Hz = 1 km/h, 18.79 Hz = 1 m/s
Threshold	2.5 m/s wind speed
Resolution	1 m/s, 1 km/h
Tolerance	±5% from 5 m/s upwards
Degree of protection	IP 54
Permissible ambient temperature	-20°C - +60°C
Connection cable	2 m Cu cable, exposed ends, ferrules, UV-resistant
Max. cable length	30 m
