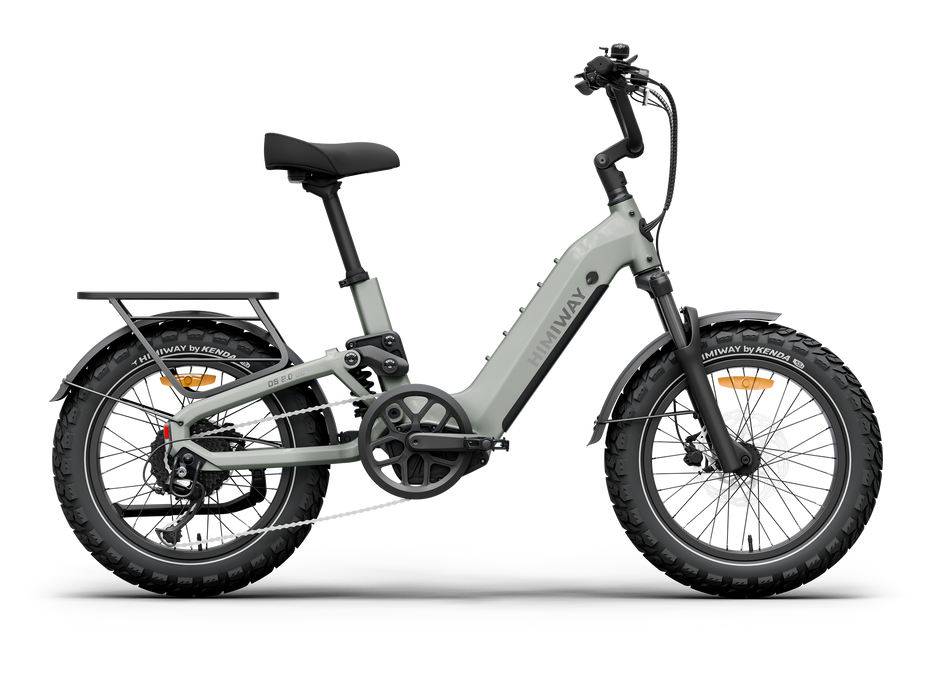

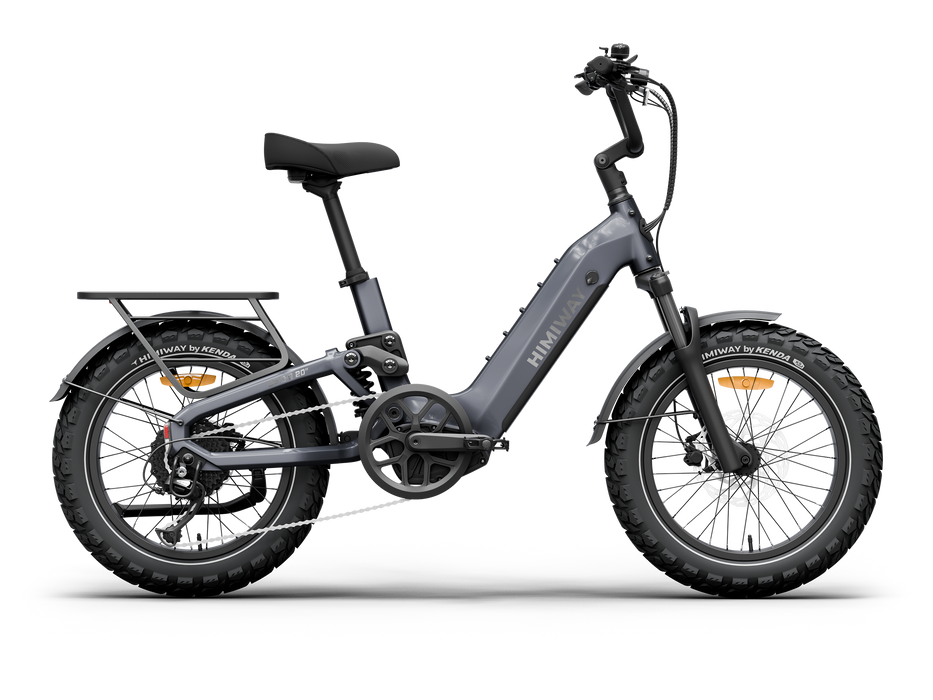

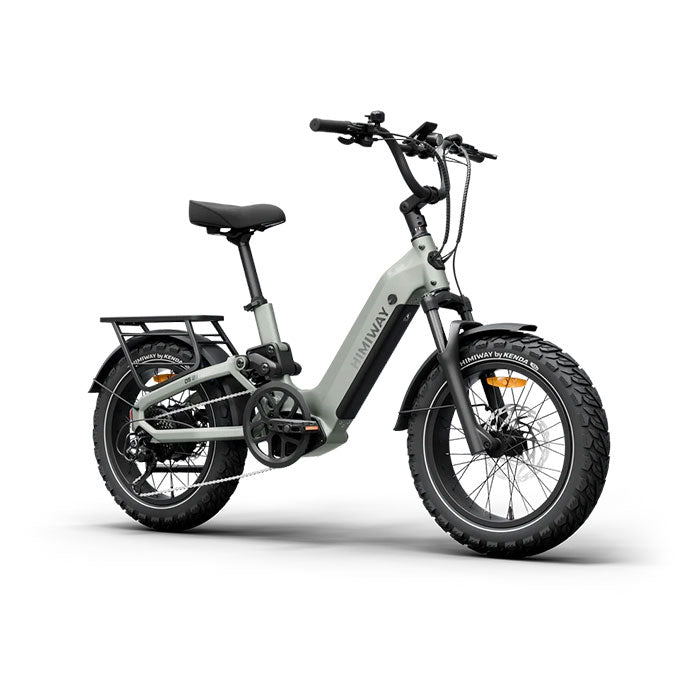

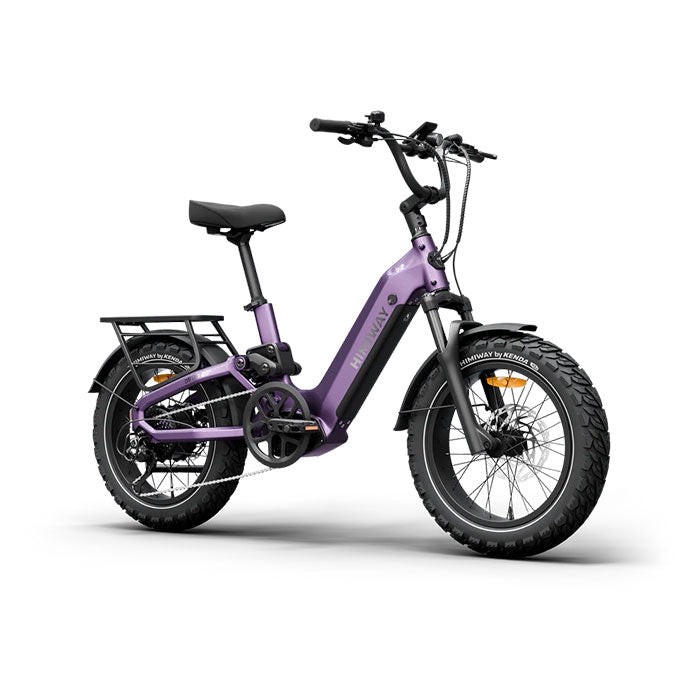

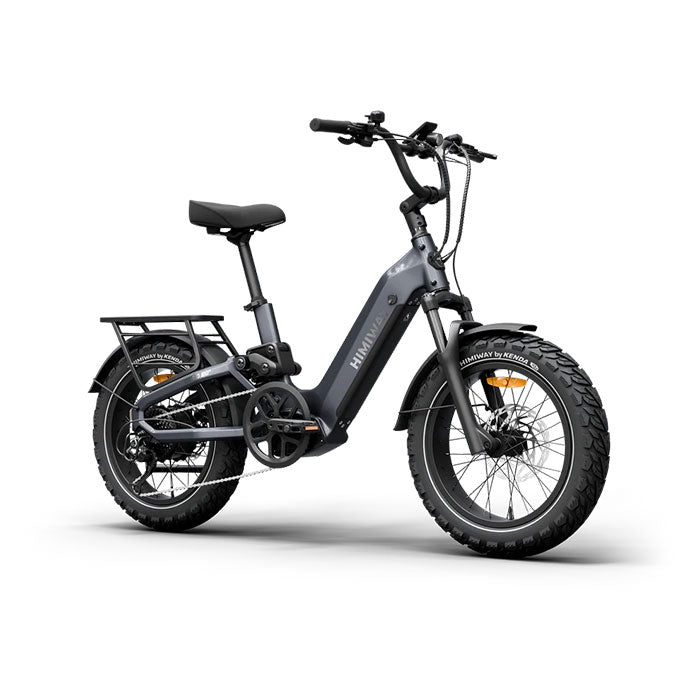

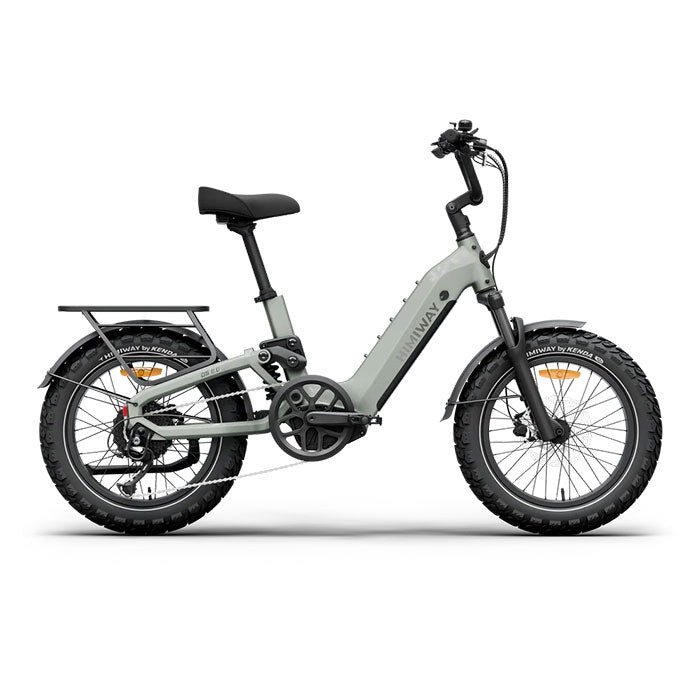

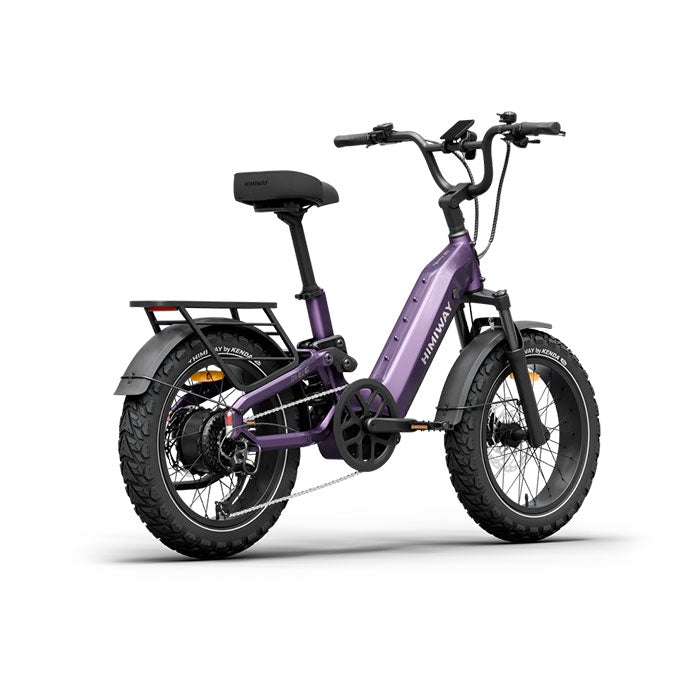

Himiway D5 2.0 20 inch step-thru electric bike

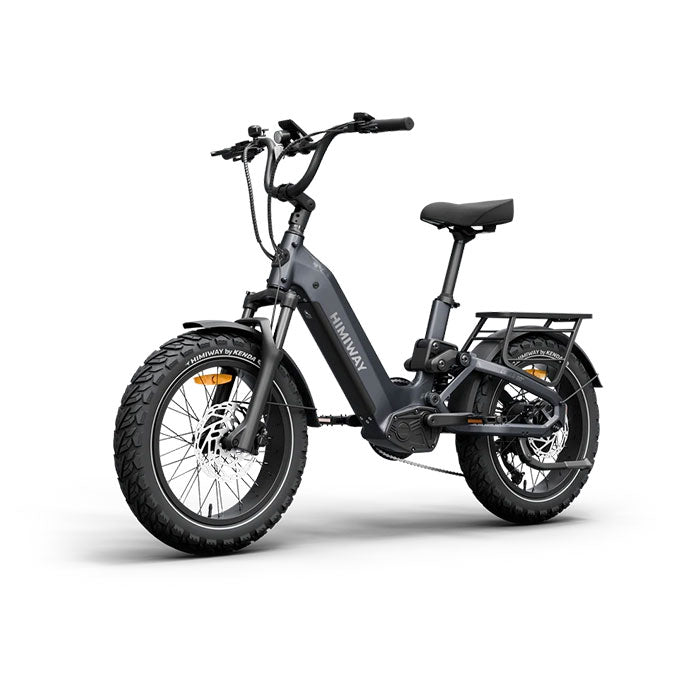

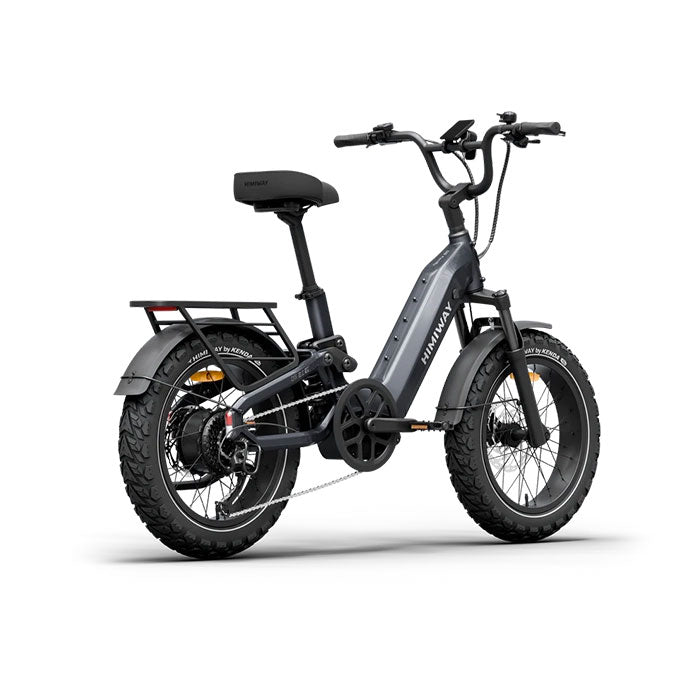

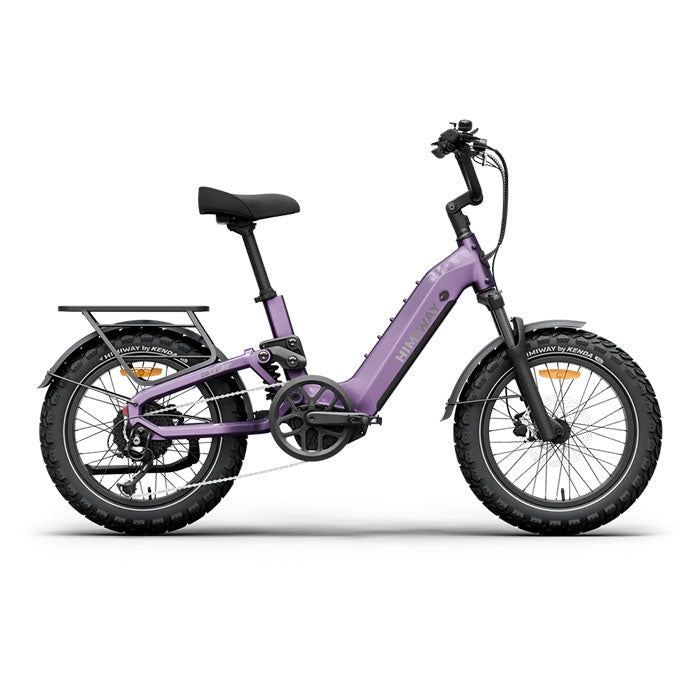

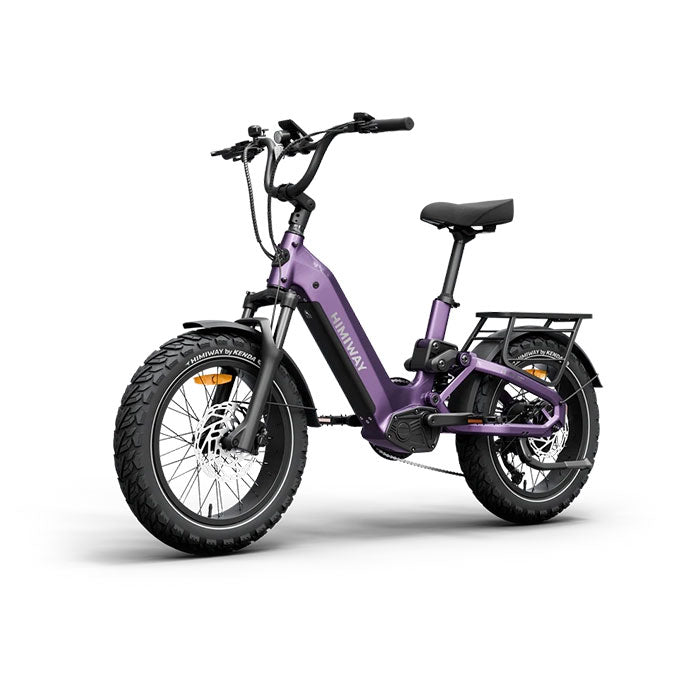

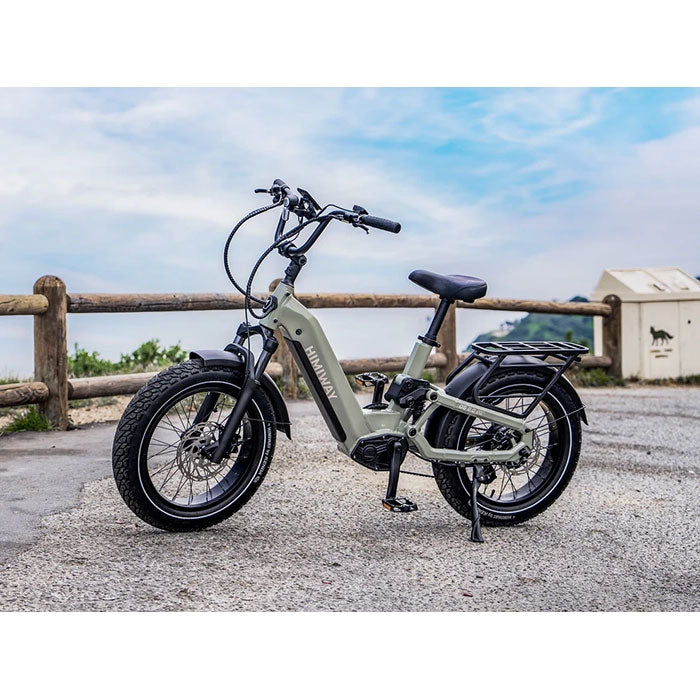

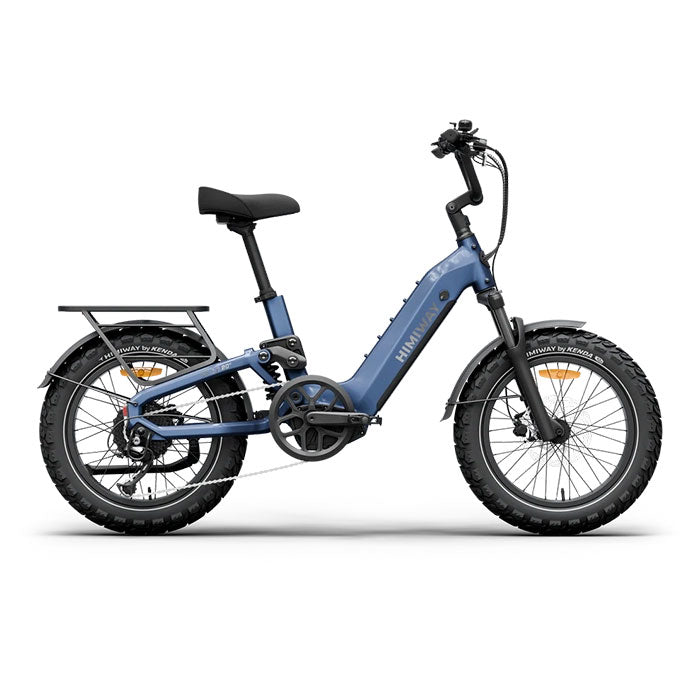

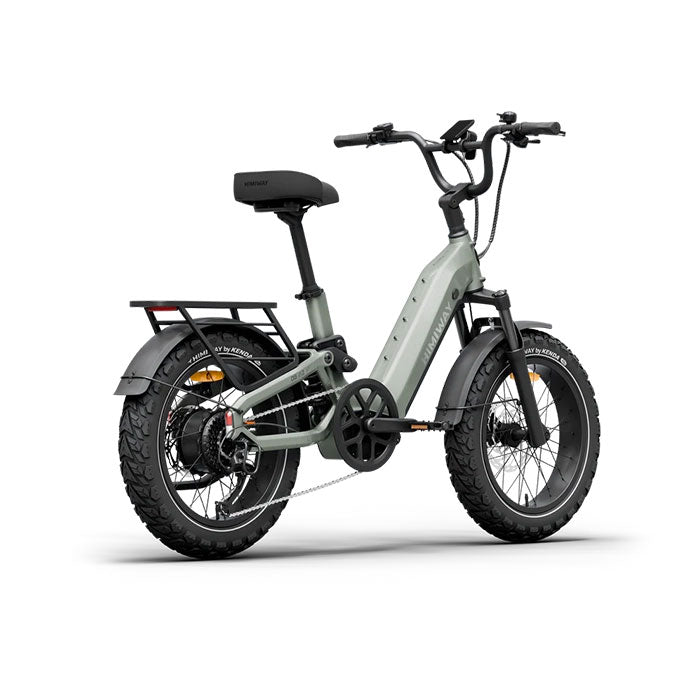

Himiway D5 2.0 20" Step-Thru Full Suspension Electric Bike
$1,799.00 - $2,199.00
$1,799.00
$1,799.00 - $2,199.00
$1,799.00

Renewable Outdoors LLC BBB Business Review

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

Color: Midnight Blue
Battery: 15Ah

The Himiway D5 2.0 20" is a step-thru, full-suspension fat-tire e-bike built around compact 20" wheels for easy handling and a low, confident stance. It's the most maneuverable bike in the D5 line, ideal for shorter riders and anyone who wants stable, comfortable power.

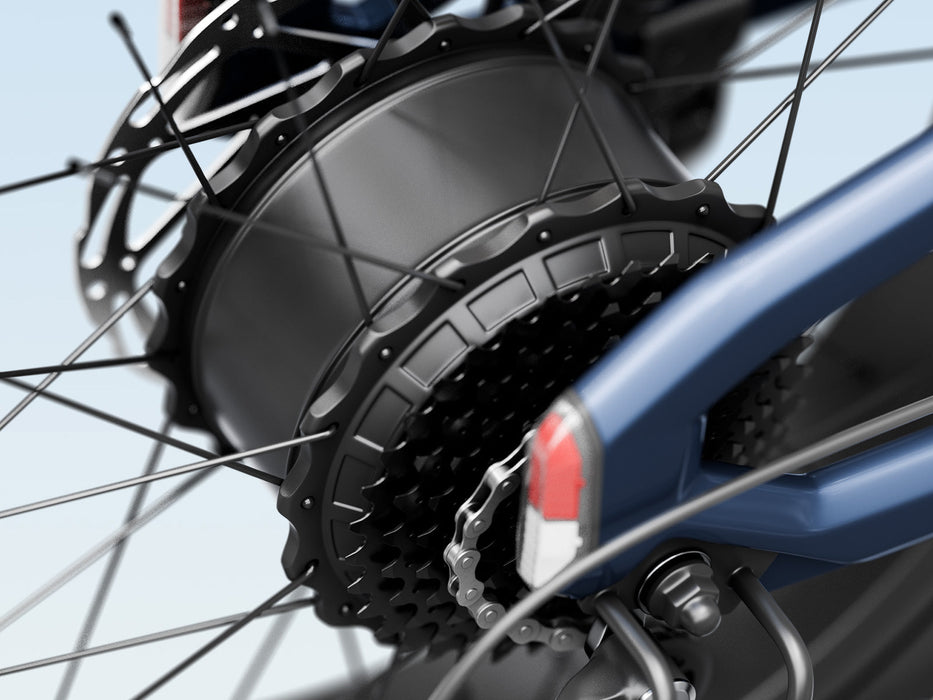

  • 750W rear hub motor (1300W peak) with 90Nm of torque reaches 20 mph (adjustable up to 28 mph) and powers easily up hills and over rough ground.

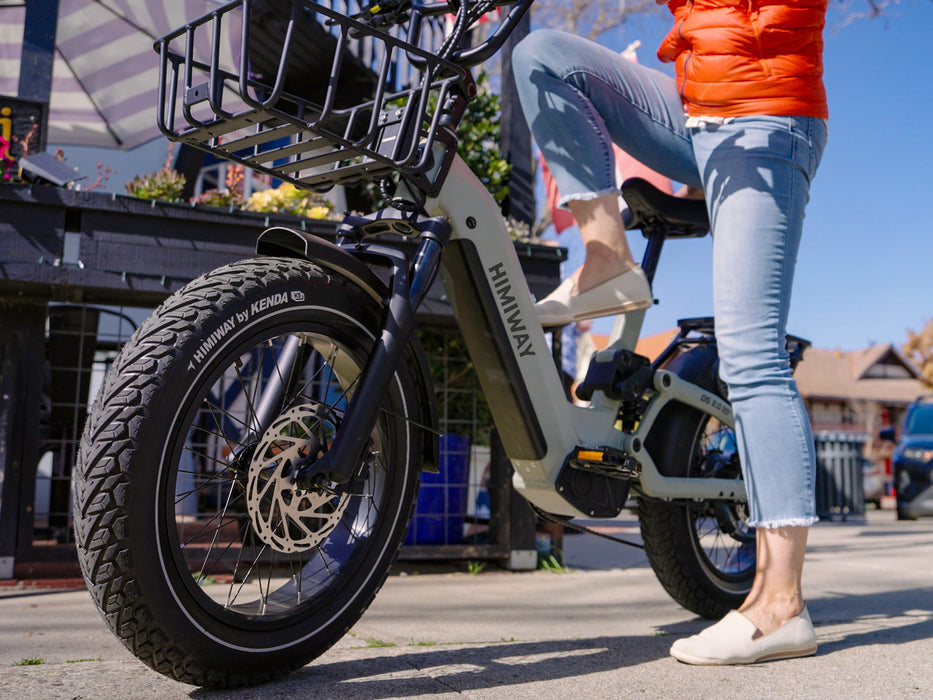

  • Low 17" standover height, compact 20" wheels, and a step-thru frame give you a lower center of gravity and easy on-and-off, with a 440 lb payload capacity.
  • 48V 15Ah battery delivers up to 40 miles on throttle and 70 miles on pedal assist, with an optional second 20Ah battery for longer rides.
  • Full suspension (90mm front fork, 100mm rear travel) plus 20 x 4.0" puncture-resistant Kenda fat tires keep the ride smooth and planted.
  • UL 2849 certified with switchable torque/cadence sensing, Smart Auto mode, hydraulic disc brakes, and integrated lighting.

Best for: Shorter riders, women, and anyone who wants an easy-to-mount, easy-to-handle e-bike without giving up power or payload. A great fit for comfortable commuting, errands, and relaxed trail rides.

What's included: Protection fender kit, rear rack, 16-in-1 repair tool, charger, and manual.

Specifications

Motor 750W rear hub (1300W peak), 90Nm
Battery 48V 15Ah, UL 2271 (optional +20Ah)
Cells Samsung/LG 21700, UL 2580
Charger 48V 3.0A fast charger
Top speed 20 mph (adjustable 4 to 28 mph)
Range (throttle) Up to 40 miles
Range (pedal assist) Up to 70 miles
Class 1 / 2 / 3 selectable
Sensor Torque / cadence switchable
Pedal assist Smart Auto + 5 PAS levels
Suspension 90mm front fork (lock-out), 100mm rear travel
Brakes Tektro hydraulic disc, 203mm front / 180mm rear
Tires 20 x 4.0" Kenda, puncture-resistant, reflective sidewalls
Drivetrain Shimano 8-speed

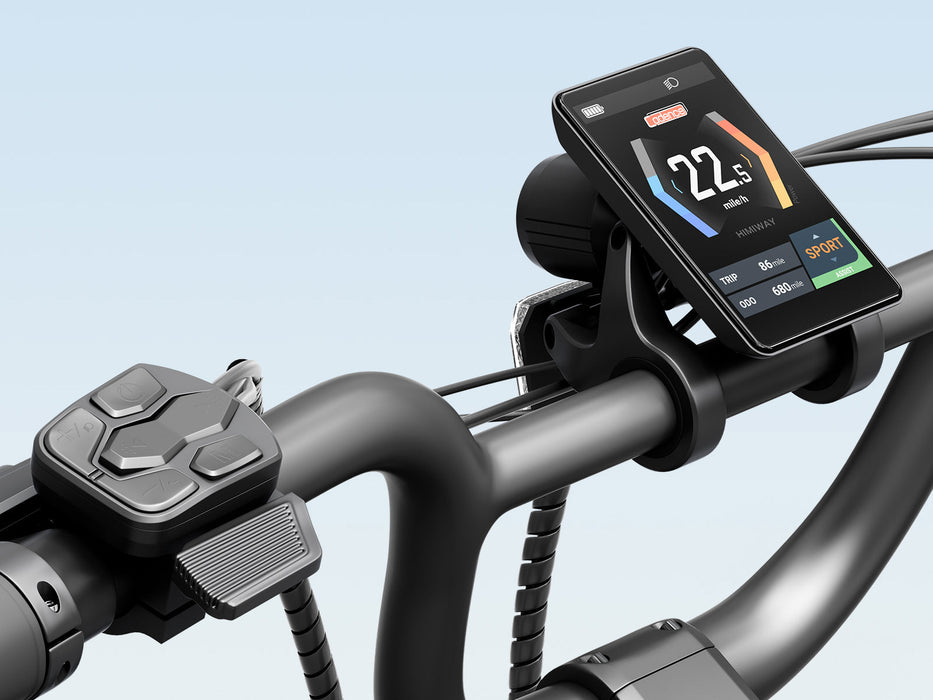

Display 3.5" full color, Bluetooth, adjustable angle
Lights 130 lux / 800 lm LED front, integrated rear
Waterproof rating IPX5 bike, IPX6 battery
Rear rack MIK HD compatible, 120 lb capacity
Weight 80 lbs
Payload capacity 440 lbs (max rider 265 lbs)
Standover height 17" (step-thru)
Rider height 4'11" to 6'3"
Certification UL 2849
Warranty 2-year manufacturer

Shipping, Warranty & Returns

  • Shipping: Ships freight or oversized ground. We coordinate delivery scheduling with you.
  • Warranty: 2-year manufacturer warranty covering the frame and all electrical components against defects under normal use.
  • Support: Arrives mostly assembled (about 2 hours to finish) with fenders, rear rack, tool, and charger included. We provide setup guidance and connect you with manufacturer support for service.
  • Returns: 15-day return window. A restocking fee may apply. Reach out before returning so we can route it correctly.

Frequently Asked Questions

How is the 20" different from the standard D5 2.0? The 20" version uses smaller, compact wheels and a step-thru frame for a lower stance, easier mounting, and more nimble handling. It carries a higher 440 lb payload and weighs less (80 lbs vs 92), while keeping the same 750W motor and battery.

Who is it best for? Shorter riders (it fits 4'11" to 6'3"), anyone who wants an easy step-over, and riders who prefer agile handling. The low 17" standover makes starts and stops easy.

What's the real-world range? Up to 40 miles on throttle and 70 on pedal assist with the 15Ah battery. Expect less with hills, heavier loads, or higher assist. The optional 20Ah battery extends it.

How fast does it go? Ships at 20 mph, adjustable up to 28 mph, with selectable Class 1/2/3 settings to match local laws.

Is it safety certified? Yes. UL 2849 certified, with a UL 2271 battery and UL 2580 cells.
