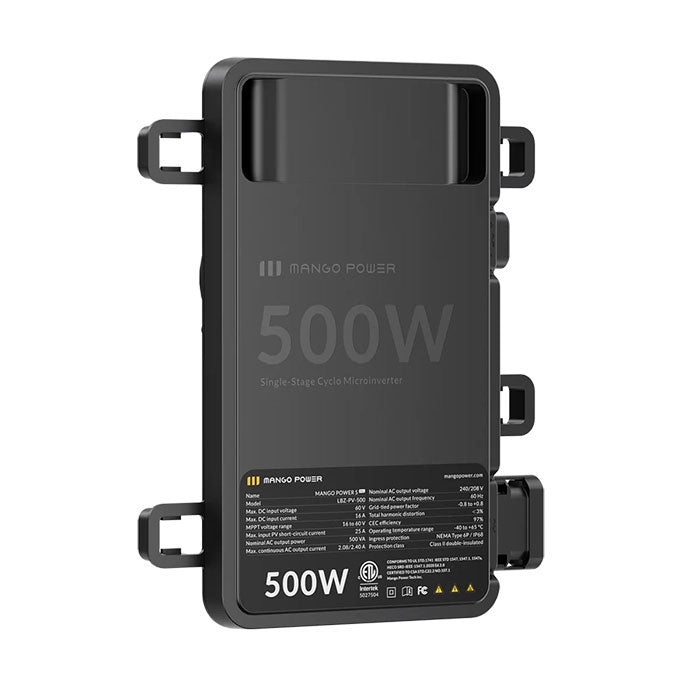

Mango Power S Pro Microinverter 500W*10 set + Zero-Export Gateway

Mango Power S Pro Microinverter 500W*10 set + Zero-Export Gateway
Save 12% Save 12%
$1,919.00
$1,919.00 - $1,919.00
$1,919.00
$1,689.00
$1,689.00 - $1,689.00
$1,689.00
✓ Authorized Mango Power Dealer
✓ Lowest Price Match Guarantee
✓ FAST & FREE Shipping: In Stock Ready To Ship
✓ Questions? Talk to a Mango Power Expert: 1-303-876-7654

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

Bring-Your-Own-Panel Microinverter Kit

Mango Power S Pro Microinverter 500W×10 Set + Zero-Export Gateway

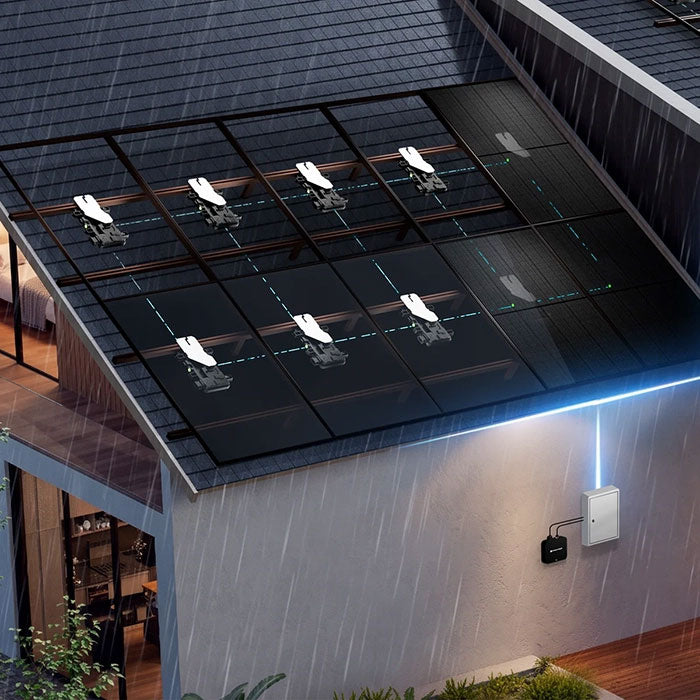

This kit is 10 Mango Power S Pro microinverters (500W each, 5000W total) plus an integrated 200A Zero-Export Gateway — no panels included, no separate smart meter needed. It's built for a customer supplying their own solar array rather than buying a full plug-and-play kit.

Each microinverter works with any third-party panel in the 16–60V DC range, and the built-in gateway prevents export back to the grid on its own. It's grid-tie only — pair it with a compatible battery system like Tesla Powerwall, Enphase, or FranklinWH if you want backup power during an outage.

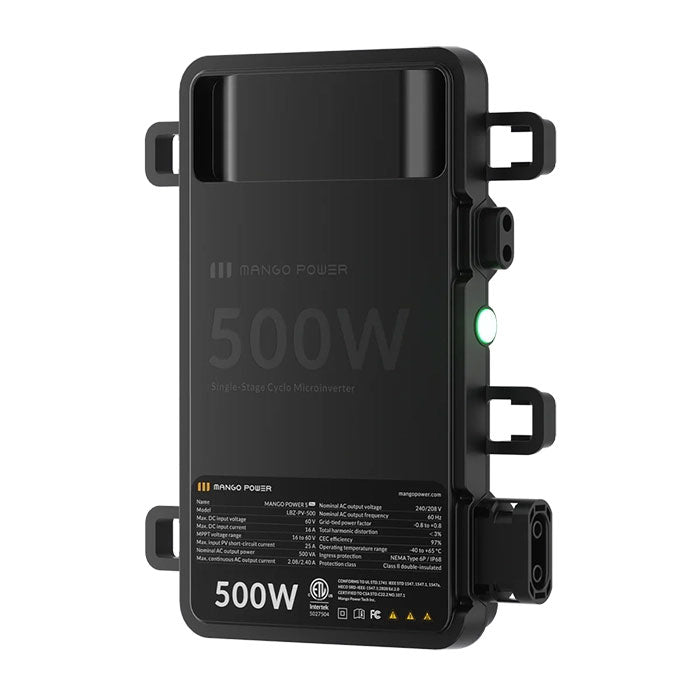

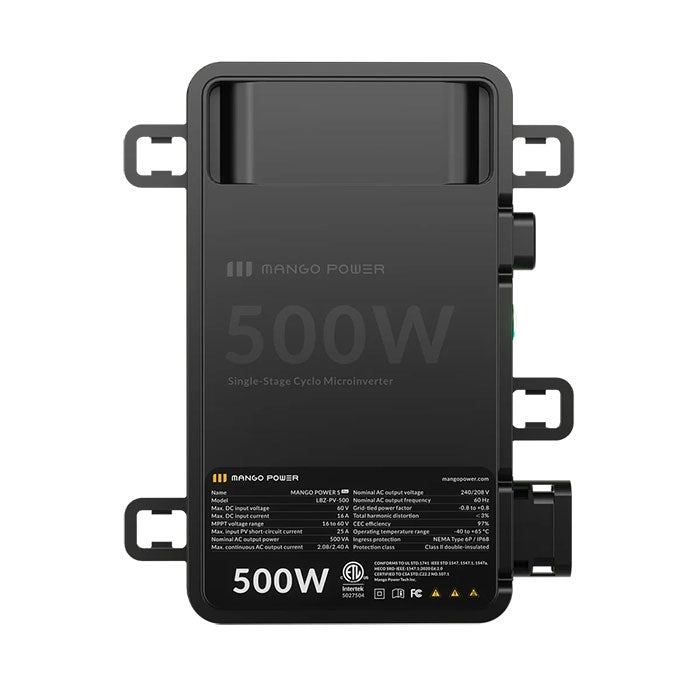

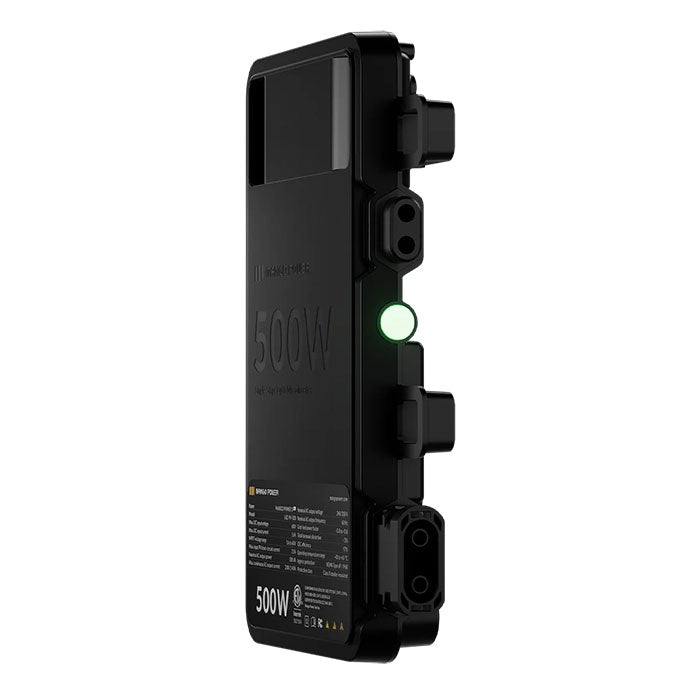

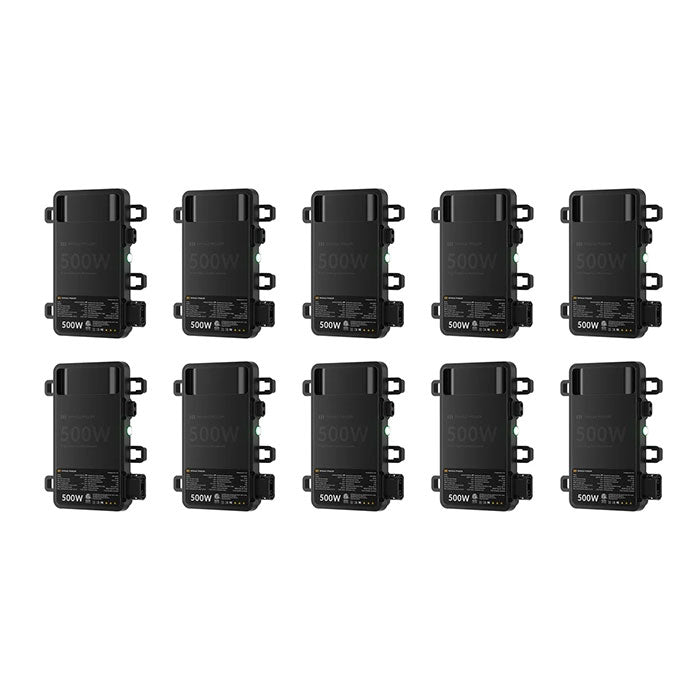

Mango Power S Pro Microinverter 500W x10 set
10 × 500W Microinverters
Bring Your Own Panels
Zero-Export Protection
25-Year Warranty
Free Shipping
Expert Support: (303) 876-7654

Why This Kit

5000W of Microinverter Capacity

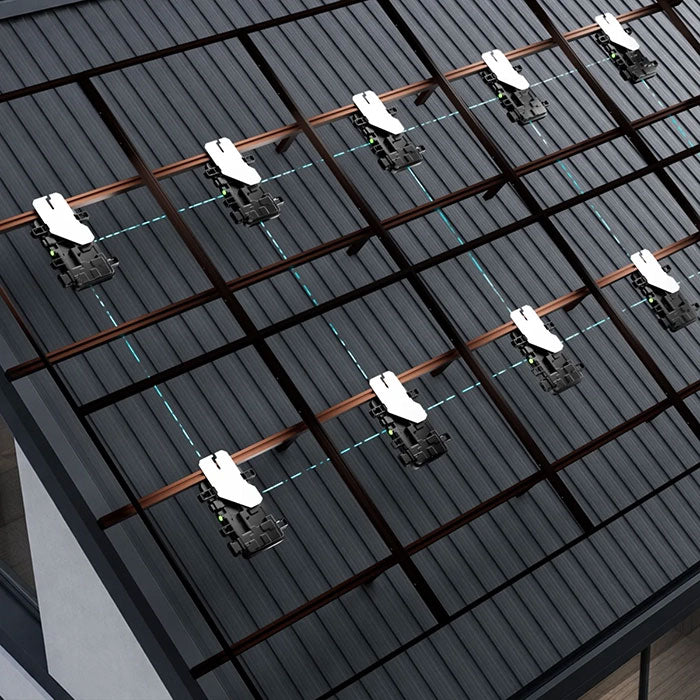

10 S Pro microinverters at 500W each, so each panel in your array converts power independently.

Works With Third-Party Panels

Compatible with any PV module in the 16–60V DC MPPT range — no proprietary panels required.

Integrated Zero-Export Gateway

The included 200A gateway handles anti-backflow protection on its own, without needing a separate smart meter.

97% CEC Efficiency

Each microinverter is rated at 97% CEC efficiency, 99.9% MPPT efficiency, with less than 3% total harmonic distortion.

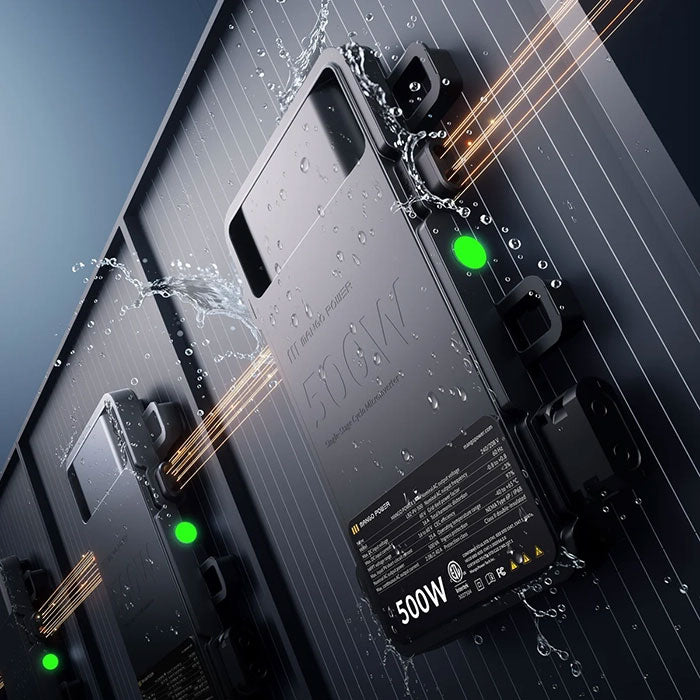

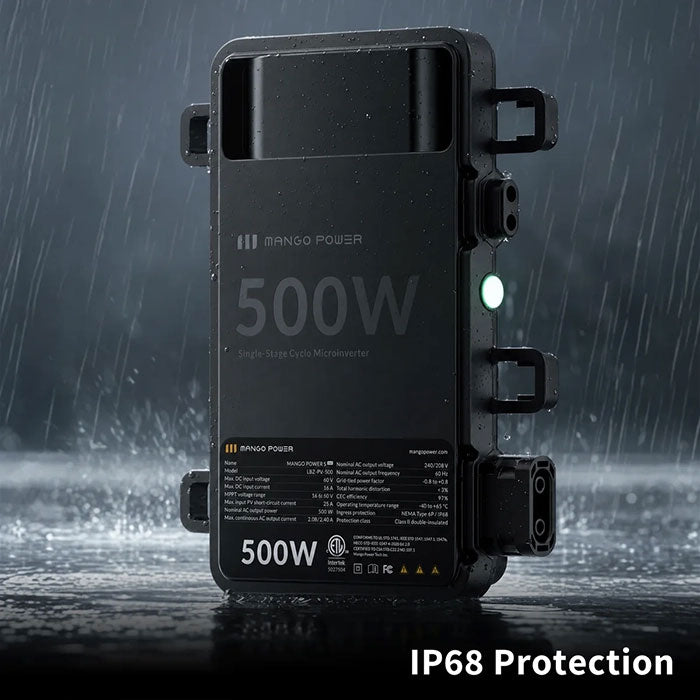

IP68, Fanless

NEMA 6P/IP68 enclosure rated from -40°C to 65°C, cooled passively with no fan.

25-Year Warranty

Backed by a 25-year warranty and a 219,000-hour design-life guarantee.

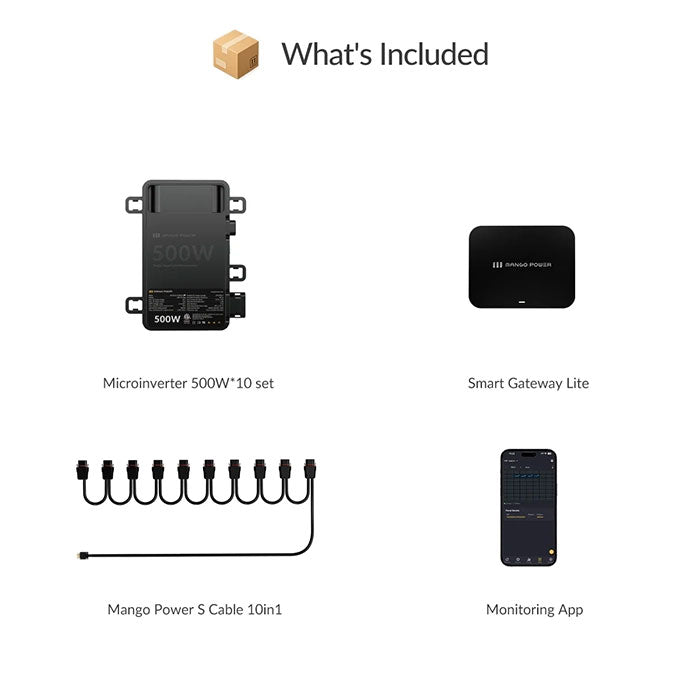

What's Included

Mango Power S Pro microinverters, included hardware

What You Get

  • 10 × Mango Power S Pro 500W microinverters
  • 1 × integrated 200A Zero-Export Gateway
  • Mounting and connection hardware

Solar panels are not included. A 240V install requires a licensed electrician and utility registration.

Full Specifications

Included 10 × 500W microinverters, integrated 200A Zero-Export Gateway
Panels Not included — bring your own array
Compatible Panels Any third-party PV module in the 16–60V DC MPPT range
Compatible Home Batteries Tesla Powerwall, Enphase, FranklinWH (Mango Power's own home battery is not listed as compatible)
Per-Microinverter Rating 500W (VA) nominal, power factor 0.99 (adjustable 0.8 leading to 0.8 lagging)
Efficiency 97% CEC, 99.9% MPPT, <3% THD
Enclosure NEMA 6P / IP68, -40°C to 65°C, fanless
Physical (per unit) 221.5 x 129.0 x 32.5mm, 1.2 kg
Communication WiFi
Installation 120V plug-and-play configurations exist; 240V hardwired installs need a licensed electrician and utility registration/inspection
Certifications CEC Listed, UL 1741-SA (CA Rule 21), UL 1741-SB (IEEE 1547:2018), CSA C22.2, anti-islanding, 100μs Rapid Shutdown
Warranty 25 years, 219,000-hour design-life guarantee

25-Year Warranty

219,000-hour design-life guarantee.

Fast, Free Shipping

Ships direct from authorized distribution with tracking provided as soon as it leaves the warehouse.

Real Solar Expertise

Call (303) 876-7654 before you order if you want help matching this to the rest of your system.

Mango Power S Pro Microinverter 500W×10 Set + Zero-Export Gateway: Frequently Asked Questions

Do I need to buy Mango Power's panels to use this?
No. These microinverters work with any third-party solar panel in the 16–60V DC range, so you can pair them with panels you already own or source separately.
Does this include a battery?
No, and it's grid-tie only — without a separate battery or energy storage system, it won't power your home during an outage. Mango Power lists Tesla Powerwall, Enphase, and FranklinWH as compatible battery systems if you want backup capability; its own Mango Power E battery is not listed as compatible with this kit.
How is this different from the 1200W Plug and Play Kit?
That kit includes panels and is a plug-in, 120V DIY system. This one is microinverters only — you supply the array — sized around a roughly 5000W system, and larger 240V installations need a licensed electrician and utility registration.
What does the Zero-Export Gateway do here?
It handles the same job as a standalone smart meter: monitoring your home's power flow and preventing surplus solar from exporting to the grid, but it's built into this kit rather than sold separately.
Can I install this myself?
Some 120V plug-and-play configurations are available for DIY installation. A 240V hardwired setup needs a licensed electrician and utility inspection/registration.
How efficient are these microinverters?
Mango Power rates them at 97% CEC efficiency and 99.9% MPPT efficiency, with less than 3% total harmonic distortion.
What's covered under warranty?
A 25-year warranty with a 219,000-hour design-life guarantee.
Do you offer financing or price matching?
Yes. We offer 0% APR financing through Affirm at checkout, and our Lowest Price Guarantee applies. If you find this Mango Power gear cheaper at another authorized dealer, call us at (303) 876-7654 before you order and we'll take care of it.
Are you an authorized Mango Power dealer?
Yes. Renewable Outdoors is an authorized Mango Power dealer, and every unit we sell ships new, in factory packaging, with Mango Power's full warranty intact.
