MRCOOL DIY 24K BTU 22.7 SEER2 5th Gen Ductless Mini Split Heat Pump System - 230V

MRCOOL DIY 24K BTU 22.7 SEER2 5th Gen Ductless Mini Split Heat Pump System - 230V
Save 14% Save 14%
$3,850.00
$3,850.00 - $3,850.00
$3,850.00
$3,329.00
$3,329.00 - $3,329.00
$3,329.00
✓ Authorized MRCOOL Dealer
✓ Lowest Price Guaranteed
✓ Brand New & FREE Shipping
✓ Questions? Talk to a MRCOOL Expert: 1-303-876-7654
✓ PRICE MATCH GUARANTEE

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

DIY 24K BTU 22.7 SEER2 5th Gen Ductless Mini Split Heat Pump System - 230V

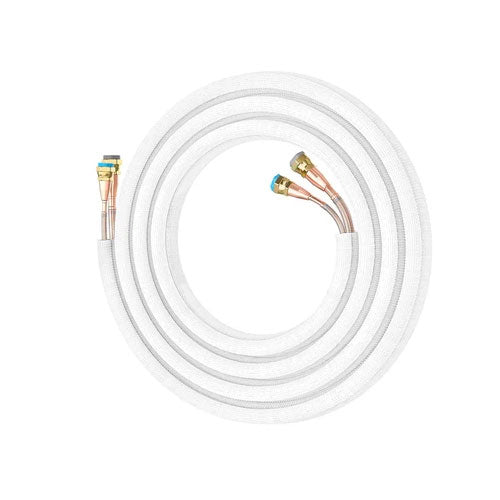

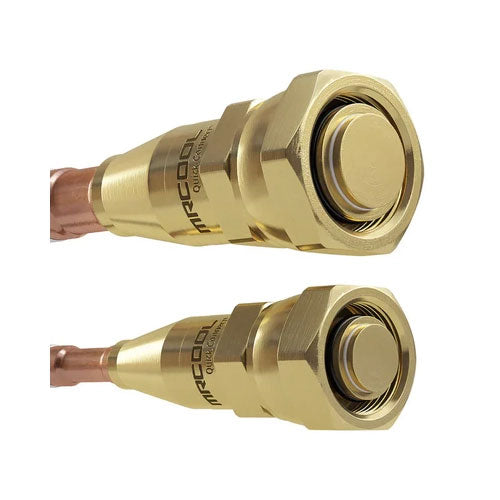

Experience year-round comfort with the 5th Generation MRCOOL® DIY® 24K BTU 22.7 SEER2 Ductless Heat Pump Single Zone Mini-Split System. Perfect for spaces up to 1,050 sq. ft., this system is engineered for quick, easy installation—no special tools or HVAC experience required. The included 25-foot DIY® QuickConnect® line set comes pre-charged with eco-friendly R-454B refrigerant, eliminating the need for vacuuming and cutting down on both installation time and cost.

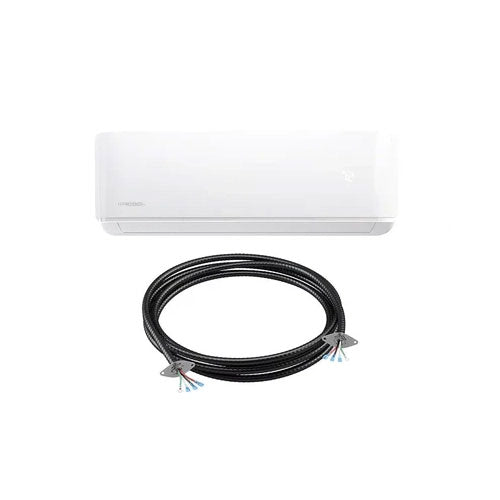

Durability and safety are built in with the included DIYPRO® cable, which removes the need for electrical conduit while offering added protection against weather and wildlife. You’ll enjoy effortless control through multiple options: a wireless remote, the SmartHVAC app for iOS and Android, or voice control via Amazon Alexa and Google Assistant.

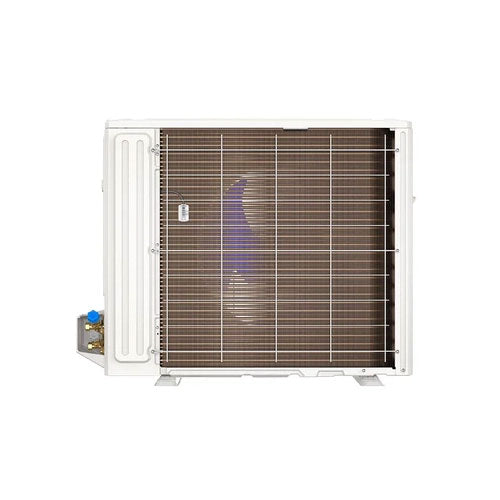

The Gold Fin® Condenser is built to last, with advanced corrosion resistance that’s ideal for coastal environments. Inside, the system’s smart remote includes the Follow Me function, which senses temperature at the remote's location for more consistent comfort. The built-in Dry Mode also acts as a dehumidifier, helping to reduce moisture and improve indoor air quality.

Backed by a best-in-class warranty—including a limited lifetime warranty, 7 years on the compressor, and 5 years on parts—this system is made for dependable, long-term performance. With advanced features, straightforward installation, and powerful efficiency, the MRCOOL® DIY® Mini-Split is a smart solution for your heating and cooling needs.

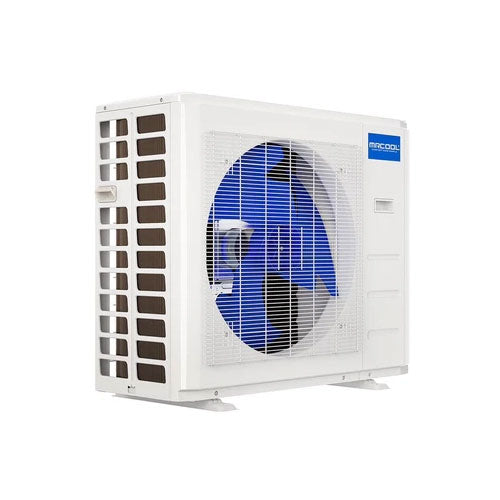

MRCOOL® 24k DIY 5th Generation Mini-Split Condenser 230v Specs

  • SEER2: 22.7
  • Tonnage: 2
  • Cooling Capacity: 23000 BTU
  • Heating Capacity: 23000 BTU
  • Voltage: 208/230
  • Phase: 1
  • Cycle: 60
  • Max Fuse Breaker: 25
  • Min Circuit Ampacity: 24
  • Zone Capacity: 1
  • Refrigerant Type: R-454B
  • Inverter: DC
  • Line Size Length: 25
  • Max Line Size Length: 164 ft
  • Dimensions: 37.01" H x 42.91" W x 19.88" D
  • Weight: 155.64 lbs

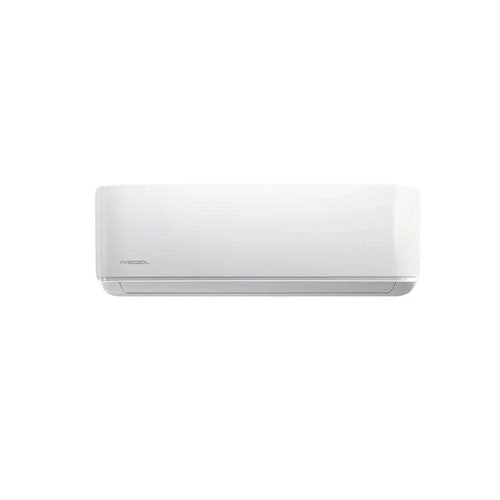

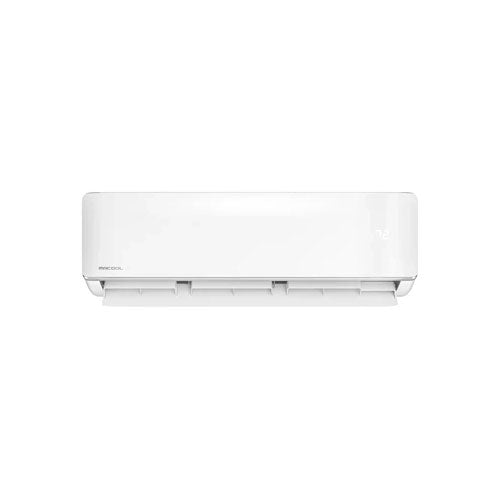

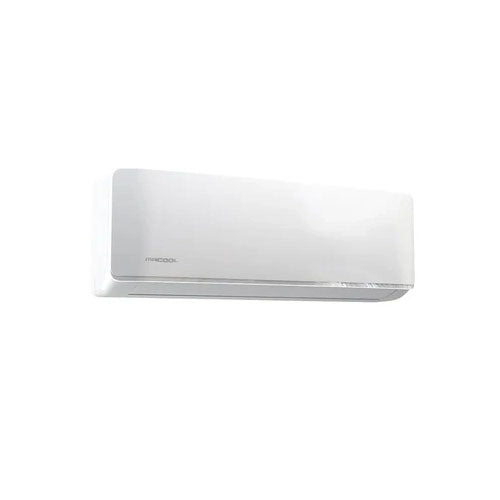

MRCOOL® 24k DIY 5th Generation Mini-split Air Handler 230v Specs

  • Tonnage: 2
  • Voltage: 208/230
  • Phase: 1
  • Cycle: 60
  • Max Fuse Breaker: 15
  • Min Circuit Ampacity: 3
  • Mount Type: Wall
  • Max Coverage Area: 1050 sqft
  • Number of Speeds: 5
  • Oscillation: Yes
  • Liquid Line Size: 3/8
  • Suction Line Size 5/8
  • Dimensions: 14.29" H x 46.73" W x 17.68" D
  • Weight: 49.82 lbs

MRCOOL DIY 24k Mini Split Features

  • NEEP ccASHP Listed
  • Intertek listed 5031495
  • Easy DIY installation
  • Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
  • Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
  • The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

Your Satisfaction with MRCOOL is Guaranteed:

  • Lowest Price Guaranteed
  • Limited 5-Year Parts Warranty
  • Limited 7-Year Compressor Warranty
