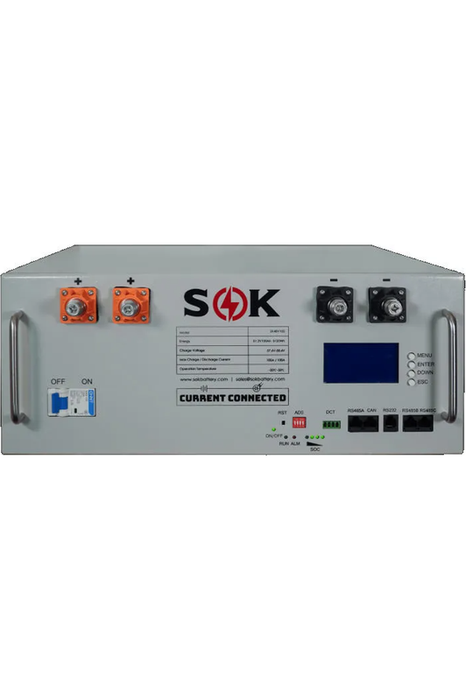

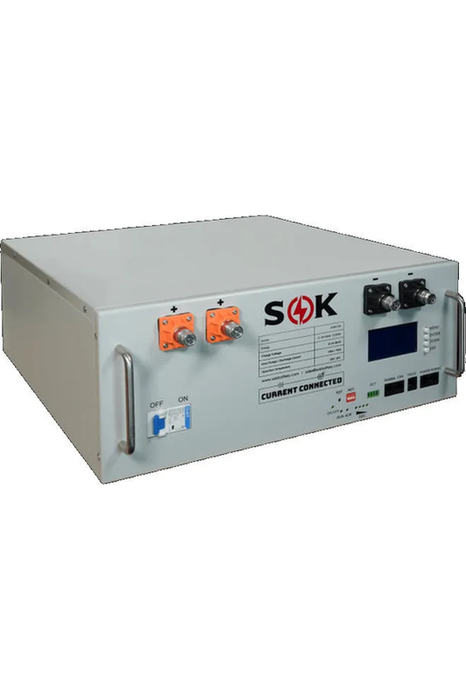

SOK Current Connected Battery 100Ah 48V Rack Mounted Battery

SOK Current Connected Battery 100Ah 48V Rack Mounted Battery
Sold out
$1,565.65 - $1,565.65
$1,565.65
$1,565.65 - $1,565.65
$1,565.65
✓ Authorized SOK Battery Dealer
✓ Lowest Price Match Guaranteed
✓ Brand New & FREE Shipping: In Stock Ready To Ship
✓ Questions? Talk to a SOK Battery Expert: 1-303-876-7654

SOK Battery 100Ah 48v Features:

  • 48 Volt (51.2 Nominal) 100Ah, 5.12 kWh
  • 20 Year Typical Lifespan & 10 Year Warranty
  • Cells rated for 80% Capacity after 4000 Cycles, 100% DOD @1C Rate
  • Typical capacity at 80% DOD @.5C Rate is over 7000 Cycles
  • Maintenance Free
  • Built-In Smart Battery Management System (BMS)
  • 5 Temperature sensors, protected from low and high temperatures
  • Pre-Charge Circuit to Prevent BMS Damage
  • Detachable cover, user serviceable BMS and cells
  • RS485 & CANBus communication, works with many inverters
  • Rack Mountable for quick and easy installation

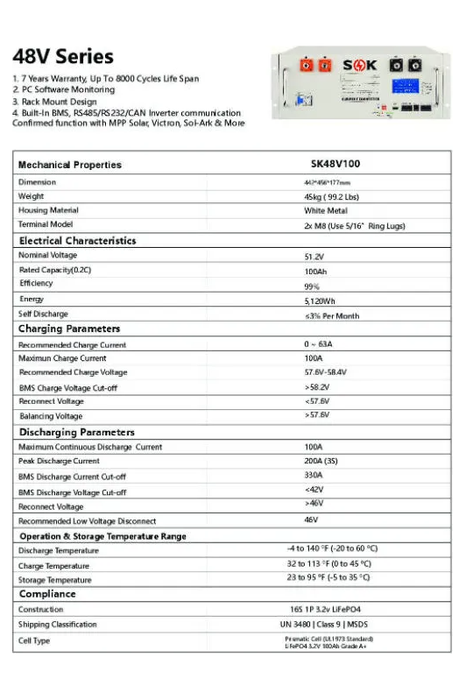

SK48V100 Electrical Properties

  • Model: SK48V100
  • Nominal Voltage: 51.2 (48v Range)
  • Nominal Capacity: 100Ah
  • Run Time at 20A Load (~1000w): 300 Minutes
  • Energy: 5120Wh
  • Self Discharge: < 3% per month
  • Max Batteries in Series: 1
  • Max Batteries in Parallel (with BMS communication): 16*

SK48V100Discharge Performance

  • Max Continuous Discharge Current: 100A (1C)
  • Peak Discharge Current: 200A (3 Seconds, automatic shutdown)
  • BMS Low-Voltage Disconnect: 42V
  • BMS Low-Voltage recover: 46V

SK48V100 Charge Performance

  • Recommended Charge Current: 0~63A
  • Maximum Charge Current (Continuous): 100A
  • Recommended Charge (Absorption) Voltage: 58.2V
  • BMS Cell Protection Voltage: 3.7V
  • BMS Pack Protection Voltage: >58.2V

SK48V100 Temperature Performance

  • Discharge Temperature: -4°F – 140°F
  • Charge Temperature: 32°F – 113°F
  • Storage Temperature: 23°F – 95°F
  • Low Temperature Charge Protection: Yes
  • Internal Temperature Sensors: 4 Cell Sensors, 1 BMS Sensor, 1 Ambient Air Sensor

SK48V100 Physical Properties

  • Case Material: Powder-Coated Steel
  • Rack Mountable: Yes, 4U
  • Unit Weight: 99.2Lbs
  • Weather Rating: IP20
  • Third Party Testing: UL1642 & UL9540 testing in progress. Anticipated September 2022, UL1973 (Cells)
  • Shipping Classification: UN3480, Class 9, MSDS

SK48V100 Dimensions

  • Width: 17.5in
  • Height: 7in
  • Depth: 18in
