Sol-Ark 1 unit/module Optimizer

Sol-Ark 1 unit/module Optimizer
$79.00 - $79.00
$79.00
$79.00 - $79.00
$79.00

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

1 unit/module Optimizer

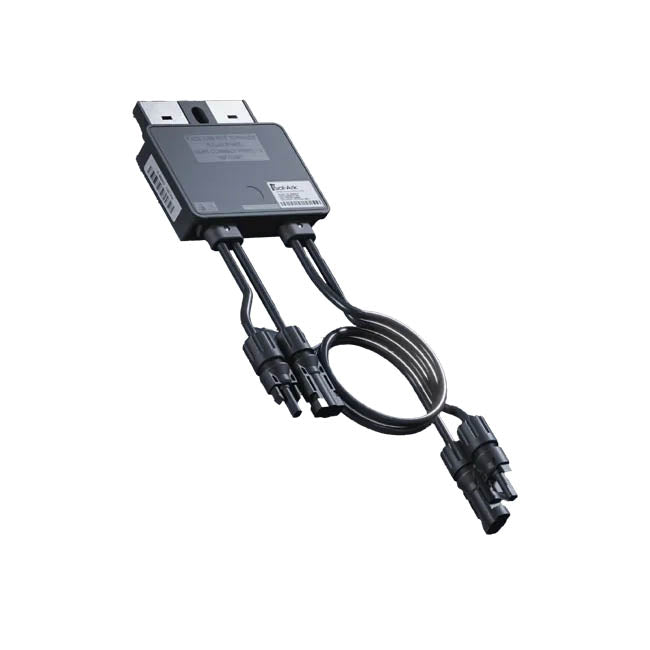

Boost the performance, efficiency, and safety of your solar array with the Sol-Ark O900-80V PV Optimizer. Engineered with advanced module-level MPPT (Maximum Power Point Tracking) and integrated Rapid Shutdown (RSD) capabilities, this innovative device maximizes energy harvest while meeting the latest NEC safety standards.

Installed on each individual solar panel, the O900-80V ensures optimal performance even in partially shaded or uneven conditions. It actively manages each module's output, improving system-level efficiency and safety across the board.

Features

  • Module-Level MPPT Optimization – Maximizes energy yield from each panel, even under shade or mismatch conditions.
  • Integrated Rapid Shutdown (RSD) – Compliant with NEC 2017 & 2020 (Section 690.12) for enhanced safety.
  • SunSpec Certified – Ensures seamless compatibility with SunSpec-compliant inverters.
  • Wide Input Range – Supports 18V to 80V input and up to 14A for flexible system design.
  • Rugged IP68 Enclosure – Weatherproof, dust-tight, and built for long-term outdoor reliability.
  • Tool-Free Installation – Equipped with MC4-compatible connectors for quick, secure setup.
  • 25-Year Warranty – Industry-leading coverage for long-term confidence.

Specs

  • Model: Sol-Ark O900-80V
  • Input Voltage Range: 18-80V
  • Max Input Current (Imax): 14A
  • Max Short Circuit Current (Isc): 15A
  • Max Wattage: 900W
  • Power Optimization: Yes (MPPT)
  • Communication Signal: Power Line Communication (PLC)
  • Over-Temperature Protection: Yes
  • Pairs with: TX 12K-A / TX 15K-A Transmitters
  • Warranty: 25 years
  • PV Modules per O900-80V MLPE: 1

Certifications

  • UL 1741 & CSA 22.2 No. 107.1 certified
  • EMC compliance: FCC Part 15 Class B, IEC 61000-6-2, IEC 61000-6-3
  • SunSpec RSD Certification for system interoperability
  • Over-temperature protection for operation in extreme environments
  • NEMA Type 6P / IP68 rated for water and dust resistance

Advanced RSD for NEC Compliance

The O900-80V delivers dependable module-level rapid shutdown functionality, automatically reducing output voltage to 0.9V during emergencies or system maintenance. This protects first responders and service technicians by minimizing exposure to high DC voltages.
