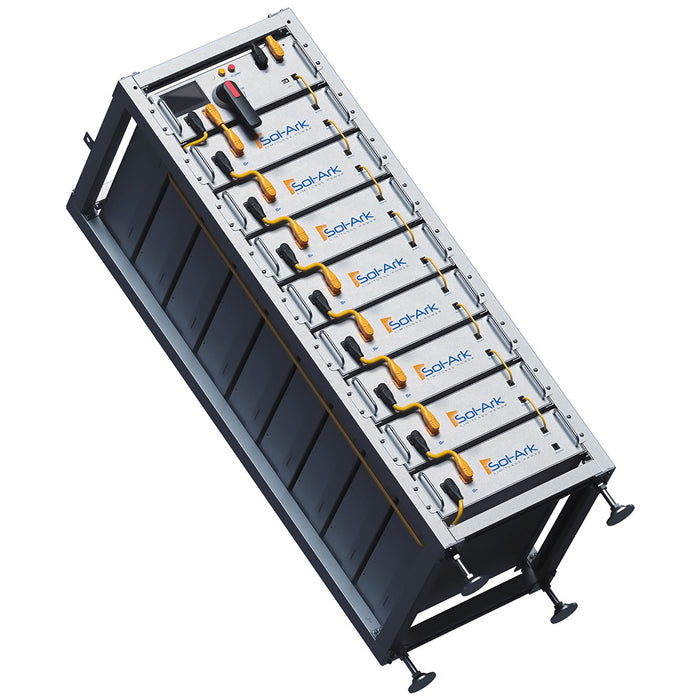

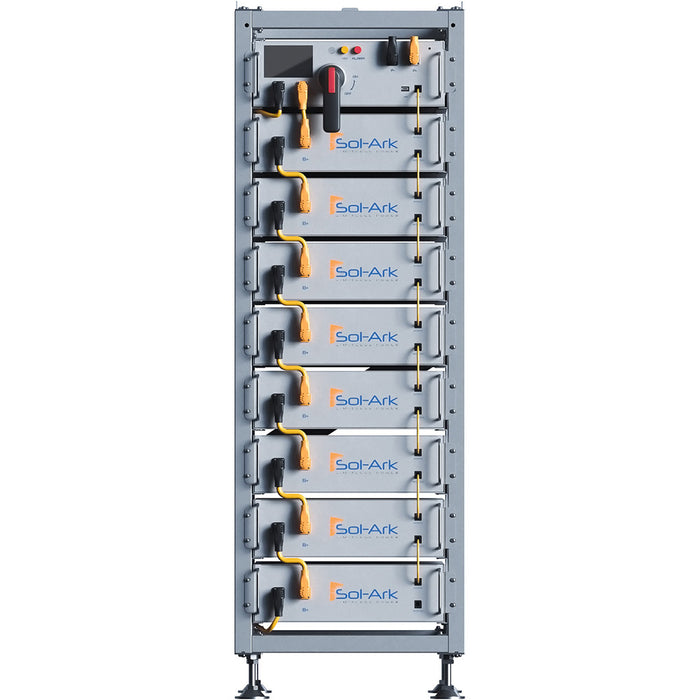

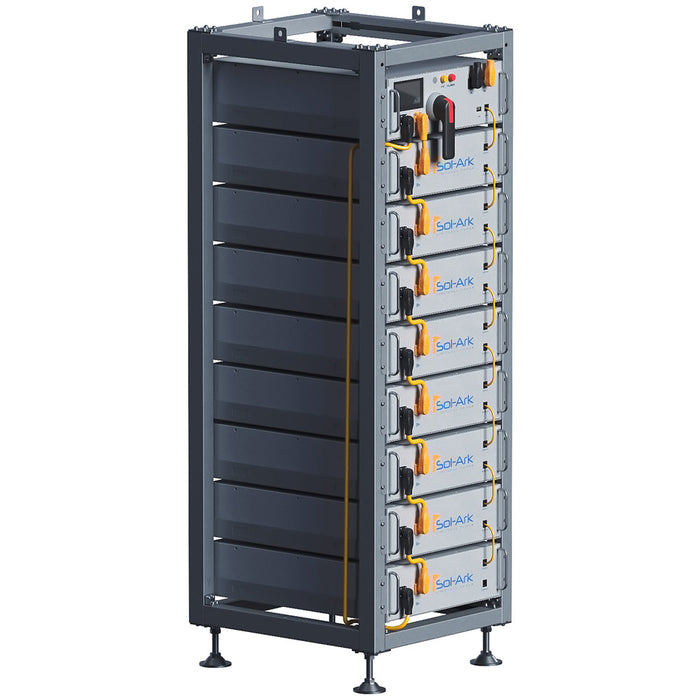

Sol-Ark 40kWh Battery Bank IP20 Indoor for use w/ Sol-Ark 30K-3P

Sol-Ark 40kWh Battery Bank IP20 Indoor for use w/ Sol-Ark 30K-3P
$20,500.00 - $20,500.00
$20,500.00
$20,500.00 - $20,500.00
$20,500.00

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

40kWh Battery Bank IP20 Indoor for use w/ Sol-Ark 30K-3P

The Sol-Ark L3 HV-40KWH-30K is a high-efficiency indoor energy storage solution engineered for commercial and industrial environments. Designed to integrate effortlessly with existing electrical systems, it empowers businesses to optimize energy usage, cut utility expenses, and maintain a reliable power supply.

Optimized for indoor installations, this system is housed in an IP20-rated enclosure, making it well-suited for temperature-controlled settings like electrical rooms or dedicated energy storage areas. With a 40kWh storage capacity and seamless compatibility with the Sol-Ark 30K-3P-208V inverter, the L3 HV-40KWH-30K delivers a compact yet scalable solution capable of supporting diverse operational energy strategies.

Specs

  • Model Number: L3 HV-40KWH-30K
  • Compatible Inverter Model: Sol-Ark 30K-3P-208V
  • Nameplate Energy Capacity (DC): 40.96 kWh
  • Usable Energy Capacity (DC): 36.86 kWh
  • Cell Chemistry: Lithium Iron Phosphate
  • Max. # Battery Units Per Inverter: 16
  • Max. # Inverters in Parallel: 10
  • Built-In DC Disconnect Rating: 200A
  • Product Dimensions (WxDxH): 23x23x64 in
  • Mounting Type: Freestanding Rack Mount
  • Enclosure Rating: IP20
  • Warranty: 10 Years
  • UL Certifications: UL1973, UL9540, UL9540a, UN38.3, FCC, Prop 65

Features

  • High Capacity: 40kWh of lithium battery storage for extended power backup and energy management.
  • Programmable BMS: Advanced Battery Management System for optimized performance and versatility.
  • Smart Monitoring: Advanced remote monitoring and control features for proactive system management.
  • Safe Chemistry: Reliable and safe LiFePO4 cell chemistry for peace of mind.
  • Outdoor Rated: IP20 enclosure for reliable performance in challenging outdoor environments.

The Sol-Ark L3 HV-40KWH-30K comes with comprehensive warranty coverage. The system includes a 10-year product warranty. Additionally, it offers a performance warranty of 6 to 10 years or 196MWh throughput, whichever comes first. This warranty guarantees that your energy storage system will maintain its capacity and performance over time.
