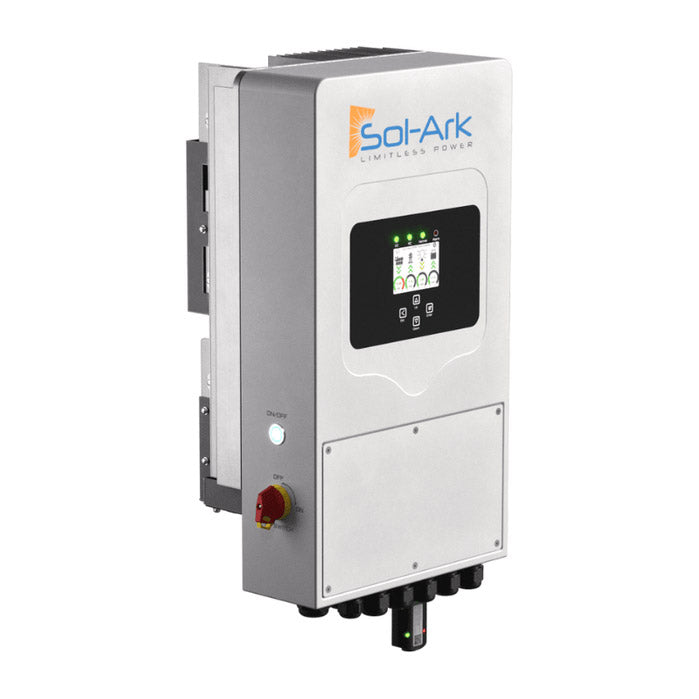

Sol-Ark 5K 120/230V 48V Hybrid All-In-One Inverter

Sol-Ark 5K 120/230V 48V Hybrid All-In-One Inverter
$2,080.99 - $2,080.99
$2,080.99
$2,080.99 - $2,080.99
$2,080.99
✓ Authorized Sol-Ark Dealer
✓ Lowest Price Guaranteed
✓ Brand New and Fast Shipping: In Stock Ready To Ship
✓ Questions? Talk to a Sol-Ark Expert: 1-303-876-7654
✓ PRICE MATCH GUARANTEE


Renewable Outdoors LLC BBB Business Review

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

5K 120/230V 48V Hybrid All-In-One Inverter

Sol-Ark 5K Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charger controller, and a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or battery backup solar system, while being able to manages power to and from Solar, Battery, Grid, Loads, and Generator.

Sol-Ark 5k Single-Phase Hybrid Inverter Details

  • Big power: 33% less weight
  • Perfect for 120V only setups
  • 120V generator compatible
  • Blazing 5.0 millisecond transfer time¬†

Characteristics

  • Manufacturer: Sol-Ark
  • Model: SA-5K-1P-N
  • Rated Power Output [W]: 4800
  • Length [mm (in)]: 579.12 mm (22.8 in)
  • Width [mm (in)]: 330.2 mm (13 in)
  • Depth [mm (in)]: 231.14 mm (9.1 in)
  • Weight [kg (lb)]: 28.12 kg (62lb)
  • Warranty [Years]: 5¬†

Inverter Features

  • Inverter Type: Hybrid inverter
  • Maximum/Peak Efficiency [%]: 97.6
  • Transformer / Transformerless: Transformerless DC
  • DC Power Rating [W]: 10400
  • Max. Input Power [W]: 10400
  • Max. Input Voltage [V]: 500
  • Max. Input Current [A]: 40
  • Min. DC voltage / start voltage [V]: 150
  • Min. DC voltage / start voltage [V]: 150
  • Number of DC String Inputs (Inlets): 4
  • Number of MPP Trackers: 2
  • Max. Input Power per MPPT [W]: 5200
  • Max. Input Voltage per MPPT [V]: 500
  • Max. Input Current per MPPT [A]: 20
  • Voltage Lower Limit for MPP Range [V]: 125
  • Voltage Upper Limit for MPP Range [V]: 425
  • DC Disconnection Type: Integrated
  • Reverse-Polarity Protection: true
  • AC Power Rating [W]: 4800
  • Nominal AC Power [W]: 4800
  • Max. AC Power [W]: 4800
  • AC voltage range [V]: 114-123
  • AC grid frequency [Hz]: 60
  • Max. output current [A]: 40
  • Nominal AC Voltage [V]: 120
  • Maximum AC Voltage Range [V]: 123
  • Nominal AC Frequency [Hz], range [Hz-Hz]: 60
  • Max. AC Line Current [A]: 50
  • AC Connection Type: L1/Neutral/Ground
  • AC Input Wire Gauge Range [AWG]: 8 AWG - 6 AWG
  • Sleep (Night) Consumption [W]: 60
  • NEMA Enclosure Rating: IP65 / NEMA 3R
  • Cooling Method: Integrated Fans
  • Ambient Temperature Range [¬∞C(¬∞F)]: -25¬∞C to +60¬∞C (-13¬∞F to +140¬∞F)
  • Display: LCD Touch Screen
  • Communication: Wi-Fi, LAN, CanBus, RS485
  • Basic Warranty [Years]: 5
  • Compliances: UL1741-2010/2018, IEE-E1547a-2003/2014, FCC 15 Class B
  • AC grid range [Hz]: 55-65
  • Max. recommended PV power (@ module STC): 10400
