Solis Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter

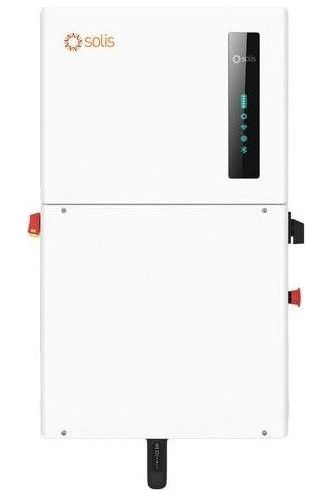

Solis Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter The S6 (Series 6) hybrid energy storage inverter is the latest Solis US model certified to IEEE 1547-2018, UL 1741 SA & SB, and SunSpec Modbus, providing economical zero-carbon power from an all-weather (NEMA 4X / IP 66) high-efficiency PV string inverter. This new PV / Battery inverter can be dc-coupled to a variety of certified high-voltage Lithium batteries. The S6 hybrid is a grid-forming inverter that supports the latest large PV modules with high current (16 amp) dc inputs at each MPPT.

Solis Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter
Lowest Price Guarantee
Authorized Solis Dealer
Genuine Solis Equipment
Free Shipping
0% APR Financing via Affirm
Talk to a Human: (303) 876-7654

Why the Solis Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter

3.8-11.4kW Energy Storage Inverter Leading Features Four

3.8-11.4kW Energy Storage Inverter Leading Features Four MPPTs allows for versatile PV array design UL 1741 SB certified, California Rule 21 compliant Maximum PV input current up to 16A per string High DC:AC ratio of 1.6 for more PV power capacity Transfer time is 10ms for all backed up loads SunSpec modbus certified with the latest SunSpec models Provides split-phase backup power without an external ATR Multiple working modes to meet different use case scenarios Third-party tested and validated for product reliability Can be used for both whole-home and dedicated loads backup systems DC to DC battery charging for optimal use of PV-generated energy Reverse DC polarity protection and software-based AFCI detection Offers all of the smart inverter functions detailed in IEEE 1547-2018 Solis app allows for remote system configuration and firmware upgrading Generates up to 50A/11.4kW of continuous backup power with just one inverter Capable of frequency-watt control for interoperability with other smart devices NEC 2017 compliant with multiple integrated PLC transmitter options available Fanless design using convection cooling for lower failure rate and complexity Utilizes an energy management system that maximizes efficiency and offers multiple operating modes UL 9540 certified with multiple battery brands to provide up to 150 kWh of storage capacity per inverter Supports generator interconnection and allows the generator to function as the grid source if utility power is lost DC Input (PV) Max.

input voltage

600 V Rated voltage: 380 V Start-up voltage: 80 V MPPT voltage range: 80-520 V Max.

short circuit current per string

25.6 A Number of MPPTs/Number of strings per MPPT: 4/1 Energy Storage Battery type: High Voltage Lithium-ion Battery voltage range: 120-500V Maximum charge/discharge current: 50A Battery communication: CAN/RS485 AC Output (Grid) Rated output power: 11.4 kW Max.

apparent output power

11.4 kVA Rated output voltage: 240 V Rated frequency: 60 Hz Rated output current: 47.5A Max.

output current

47.5A THDi: <3% AC Input (Grid) Input voltage range: 211-264 V Max.

input current

71.3A Frequency range: 58.8-61.2 Hz AC Output (Backup and Off-grid) Rated output power: 11.4 kW Max.

Solis Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter Specifications

A per string High DC AC ratio of 1.6 for more PV power capacity Transfer time is 10ms for all backed up loads SunSpec modbus certified with t
V Rated voltage 380 V Start-up voltage: 80 V MPPT voltage range: 80-520 V Max. input current per string: 16 A Max. short circuit current
MPPTs/Number of strings per MPPT 4/1 Energy Storage Battery type: High Voltage Lithium-ion Battery voltage range: 120-500V Maximum charge/discharge curre
A Battery communication CAN/RS485 AC Output (Grid) Rated output power: 11.4 kW Max. apparent output power: 11.4 kVA Rated output voltage: 240 V
Rated frequency 60 Hz Rated output current: 47.5A Max. output current: 47.5A THDi:
AC Input (Grid) Input voltage range 211-264 V Max. input current: 71.3A Frequency range: 58.8-61.2 Hz AC Output (Backup and Off-grid) Rated output power: 11
V AC output voltage range 211-264 V Rated grid frequency: 60 Hz Frequency range: 55-65 Hz Rated AC output current: 47.5A Max. output overcurrent p
Backup support configurations Whole-home and dedicated loads Power factor: >0.99 (0.8 leading - 0.8 lagging) THDv (@linear load):
PV CEC efficiency 97.2% Battery charged by PV Max. efficiency: 98.5% Battery charged/discharged to AC Max. efficiency: 97.0% Protection Gr
Yes Residual (leakage) current detection Yes Integrated AFCI (DC arc-fault circuit protection): Yes DC reverse-polarity protection: Yes (PV only) Rapid Shutdown
Transmitter Compatible RSD Receivers See MLRSD Compatibility Sheet Protection class/Over voltage category: I/II Manual inverter bypass switch: Yes General Da
Weight 89.59 Ibs (40.64 kgs) Mounting type: Wall Bracket Topology: Transformerless Self-consumption (night):
W Operation temperature range -13 °F to 140 °F (-25°C to 60°C) Ingress protection: TYPE 4X (IP66) Noise emission:
B(A) Cooling method Natural convection Max. operation altitude: 13,120 ft (4000 m) Compliance: UL 1741, UL 1741 SA, UL 1741 SB, IEEE 1547-20
Class B Generator support Yes Features DC connection: 1 in. knockouts for conduit (x2) on the side and bottom; Spring clamp terminals AC connectio
Spring clamp terminals Interface LED indicator lights, Bluetooth/Mobile application Monitoring platform: SolisCloud (modbus map and API sharing available
MB) Communication RS485, Cellular, Wi-Fi, Optional: LAN

Documentation & Downloads

Solis Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter Spec Sheet (PDF)

Lowest Price Guarantee

Find it cheaper at another authorized Solis dealer? Call us before you order and we will take care of you.

Authorized Solis Dealer

This is genuine Solis equipment, sold and supported by Renewable Outdoors as an authorized dealer.

Help From People Who Sell These Every Day

Call (303) 876-7654. We would rather spend ten minutes sizing your system correctly than process a return later.

Solis Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter: Frequently Asked Questions

What is the Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter's protection rating?
The Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter carries an IP66 ingress protection rating. See the spec table above for the full environmental ratings.
What voltage does the Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter run on?
The Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter operates at 380 V Start-up voltage: 80 V MPPT voltage range: 80-520 V Max. input current per string: 16 A Max. short circuit current (V Rated voltage). Make sure the rest of your system is built for the same voltage before ordering.
How big and heavy is the Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter?
The Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter has weight of 89.59 Ibs (40.64 kgs) Mounting type: Wall Bracket Topology: Transformerless Self-consumption (night):. Plan your mounting and placement around those figures.
Can I monitor the Hybrid Inverter 11.4kw S6 Single Phase Four MPPT. US Version with tigo transmitter remotely?
Knockouts for conduit (x3) on the side and bottom; Spring clamp terminals Interface: LED indicator lights, Bluetooth/Mobile application Monitoring platform: SolisCloud (modbus map and API sharing available upon request) Integrated ANSI C12.
