200W Each · 20.41% Efficiency · 64 Mono Cells · 1000V DC · TUV & IEC

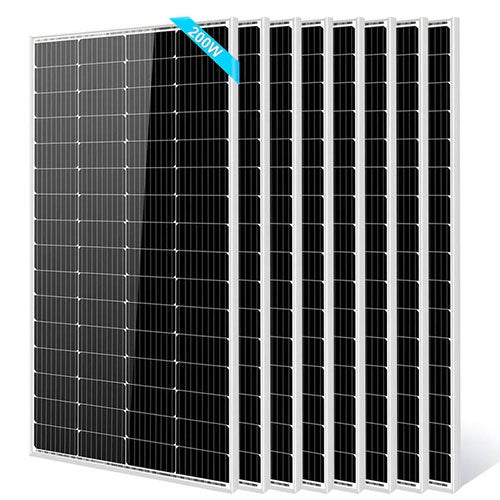

SunGoldPower 200W Monocrystalline Solar Panel (SG200WM)
200W per panel at 20.41% module efficiency, sold in the quantity you actually need rather than a full pallet. 200W in a 55 by 28 inch module is the sweet spot for RV and van roofs — enough output to matter, small enough that two or three fit where one full-size panel would not.
Monocrystalline 166mm, 64 cells (4 × 16) behind 3.2mm tempered glass, in an anodized aluminium frame rated for a 1000V DC system voltage. Five years on workmanship, with 90% of rated output guaranteed at 10 years. Renewable Outdoors is an authorized SunGoldPower dealer — call us at (303) 876-7654 and we'll check string sizing against your inverter's MPPT window before you order.
12-Year Product Warranty
Lowest Price Guarantee
Authorized SunGoldPower Dealer
Free Shipping
0% APR Financing
Expert Support: (303) 876-7654
Why the SunGoldPower 200W Panel

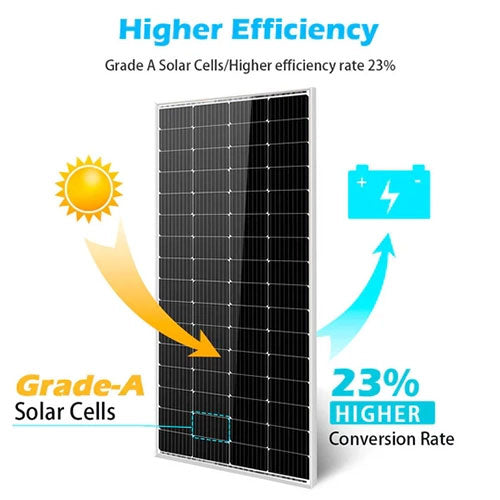

200W at 20.41% Efficiency
20.41% module efficiency from 64 monocrystalline 166mm cells.
RV and Van Roof Sized

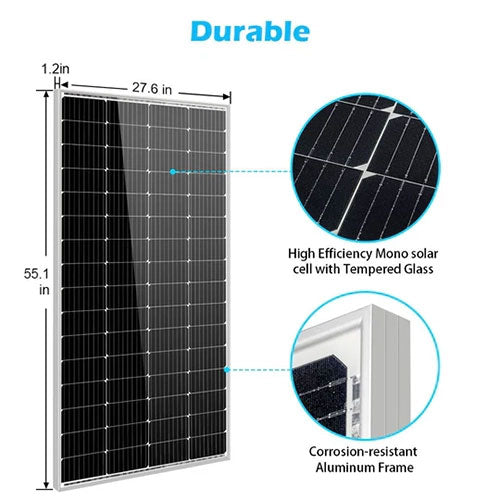

55.1 by 27.6 inches at 23.32 lbs — a realistic size for a vehicle roof, and light enough to handle alone.
2400 Pa Wind Rating
3.2mm tempered glass in an anodized aluminium frame, tested to 2400 Pa wind load.
TUV, IEC and CEC Certified
Independently certified, with a 1000V system voltage rating for longer strings.
90% Output at 10 Years
Five years on workmanship with a stepped performance guarantee.
1000V System Voltage
A 1000V rating means you can put more of these in series than a 600V panel allows.
What's Included
What You Get

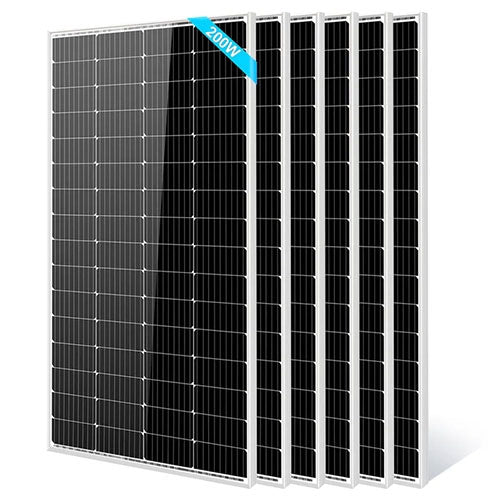

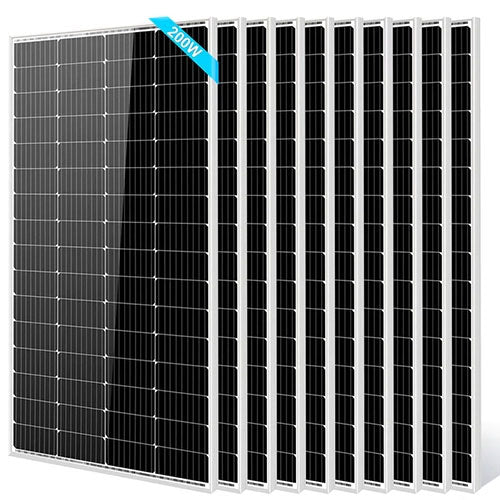

SunGoldPower 200W solar panels (SG200WM) in the quantity you select

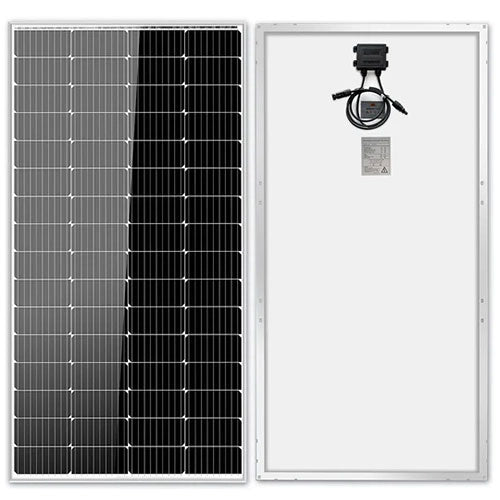

Pre-attached 4mm², 900mm each leads with MC4 connectors
Datasheet and warranty documentation
Mounting hardware, racking, cabling beyond the panel leads, combiners and fusing are separate purchases. A full pallet is 2 panels and works out cheaper per watt if you need that many — we list that separately. Call us at (303) 876-7654 and we'll price the whole array.
SunGoldPower 200W Solar Panel Specifications
Model
SG200WM
Rated Power (Pmax at STC)
200W
Cell Type
Monocrystalline 166mm, 64 cells (4 × 16)
Module Efficiency
20.41%
Open Circuit Voltage (Voc)
43.39V
Short Circuit Current (Isc)
5.86A
Maximum Power Voltage (Vmp)
36.16V
Maximum Power Current (Imp)
5.53A
Maximum System Voltage
1000V DC
Maximum Series Fuse Rating
10A
Temperature Coefficient of Pmax
−0.36%/°C
Temperature Coefficient of Voc
−0.28%/°C
Temperature Coefficient of Isc
0.048%/°C
Nominal Operating Cell Temperature
46 ± 2°C
Dimensions
55.1" × 27.6" × 1.2" (1400 × 700 × 30mm)
Weight
23.32 lbs (10.6 kg)
Frame
Anodized aluminium alloy
Glass
3.2mm tempered

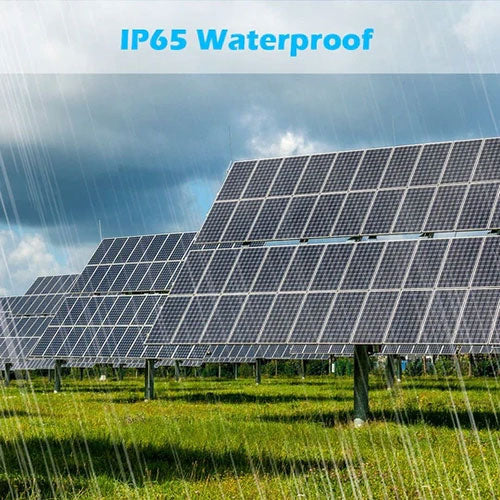

Junction Box
IP65
Cable
4mm², 900mm each
Connector
MC4
Wind Load Resistance
2400 Pa
Certifications
ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, TUV, IEC, CEC, CE, CB
Panels per Pallet
2
Product Warranty
5 years workmanship
Performance Warranty
95% output at 5 years; 90% at 10 years
5 years workmanship
SunGoldPower's product warranty covers materials and workmanship.
Lowest Price Guarantee
Found it cheaper elsewhere? Call us at (303) 876-7654 before you buy.
Authorized SunGoldPower Dealer
Genuine SunGoldPower modules with full manufacturer support.
SunGoldPower 200W Monocrystalline Solar Panel (SG200WM): Frequently Asked Questions
How many 200W panels do I need?
Work backwards from your daily energy use and your inverter's limits. As a rough guide, one 200W panel produces somewhere around 0.8kWh on a good day in a sunny climate and considerably less in winter or under cloud. Your inverter's maximum PV input and MPPT voltage window then cap how many you can string together. Call us at (303) 876-7654 with your inverter model and your usage and we'll size it properly with you.
How do I work out how many panels go in a string?
Divide your inverter's maximum PV input voltage by the panel's open circuit voltage, then subtract one for cold-weather margin — Voc rises as temperature falls, and a string sized at the limit on a mild day can exceed the inverter's ceiling on a freezing morning. These panels are 43.39V Voc with a −0.28%/°C temperature coefficient. We do this calculation for customers all the time, so call us rather than guessing.
Will the panels actually produce their rated wattage?
Rarely, and that's normal for every panel from every manufacturer. Rated power is measured at Standard Test Conditions — 1000W/m² irradiance at a 25°C cell temperature — which is brighter and cooler than a real roof on a summer afternoon. Expect 75 to 85 percent of nameplate in good conditions once the panels warm up. Size your array on that basis rather than on nameplate and you won't be disappointed.
What certifications do these carry?
ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, TUV, IEC, CEC, CE, CB. The one that usually matters for a permitted grid-tied installation in the US is the UL listing and CEC listing, because inspectors and utilities ask for them. If your jurisdiction has specific requirements, tell us and we'll confirm before you order.
What does the warranty actually cover?
Two separate things. The product warranty — 5 years workmanship — covers defects in materials and workmanship. The performance warranty — 95% output at 5 years; 90% at 10 years — guarantees the panel still produces a stated percentage of its original output at given years. Performance warranties are the more meaningful of the two over a panel's life, since panels rarely fail outright but all of them degrade.
Can I mix these with panels I already own?
On the same string, no — you should not mix panels of different wattage or electrical characteristics in series, because the string performs to the weakest module and you lose more than you'd expect. On separate MPPT inputs, or as a separate string on the same inverter, mixing is usually fine. Call us at (303) 876-7654 and describe what you have and we'll tell you what works.

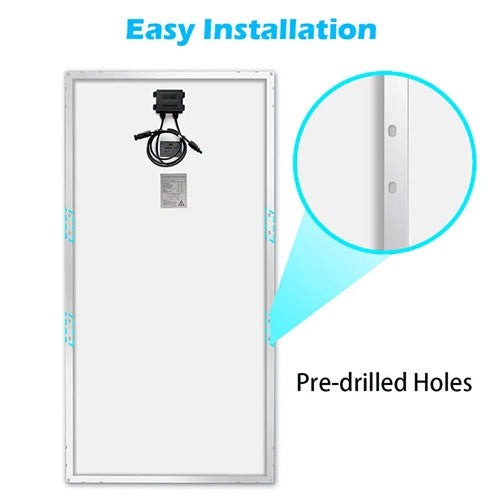

What mounting hardware do I need?
That depends on whether you're going on a roof, a ground mount or a pole. These panels are 55.1" × 27.6" × 1.2" (1400 × 700 × 30mm) and 23.32 lbs (10.6 kg) each, which is what your racking has to be rated for. We stock SunGoldPower's modular ground mount brackets for two panels, and we can advise on roof racking. Wind and snow loading matter a great deal here — it's worth a conversation rather than a guess.
Do you offer financing or price matching?
Yes. We offer 0% APR financing options through Affirm at checkout, and our Lowest Price Guarantee applies — if you find these panels cheaper at another authorized dealer, call us at (303) 876-7654 before you order and we'll take care of it.
