SunGoldPower 560W Bifacial PERC Solar Panel Pallet (31 Panels)
Save 20%
Save 20%
Original price
$7,615.00
Original price
$7,615.00
-Original price
$7,615.00
Original price
$7,615.00
Current price
$6,092.00
$6,092.00-$6,092.00
Current price
$6,092.00
| /
✓ Authorized Sungold Power Dealer ✓ Lowest Price Match Guarantee ✓ FAST & FREE Shipping: In Stock Ready To Ship ✓ Questions? Talk to a Sungold Power Expert: 1-303-876-7654
Login for Exclusive Member Pricing.
Not a member? Create a Free Account.
32 Panels · 17.92kW Total · 560W Each · 21.67% Efficiency · N-Type Bifacial · 30-Year Linear Power Warranty
SunGoldPower 560W Bifacial N-Type Solar Panel Pallet (32 Panels)
A full pallet of 32 SunGoldPower 560W N-Type panels — 17.92kW of array in a single shipment, at pallet pricing. This is how you buy panels when you're building a real system rather than adding a couple: one freight delivery, one batch of matched modules from the same production run, and a materially lower cost per watt than buying in pairs.
Matched modules matter more than people expect. Panels from the same batch have closely matched electrical characteristics, which means a string performs to its weakest module less severely than a string assembled from panels bought months apart. Each module is 560W at 21.67% efficiency on the front face, with N-Type cells behind dual 2.0mm glass and a rear face SunGoldPower rates at 588W with 5% gain, 644W at 15% and 700W at 25%. Renewable Outdoors is an authorized SunGoldPower dealer — call us at (303) 876-7654 and we'll work out string sizing against your inverter before you order.
12-Year Product Warranty
Lowest Price Guarantee
Authorized SunGoldPower Dealer
Free Shipping
0% APR Financing
Expert Support: (303) 876-7654
Why the SunGoldPower 560W N-Type Panel
560W at 21.67% Efficiency
Front-face rating of 560W at 21.67% module efficiency, with rear-face gain on top of that.
Up to 700W With Rear Gain
SunGoldPower rates the module at 588W, 644W and 700W at 5%, 15% and 25% rear-side gain.
Dual Glass, Front and Back
2.0mm anti-reflective coated front glass and 2.0mm heat-strengthened rear glass, rather than a polymer backsheet.
144 N-Type Half-Cells
N-Type monocrystalline 182 × 91mm half-cells in a 6 × 24 layout, wired for lower losses under partial shade than a full-cell module.
1500V DC System Voltage

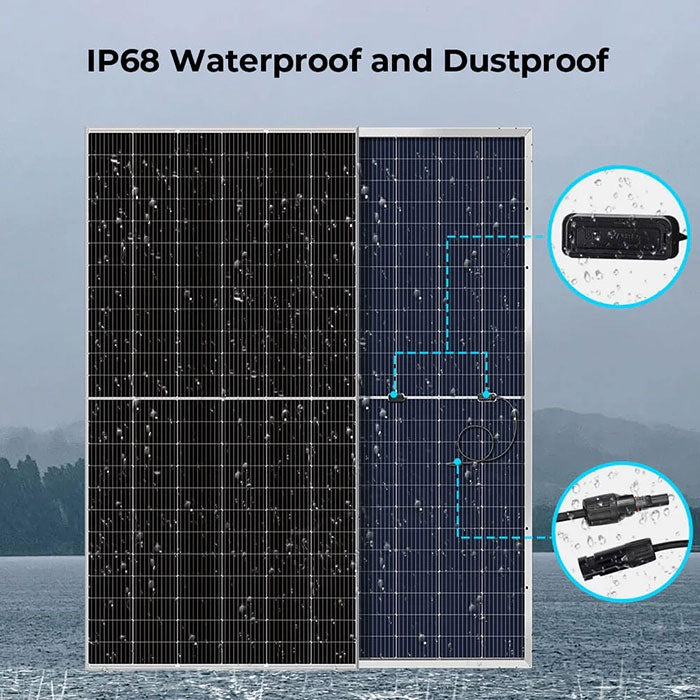

A 1500V DC maximum system voltage and a 25A series fuse rating, with an IP68 junction box.
30-Year Linear Power Warranty
Twelve years on materials and workmanship, with linear power output guaranteed across 30 years.
What's Included
On the Pallet
32 × SunGoldPower 560W N-Type solar panels (SG-560WBG)
Pre-attached 4mm² (12 AWG) output leads on each panel, 300mm positive and 300mm negative
Palletised and crated for freight delivery
Datasheet and warranty documentation

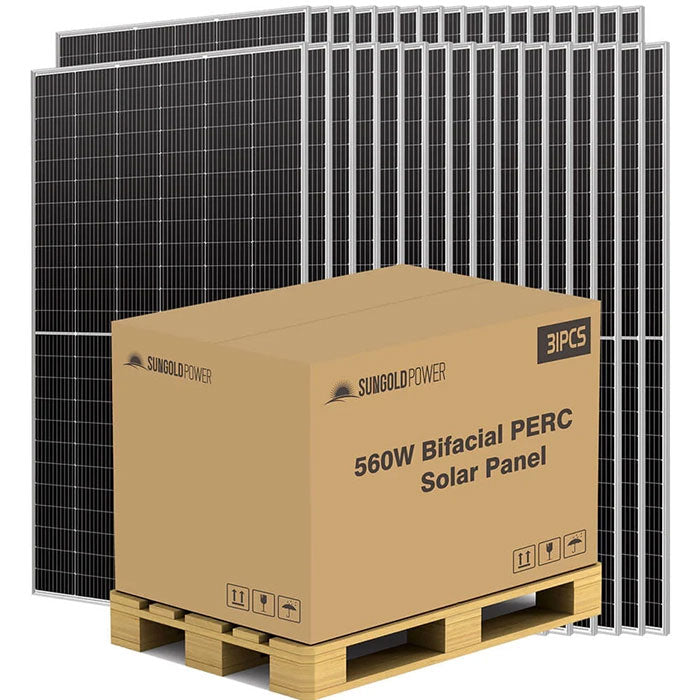

This ships by freight, not parcel. The pallet is around 2440 lbs and 92.9" × 48.0" × 61.8", so you'll need somewhere a lorry can deliver and a way to unload — a forklift, a tractor with forks, or several people and a plan. Inspect the pallet before you sign for it and note any damage on the delivery paperwork; that's what protects a freight claim. Call us at (303) 876-7654 and we'll confirm delivery requirements for your site.
SunGoldPower 560W N-Type Solar Panel Specifications
32 panels is 17.92kW of array, which in good conditions is roughly 70kWh on a strong day and a great deal less in winter or under cloud. That suits a whole-home grid-tied system, a large off-grid build or a small commercial roof. If it is more than you need, we sell the same panel individually and in smaller quantities, and pallet pricing only makes sense once you are buying most of a pallet anyway. Call us at (303) 876-7654 with your usage and your inverter and we'll tell you honestly which listing to buy.
How does this ship, and what do I need to unload it?
By freight. The pallet weighs around 2440 lbs as packed and measures 92.9" × 48.0" × 61.8", which means a truck with room to turn and something on your end to get it off the tailgate: a forklift, a tractor with forks, or a liftgate delivery arranged in advance. Inspect the glass before you sign for it and note any damage on the delivery paperwork, because a signed clean receipt makes a freight claim much harder. Call us at (303) 876-7654 before you order if you are not sure your site can take a freight delivery.
How do I work out how many panels go in a string?
Divide your inverter's maximum PV input voltage by the panel's open circuit voltage, then subtract one for cold-weather margin — Voc rises as temperature falls, and a string sized at the limit on a mild day can exceed the inverter's ceiling on a freezing morning. These panels are 50.09V Voc with a −0.28%/°C temperature coefficient. We do this calculation for customers all the time, so call us rather than guessing.
Will the panels actually produce their rated wattage?
Rarely, and that's normal for every panel from every manufacturer. Rated power is measured at Standard Test Conditions — 1000W/m2 irradiance at a 25°C cell temperature — which is brighter and cooler than a real roof on a summer afternoon. Expect 75 to 85 percent of nameplate in good conditions once the panels warm up. Size your array on that basis rather than on nameplate and you won't be disappointed.
What does bifacial actually gain me?
The rear face generates power from light reflected off whatever is underneath the panel. SunGoldPower rates this module at 588W with 5% rear-side gain, 644W at 15% and 700W at 25%, but which of those you see depends entirely on your surface and mounting height — a white roof, a concrete pad, or snow can add real output; dark soil or grass adds very little, and a flush roof mount adds almost nothing because there's no gap for light to reach the back. SunGoldPower does not publish a bifaciality factor for this model, so plan on the 560W front-face rating and treat the rear as upside.
How is this pallet different from the 560W PERC pallet?
Same 560W nameplate and the same 1500V DC system voltage, but different cells, different paperwork and a different pallet count. This one is N-Type at 21.67% efficiency with a 30-year linear power warranty, 32 panels to a pallet; the PERC version is 21.7% efficient with a 25-year linear warranty, 31 panels to a pallet, and it is the model SunGoldPower publishes a UL 61730 and CEC listing for. The electrical figures differ too, so modules from the two pallets should not share a string.
What certifications does this panel carry?
SunGoldPower publishes TUV, IEC, CE and CB certification for the SG-560WBG, and the factory holds ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018. They do not publish a UL 61730 or CEC listing for this model, which inspectors and utilities usually ask for on a permitted grid-tied installation in the US. If your jurisdiction requires one, call us at (303) 876-7654 before you order and we'll either confirm it in writing or point you at a listed module.
What does the warranty actually cover?
Two separate things. The product warranty — 12 years on materials and workmanship — covers manufacturing defects. The performance warranty — 30 years, linear — guarantees the panel still produces a stated percentage of its original output at given years. Performance warranties are the more meaningful of the two over a panel's life, since panels rarely fail outright but all of them degrade.
What mounting hardware do I need?

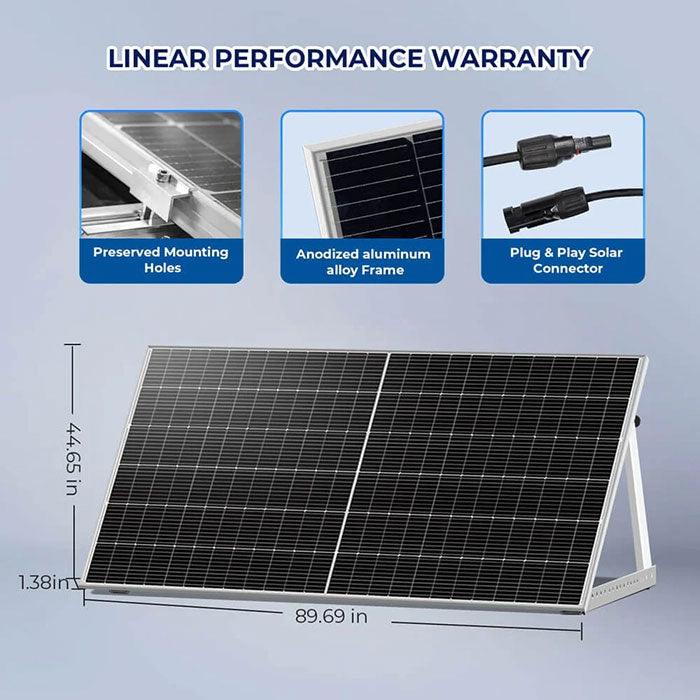

That depends on whether you're going on a roof, a ground mount or a pole. These panels are 89.72" × 44.65" × 1.38" (2279 × 1134 × 35mm) and 70.4 lbs (31.8 kg) each, and SunGoldPower rates the module to 2400Pa wind resistance, which is what your racking and anchoring have to work with. Bifacial panels also want clearance behind them to be worth the premium, so an elevated ground mount beats a flush roof mount here. Wind and snow loading matter a great deal — it's worth a conversation rather than a guess.
Do you offer financing or price matching?
Yes. We offer 0% APR financing options through Affirm at checkout, and our Lowest Price Guarantee applies — if you find these panels cheaper at another authorized dealer, call us at (303) 876-7654 before you order and we'll take care of it.
