48V 100AH LFP Battery
SunGoldPower CoreX 5 Pro 48V 100AH Server Rack Battery
The CoreX 5 Pro packs 5.12kWh of usable capacity into a 51.2V, 100Ah battery built on EVE lithium cells, rated for 5000 cycles to 80% capacity. It's built for server rack mounting, and SunGoldPower rates it for parallel operation up to 15 units.
Order 1, 2, or 4 units — capacity scales directly with count — and connect over RS485 or CAN to your inverter, with Bluetooth and WiFi for app-based monitoring.
5.12kWh, 51.2V LFP
5000 Cycles, 80% Retention
10-Year Warranty
Parallel Up to 15 Units
Free Shipping
Expert Support: (303) 876-7654

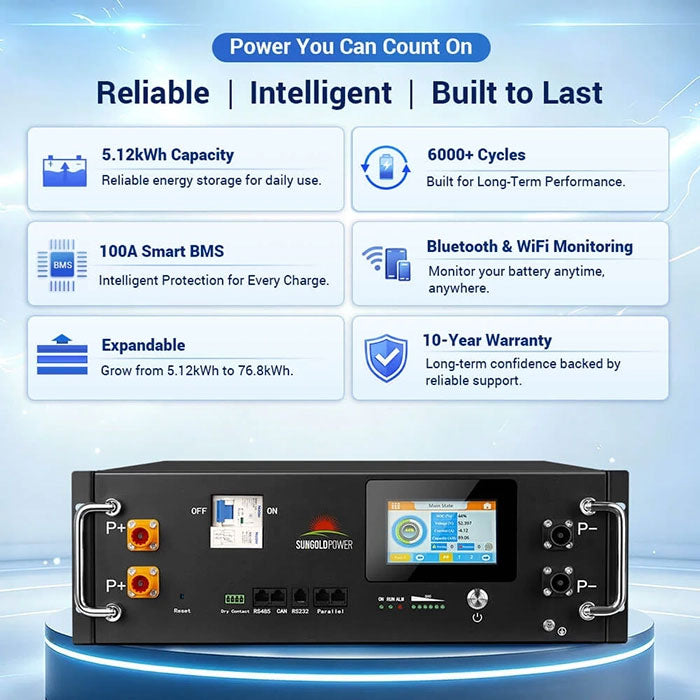

Why the CoreX 5 Pro
5.12kWh Per Unit

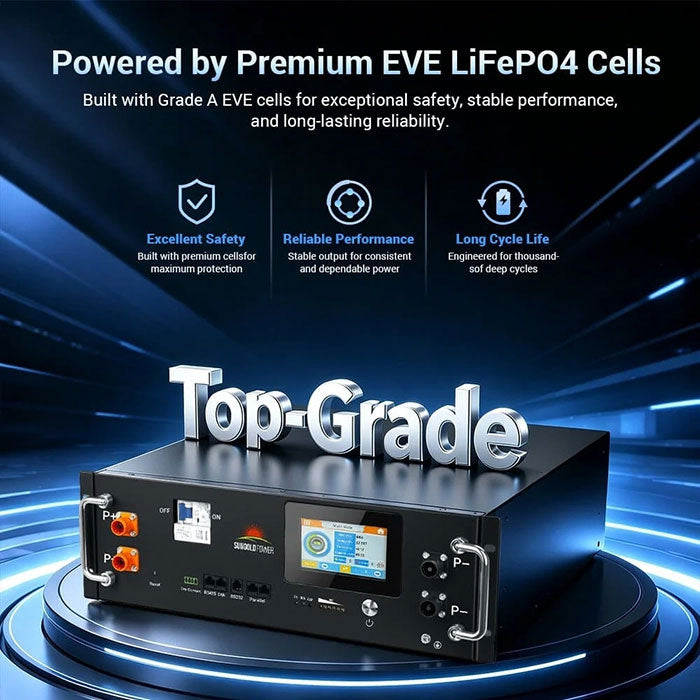

51.2V nominal, 100Ah, built on a 1P16S EVE lithium cell configuration.
5000-Cycle Life
SunGoldPower rates it to retain 80% capacity after 5000 cycles.

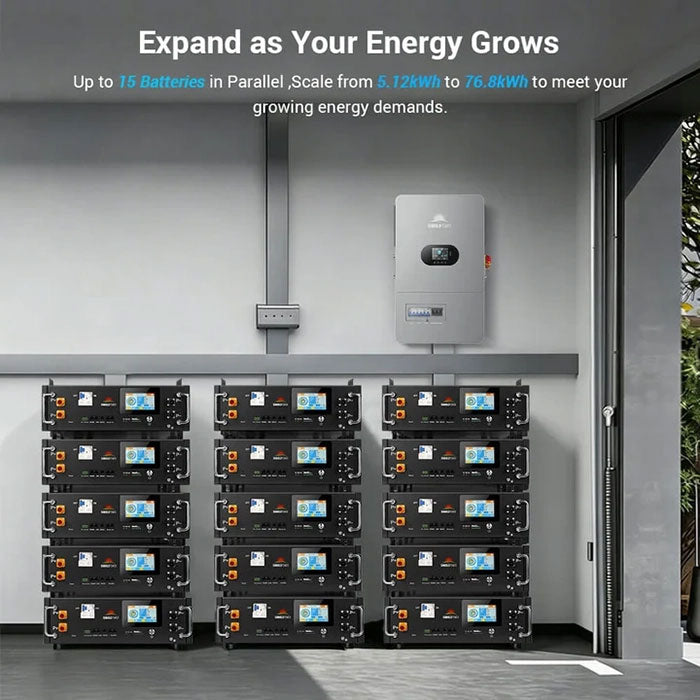

Stack Up to 15 Units
Parallel up to 15 units for large-scale expansion.

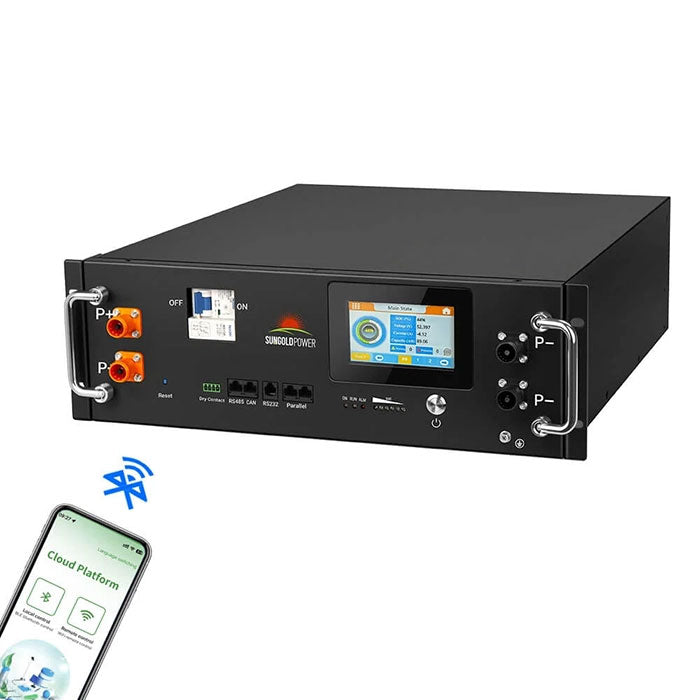

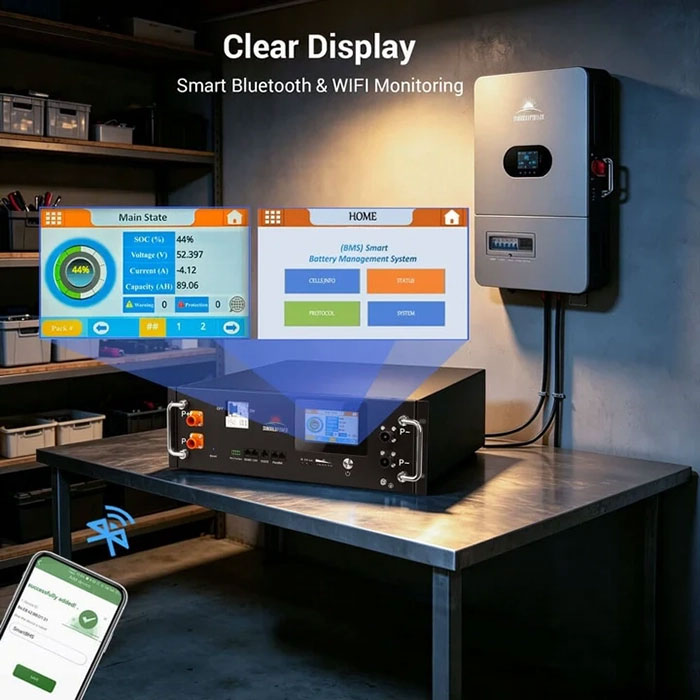

RS485/CAN Plus Bluetooth & WiFi
Talks to compatible inverters over RS485 or CAN, with Bluetooth/WiFi for app-based monitoring.
10-Year Warranty
A full 10-year warranty term.
Rack-Mountable
Sized for server-rack installation.
What's Included
What You Get
1, 2, or 4 × SunGoldPower CoreX 5 Pro battery (selected at checkout)
Rack mounting hardware
Manufacturer documentation
Inverter and installation sold/arranged separately.

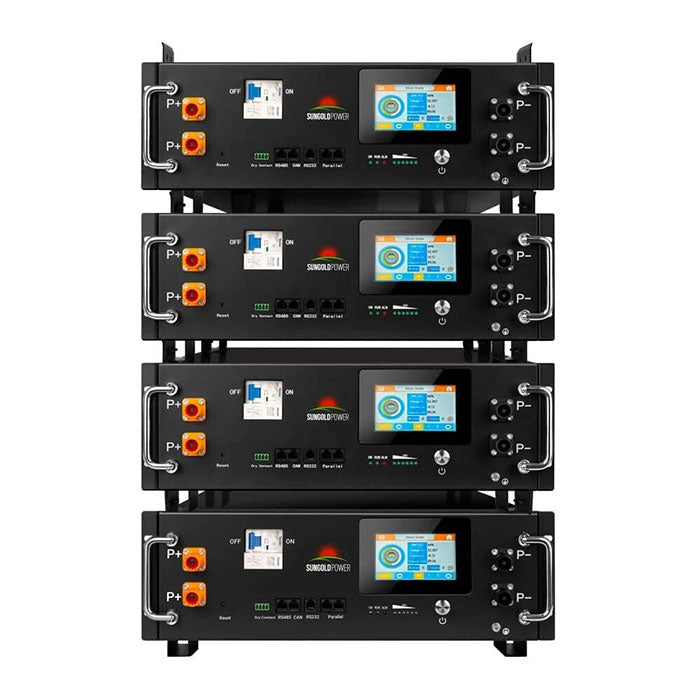

1, 2, or 4 Units: What Changes
Capacity and weight scale directly with the number of units — everything else about the battery stays the same.

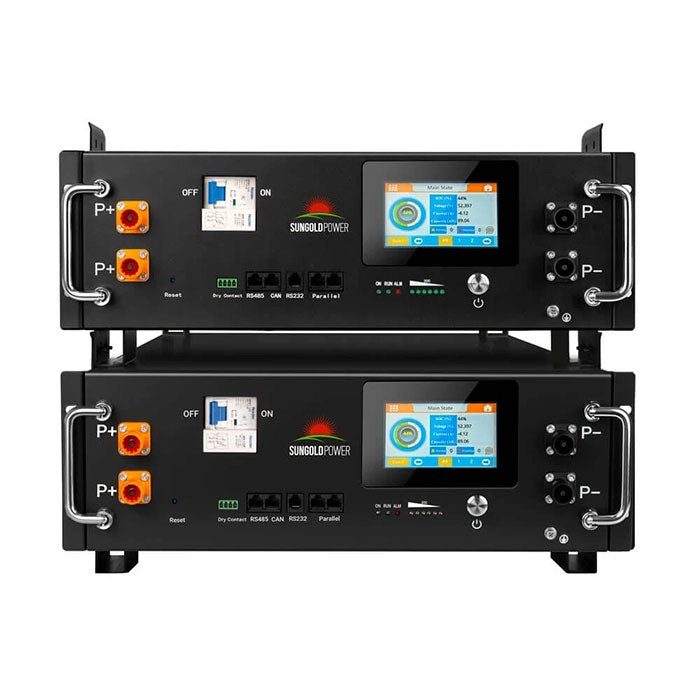

1 Unit
2 Units
4 Units
Total Capacity
5.12kWh
10.24kWh
20.48kWh
Total Weight
43 kg
86 kg
172 kg
Full Specifications
Capacity
5.12kWh per unit
Voltage
51.2V nominal
Amp-Hours
100Ah
Configuration
1P16S, EVE lithium cells
Cycle Life
5000 cycles to 80% capacity retention
Form Factor
19" server rack mount

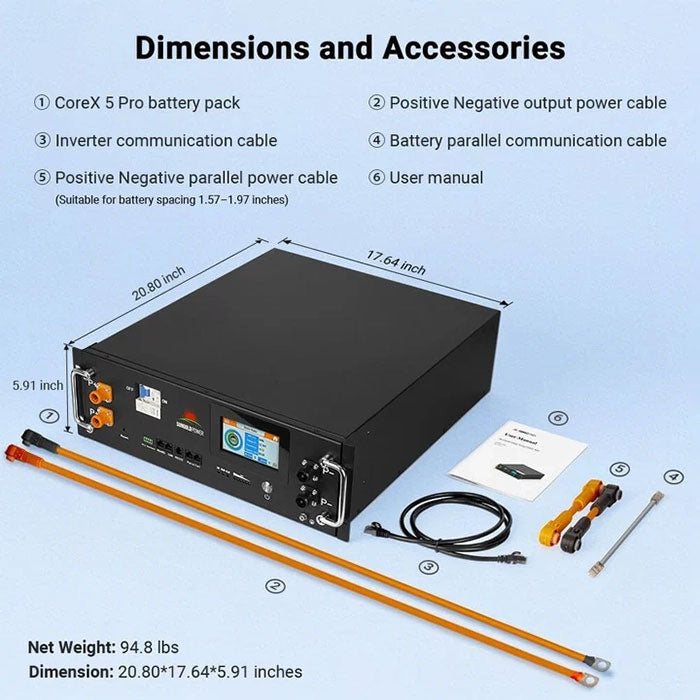

Dimensions
510 x 442 x 130.5mm
Weight
43 kg per unit
Communication
RS485, CAN, Bluetooth, WiFi
Maximum Parallel
Up to 15 units
Warranty
10 years
10-Year Warranty
Covers the full battery.
Fast, Free Shipping
Ships direct from authorized distribution with tracking provided as soon as it leaves the warehouse.
Real Solar Expertise
Call (303) 876-7654 before you order if you want help matching this to the rest of your system.
SunGoldPower CoreX 5 Pro 48V 100AH Server Rack Battery: Frequently Asked Questions
How is the Pro different from the Elite (wall mounted)?
Same battery — 5.12kWh, 51.2V, 100Ah, EVE lithium cells — just a different form factor. The Pro is built for server rack mounting, the Elite for wall mounting.
How many can I run together?
SunGoldPower publishes a maximum of 15 units in parallel. For the 2-unit and 4-unit bundles on this listing, total capacity scales directly with unit count (2 units = 10.24kWh, 4 units = 20.48kWh) — SunGoldPower doesn't publish a separate combined spec beyond that math.
What's the cycle life?
5000 cycles to 80% capacity retention.
What inverters does this work with?
SunGoldPower doesn't publish a specific list of compatible inverter brands or models on its site. Call us at (303) 876-7654 and we'll confirm compatibility with your setup before you order.
How does it communicate with my system?
RS485 and CAN for inverter communication, plus Bluetooth and WiFi for app monitoring.
What's covered under warranty?
A 10-year warranty.
Is it certified?
SunGoldPower doesn't publish a certifications list (UL, UN38.3, etc.) for this model on its site. Call us if certification documentation is something you need for your installation.
