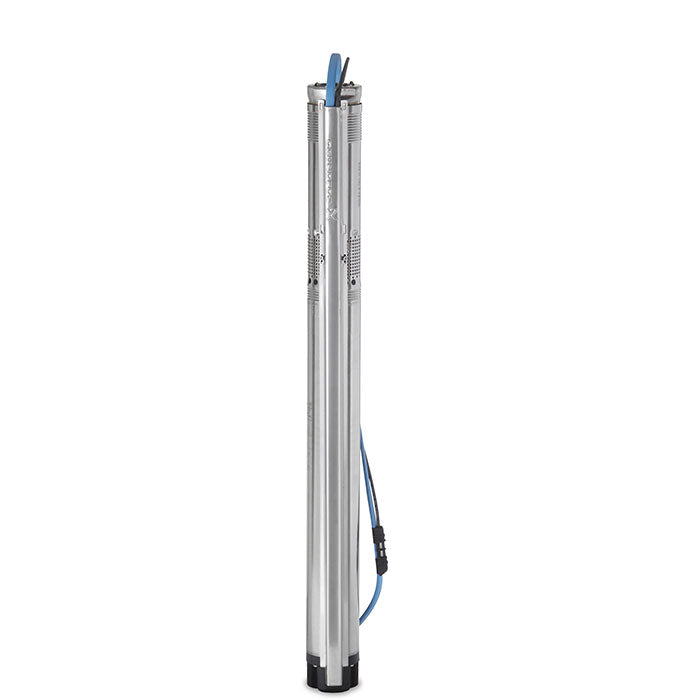

Grundfos 10SQ05-160 120 Vac 3" SQ Well Pump

Grundfos 10SQ05-160 120 Vac 3" SQ Well Pump
$879.00 - $879.00
$879.00
$879.00 - $879.00
$879.00
✓ Authorized Grundfos Dealer
✓ Lowest Price Guaranteed
✓ Brand New & FREE Shipping: In Stock Ready To Ship
✓ Questions? Talk to a Grundfros Expert: 1-303-876-7654
✓ PRICE MATCH GUARANTEE


Renewable Outdoors LLC BBB Business Review

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

Grundfos 10SQ05-160 Well Pump | 10 GPM | 1/2 HP | 160 Ft | 120 VAC

The Grundfos 10SQ05-160 is a high-performance submersible well pump engineered for dependable, long-term water delivery in residential and light commercial applications. Designed to fit 4-inch or larger well casings, this compact pump delivers a consistent 10 GPM flow rate with a 160-foot total head, making it well-suited for homes, cabins, irrigation systems, and remote water supply needs. Powered by a single-phase 120 VAC motor, the 10SQ05-160 offers straightforward installation without the need for special wiring or electrical upgrades.

Built to Grundfos' exacting global standards, the 10SQ05-160 features a stainless steel pump body and corrosion-resistant impellers that stand up to sand, sediment, and mildly aggressive water chemistry. The hermetically sealed, water-cooled motor is fully protected against contamination, ensuring reliable below-ground performance over years of continuous use. An integrated check valve prevents backflow and water hammer, safeguarding both the pump and the connected plumbing system.

The Grundfos 10SQ05-160 is a drop-in solution for new installations and retrofits alike, offering the quiet, efficient multi-stage centrifugal performance that has made Grundfos one of the most trusted names in pump technology worldwide. Whether supplying a household water system or supporting an off-grid property, the 10SQ05-160 delivers the flow, head, and durability to meet the demands of everyday residential water supply.


Grundfos 10SQ05-160-120 Specs & Features

  • Dry-running protection
  • Permanent magnet motor with high efficiency
  • Wear resistance from floating impellers
  • Protection against upthrust
  • High flow velocity
  • Soft-starts reduce wear on motor
  • Over- and under-voltage protection
  • Overload protection
  • Over-temperature protection
  • Voltage: 120 Volt
  • Running Amps: 12
  • Wire: 2-Wire
  • Thermal Protection: Yes
  • Gallons Per Minute: 10 Gallons
  • Outlet Diameter: 1-1/4 Inch
  • Self Priming: Yes
  • Pump Head Material: Stainless Steel
  • Housing Material: Stainless Steel
  • Impeller Material: Composite
  • Total Head Lift: 224 Feet
  • Discharge Port Size: 1-1/4 Inch
  • Submersible: Yes
  • Horsepower: 0.5 HP
  • Weight: 12 lbs
  • Dimensions (LxWxH): 30.4" x 2.9" x 2.9"

Your Satisfaction with Grundfos is Guaranteed:

  • 2-Year Limited Warranty
  • Lowest Price Guarantee
