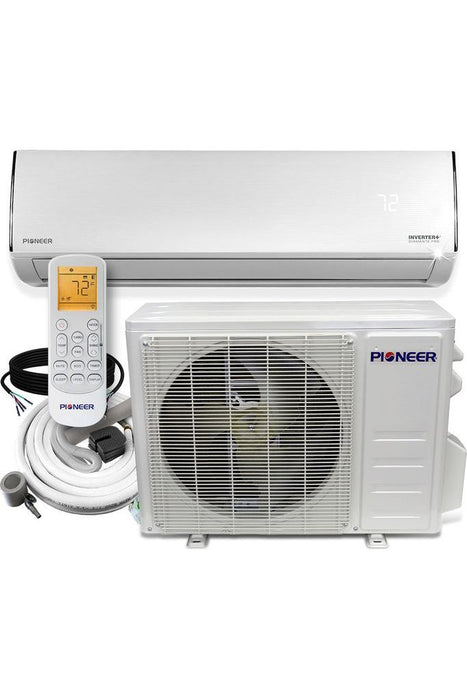

Pioneer® Diamante Pro Series 12,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit

Pioneer® Diamante Pro Series 12,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit

Sold out
$1,049.00
$1,049.00 - $1,049.00
$1,049.00
$768.00
$768.00 - $768.00
$768.00
✓ Authorized Pioneer Dealer
✓ Lowest Price Guaranteed
✓ Brand New: In Stock Ready To Ship
✓ Questions? Talk to a Pioneer Expert: 1-303-876-7654
✓ PRICE MATCH GUARANTEE


Renewable Outdoors LLC BBB Business Review

Login for Exclusive Member Pricing.
Not a member? Create a Free Account.

Overview

Summary

  • High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
  • Cooling capacity: 12,000 BTU/H with 19 SEER2 / 10 EER2 efficiency
  • Heating capacity: 12,200 BTU/H with 8.5 HSPF / 3.21 COP2 efficiency
  • Voltage: 208~230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Low Ambient Unit (-13°F)
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $83.00
    • Heating: $278.00
[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control (with wall holder and batteries)
  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Our Guarantee

  • 5 years Warranty for Parts
  • 5 years for Compressor

Features

[[FEATURES]]

Technical Information

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 3,600~13,200 BTU/h
  • Cooling SEER2: 19.0 BTU/w
  • Cooling EER2: 10.0 BTU/w
  • Heating Rated Capacity: 12,500 BTU/h
  • Heating Capacity Range: 3,6600~13,420 BTU/h
  • Heating HSPF2 (Region IV/V): 8.5 / 7.2 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.21 / 1.75 W/W
  • Refrigerant Type: R410A/34.2 oz.
  • Suitable Area: 200~450 Sq.F

Indoor Unit Data

  • Part Number: WT012GLFI19HLE
  • Air Flow (Hi/Med/Lo): 383 / 318 / 253 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 41 / 39 / 34 / 29 / 27 dB(A)
  • Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
  • Carton Dimensions (WDH): 34-7/8 x 11 x 14-3/8 Inches
  • Net / Gross Weight: 19.8 / 24.2 Lbs

Outdoor Unit Data

  • Part Number: YN012GLFI19RPE
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 51 dB(A)
  • Net Dimensions (WDH): 28-1/8 x 11-3/8 x 19-5/8 Inches
  • Carton Dimensions (WDH): 33  x 13-3/8 x 21-5/8 Inches
  • Net / Gross Weight: 57.3 / 66.3 lbs
